ADIDatasheet (PDF)

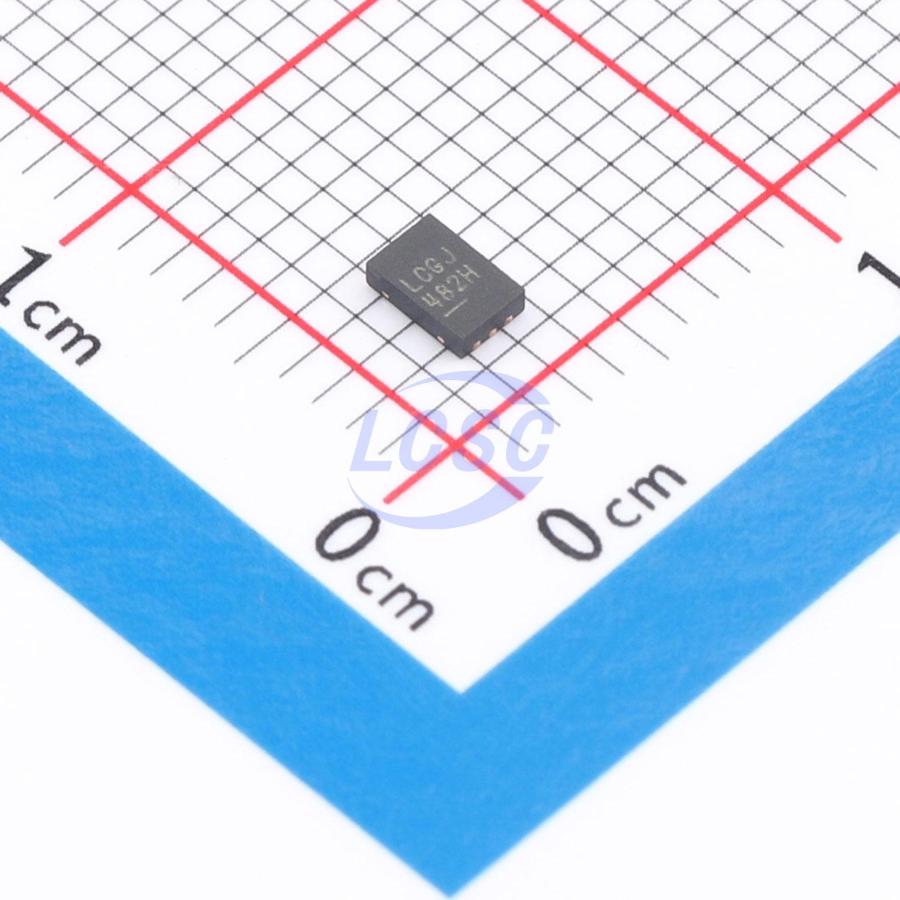

LT3493EDCB-3#TRPBF
750kHz Step-down type Adjustable 780mV~34.2V 1.2A DFN-6-EP(2x3) Voltage Regulators - DC DC Switching Regulators RoHS
DFN-6-EP(2x3)ROHS3 CompliantActive
- Manufacturer
- ADI
- Manufacturer part #
- LT3493EDCB-3#TRPBF
- Store part #
- C670740
- Package / case
- DFN-6-EP(2x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C670740
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,134.78 | ₹1,134.78 |
| 10+ | ₹1,106.69 | ₹11,066.90 |
| 30+ | ₹1,088.11 | ₹32,643.30 |
| 100+ | ₹1,069.31 | ₹1,06,931.00 |
1 × ₹1,134.78
₹1,134.78
excl. GST
₹1,339.04 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LT3493EDCB-3#TRPBF
₹1,134.78 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Number of Outputs
- 1
- Frequency - Switching
- 750kHz
- Function
- Step-down type
- Features
- Cycle-by-cycle current limiting;Load disconnect;Adjustable soft-start
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 6.8V~36V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 780mV~34.2V
- Output Current
- 1.2A
- Quiescent Current
- 1.9mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.026 g
Overview
The LT3493-3 is a current mode PWM step-down DC/DC converter with an internal 1.75A power switch. The wide operating input range of 6.8V to 36V (40V maximum) makes the LT3493-3 ideal for regulating power from a wide variety of sources, including unregulated wall transformers, 24V industrial supplies and automotive batteries. Its high operating frequency allows the use of tiny, low cost inductors and ceramic capacitors, resulting in low, predictable output ripple. Cycle-by-cycle current limit provides protection against shorted outputs and soft-start eliminates input current surge during start-up. The low current (<2μA) shutdown mode provides output disconnect, enabling easy power management in battery-powered systems.
Applications
- Automotive Battery Regulation
- Industrial Control Supplies
- Wall Transformer Regulation
- Distributed Supply Regulation
- Battery-Powered Equipment
Key features
- Wide Input Range: 6.8V to 36V Operating, 40V Maximum
- 1.2A Output Current
- Fixed Frequency Operation: 750kHz
- Output Adjustable Down to 780mV
- Short-Circuit Robust
- Uses Tiny Capacitors and Inductors
- Soft-Start
- Internally Compensated
- Low Shutdown Current: <2μA
- Low VCESAT Switch: 330mV at 1A
- Thermally Enhanced, Low Profile 2mm×3mm DFN-6 Package
