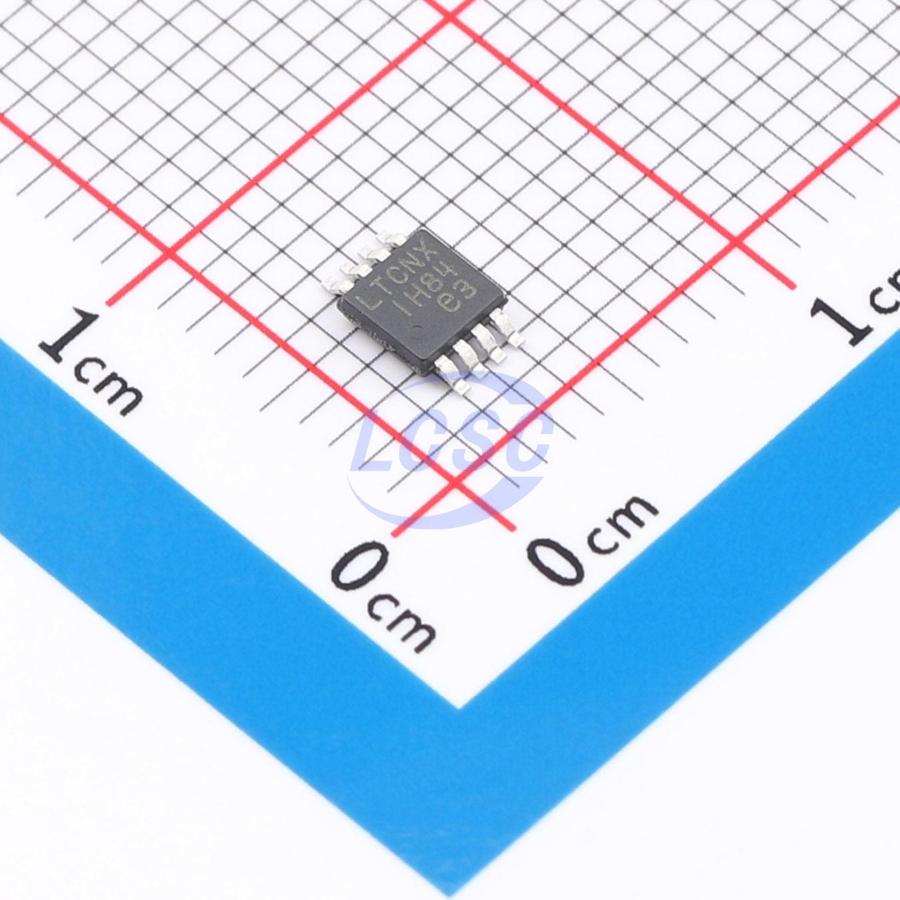

ADI

LT3505EMS8E#PBF

200kHz~3MHz Step-down type Adjustable 780mV~36V 1.2A MSOP-8 Voltage Regulators - DC DC Switching Regulators RoHS

MSOP-8ROHS3 CompliantActive

1.2A, Step-Down Switching Regulator in 3mm × 3mm DFN

Manufacturer: ADI
Manufacturer part #: LT3505EMS8E#PBF
Store part #: C580091
Package / case: MSOP-8
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

11 in stock

#C580091

Stock & price checked 10 days ago

Quantity	Unit price	Pack price
1+	₹895.05	₹895.05
10+	₹769.89	₹7,698.90
30+	₹693.40	₹20,802.00
100+	₹629.30	₹62,930.00

Quantity (min 1)

1 × ₹895.05

₹895.05

excl. GST

₹1,056.16 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 50 per tube

LT3505EMS8E#PBF

₹895.05 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃@(TA)
Frequency - Switching: 200kHz~3MHz
Function: Step-down type
Number of Outputs: 1
Features: Cycle-by-cycle current limiting;Load disconnect;External compensation
Output Type: Adjustable
Topology: Buck
Operating Voltage: 3.6V~36V
Switch tube (built-in/external): Built-in
Output Voltage: 780mV~36V
Output Current: 1.2A
Quiescent Current: 2.7mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tube-packed
Standard pack: 50 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 0.07 g

Overview

The LT3505 is a current mode PWM step-down DC/DC converter with an internal 1.4A power switch. The wide operating input range of 3.6 to 36V (40V maximum) makes the LT3505 ideal for regulating power from a wide variety of sources, including unregulated wall transformers, 24V industrial supplies and automotive batteries. The oscillator can be programmed for high frequency operation allowing the use of tiny, low cost external components or it can be programmed for lower frequency operation to maximize efficiency. Cycle-by-cycle current limit provides protection against shorted outputs and soft-start eliminates input current surge during start-up. The low current (<2μA) shutdown mode provides output disconnect, enabling easy power management in battery-powered systems.

Applications

Automotive Battery Regulation
Industrial Control Supplies
Wall Transformer Regulation
Distributed Supply Regulation
Battery-Powered Equipment

Key features

Wide Input Range: 3.6V to 36V Operating, 40V Maximum
Up to 1.2A Output Current
Resistor-Programmable Fixed-Frequency Operation from 200kHz to 3MHz
Output Adjustable Down to 780mV
Short-Circuit Robust
Uses Tiny Capacitors and Inductors
Soft-Start
Low Shutdown Current: <2μA
Low VCESAT Switch: 350mV at 1A
Thermally Enhanced, Low Profile 3mm x 3mm DFN-8 and MSOP-8 Packages

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
NJW4161R-C-TE1#C3191340Nisshinbo Micro Devices Inc. · MSOP-8-2.8mm	Nisshinbo Micro Devices Inc.	MSOP-8-2.8mm	On request	₹205.37 · 0 in stock	View
NJW4161R-B-TE1#C3191343Nisshinbo Micro Devices Inc. · MSOP-8-2.8mm	Nisshinbo Micro Devices Inc.	MSOP-8-2.8mm	On request	₹205.37 · 0 in stock	View
NJW4161R-A-TE1#C3191344Nisshinbo Micro Devices Inc. · MSOP-8-2.8mm	Nisshinbo Micro Devices Inc.	MSOP-8-2.8mm	On request	₹205.37 · 0 in stock	View
