ADIDatasheet (PDF)

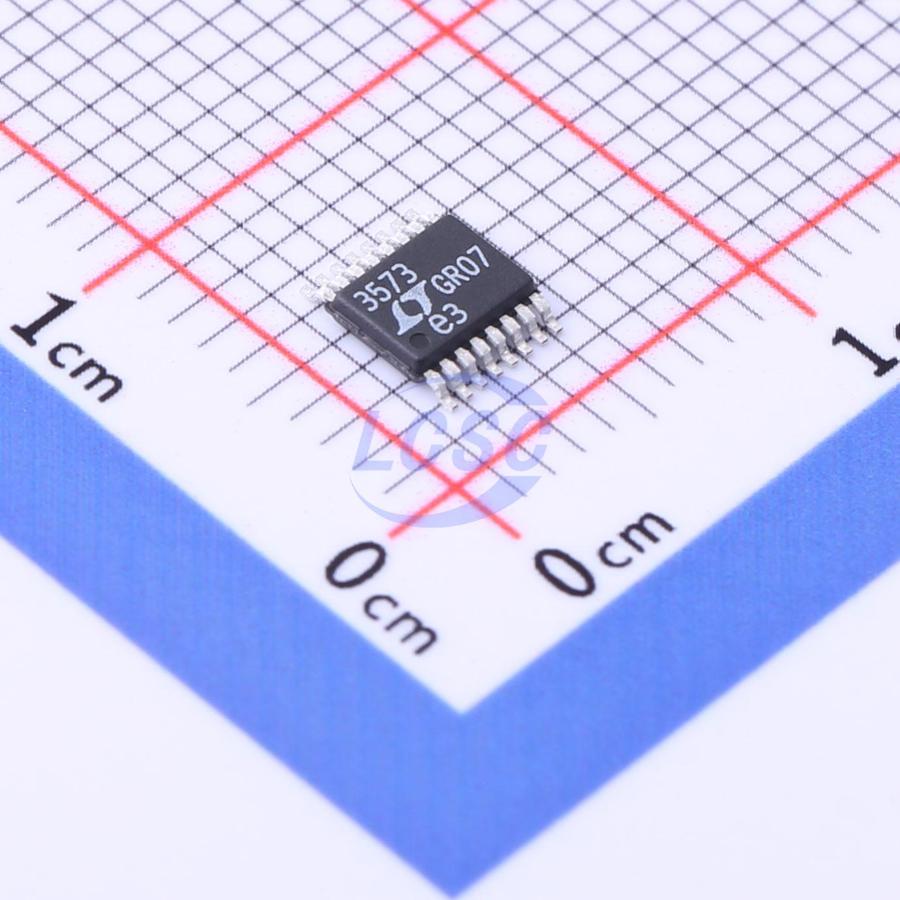

LT3573IMSE#TRPBF
40kHz~305kHz 60V 1.25A MSOP-16-EP Voltage Regulators - DC DC Switching Regulators RoHS
MSOP-16-EPROHS3 CompliantActive
Isolated Flyback Converter without an Opto-Coupler
- Manufacturer
- ADI
- Manufacturer part #
- LT3573IMSE#TRPBF
- Store part #
- C670933
- Package / case
- MSOP-16-EP
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
101 in stock
#C670933
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,262.29 | ₹1,262.29 |
| 10+ | ₹1,103.66 | ₹11,036.60 |
| 30+ | ₹877.66 | ₹26,329.80 |
| 100+ | ₹796.62 | ₹79,662.00 |
1 × ₹1,262.29
₹1,262.29
excl. GST
₹1,489.50 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LT3573IMSE#TRPBF
₹1,262.29 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Frequency - Switching
- 40kHz~305kHz
- Features
- Adjustable soft-start;Adjustable current limiting;Under-voltage lockout;Over Voltage Protection;Short Circuit Protection;Overtemperature protection (OTP);Over Current Protection
- Topology
- Flyback
- Feedback System
- Primary-side feedback
- Operating Voltage
- 3V~40V
- Output Voltage
- 60V
- Output Current
- 1.25A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.2 g
Overview
The LT3573 is a monolithic switching regulator specifically designed for the isolated flyback topology. No third winding or opto-isolator is required for regulation. The part senses the isolated output voltage directly from the primary-side flyback waveform. A 1.25A, 60V NPN power switch is integrated along with all control logic into a 16‑lead MSOP package. The LT3573 operates with input supply voltages from 3V to 40V, and can deliver output power up to 7W with no external power devices. The LT3573 utilizes boundary mode operation to provide a small magnetic solution with improved load regulation.
Applications
- Industrial, Automotive and Medical Isolated Power Supplies
Key features
- 3V to 40V Input Voltage Range
- 1.25A, 60V Integrated NPN Power Switch
- Boundary Mode Operation
- No Transformer Third Winding or Opto-Isolator Required for Regulation
- Improved Primary-Side Winding Feedback Load Regulation
- VOUT Set with Two External Resistors
- BIAS Pin for Internal Bias Supply and Power NPN Driver
- Programmable Soft-Start
- Programmable Power Switch Current Limit
- Thermally Enhanced 16-Lead MSOP
