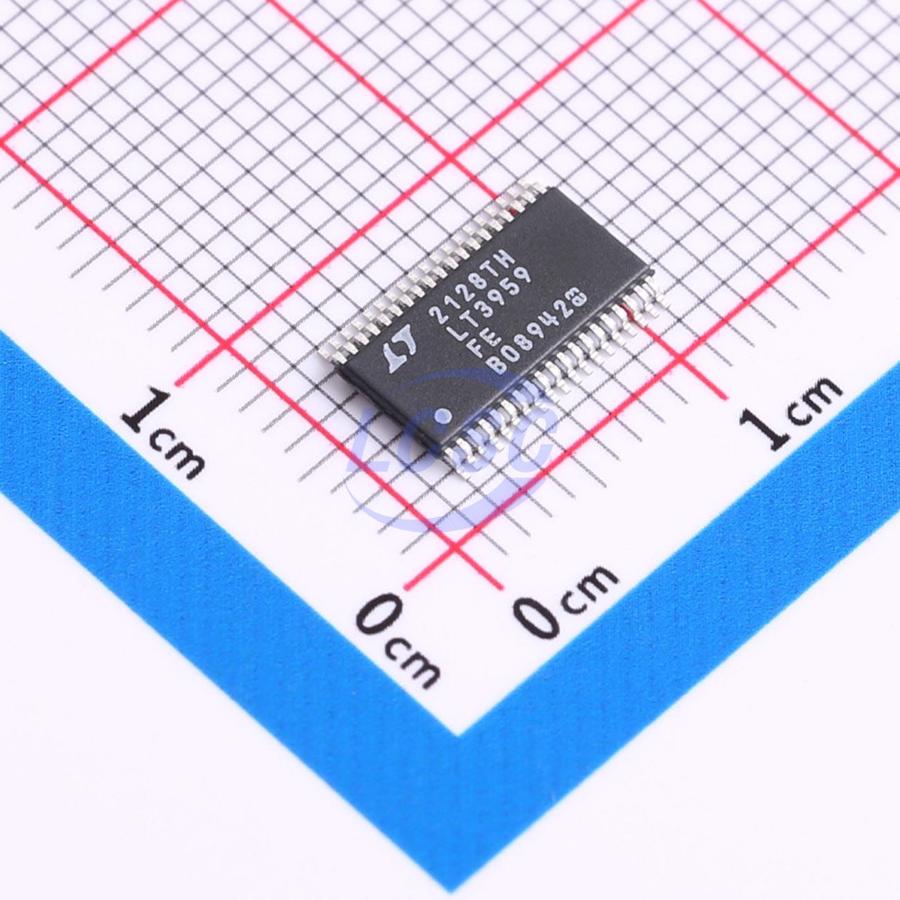

LT3959EFE#PBF

The LT3959 is a wide input range, current mode, DC/DC controller which is capable of regulating either positive or negative output voltages from a single feedback pin. It can be configured as a boost, SEPIC or inverting converter. It features an internal low side N-channel MOSFET rated for 6A at 40V and driven from an internal regulated supply provided from VIN or DRIVE. The fixed frequency, current-mode architecture results in stable operation over a wide range of supply and output voltages. The operating frequency of LT3959 can be set over a 100kHz to 1MHz range with an external resistor, or can be synchronized to an external clock using the SYNC pin. The LT3959 features soft-start and frequency foldback functions to limit inductor current during start-up and output short-circuit. A window comparator on the FBX pin reports via the PGOOD pin, providing output voltage status indication.

Applications

• Automotive
• Telecom
• Industrial

Key features

• Wide VIN Range: 1.6V (2.5V Start-Up) to 40V
• Positive or Negative Output Voltage Programming with a Single Feedback Pin
• PGOOD Output Voltage Status Report
• Internal 6A/40V Power Switch
• Programmable Soft-Start
• Programmable Operating Frequency (100kHz to 1MHz) with One External Resistor
• Synchronizable to an External Clock
• Low Shutdown Current < 1µA
• INTVCC Regulator Supplied from VIN or DRIVE
• Programmable Input Undervoltage Lockout with Hysteresis
• Thermally Enhanced QFN (5mm×6mm) and TSSOP Packages
