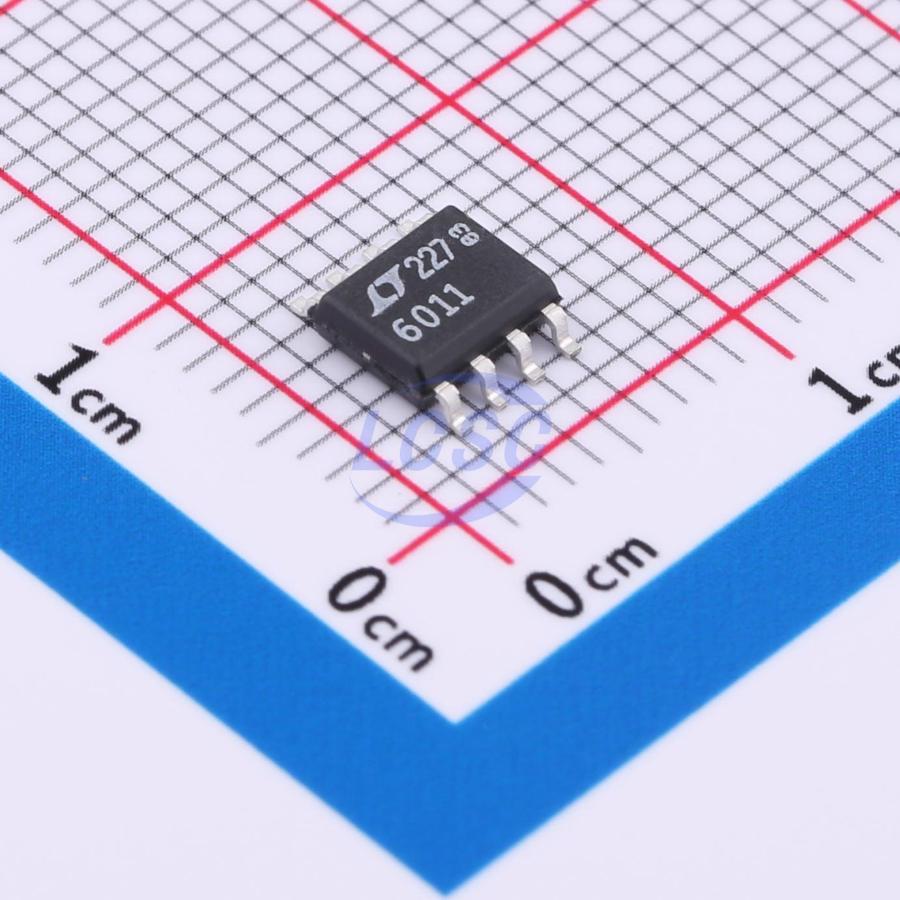

ADI

LT6011CS8#PBF

15mA 2 125uV 0.06V/us 135dB 150nA 135uA 250kHz Rail-to-rail output SO-8 Instrumentation, Op Amps, Buffer Amps RoHS

SO-8ROHS3 CompliantActive

Dual/Quad 135uA, 14nV/√Hz Rail-to-Rail Output Precision Op Amp

Manufacturer: ADI
Manufacturer part #: LT6011CS8#PBF
Store part #: C672725
Package / case: SO-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

12 in stock

#C672725

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
1+	₹993.86	₹993.86
10+	₹845.79	₹8,457.90
30+	₹755.57	₹22,667.10
100+	₹679.90	₹67,990.00

Quantity (min 1)

1 × ₹993.86

₹993.86

excl. GST

₹1,172.75 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 100 per tube

LT6011CS8#PBF

₹993.86 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 15mA
Number of Channels: 2
Vos - Input Offset Voltage: 125uV
Slew Rate: 0.06V/us
Input Offset Current(Ios): 1.5nA
Operating Temperature: 0℃~+70℃
Common Mode Rejection Ratio(CMRR): 135dB
Ib - Input Bias Current: 150nA
Input Offset Voltage Drift(Vos TC): 800nV/℃
Quiescent Current: 135uA
Gain Bandwidth Product: 250kHz
Features: Reverse-phase input protection
Input Voltage Noise Density: 14nV/√Hz@1kHz
Dual Supply: -18V~-2.7V;2.7V~18V
Rail to Rail: Rail-to-rail output
Single Supply: 2.7V~36V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tube-packed
Standard pack: 100 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 0.263 g

Overview

The LT6011/LT6012 op amps combine low noise and high precision input performance with low power consumption and rail-to-rail output swing. Input offset voltage is trimmed to less than 60µV. The low drift and excellent long-term stability guarantee a high accuracy over temperature and time. The 300pA maximum input bias current and 120dB minimum voltage gain further maintain this precision over operating conditions. The LT6011/LT6012 work on any power supply voltage from 2.7V to 36V and draw only 135µA of supply current on a 5V supply. The output swings to within 40mV of either supply rail, making the amplifier a good choice for low voltage single supply applications. The LT6011/LT6012 are specified at 5V and ±15V supplies and from -40°C to 85°C. The LT6011 (dual) is available in SO-8, MS8 and space saving 3mm×3mm DFN packages. The LT6012 (quad) is available in SO-14 and 16-pin SSOP packages.
