ADIDatasheet (PDF)

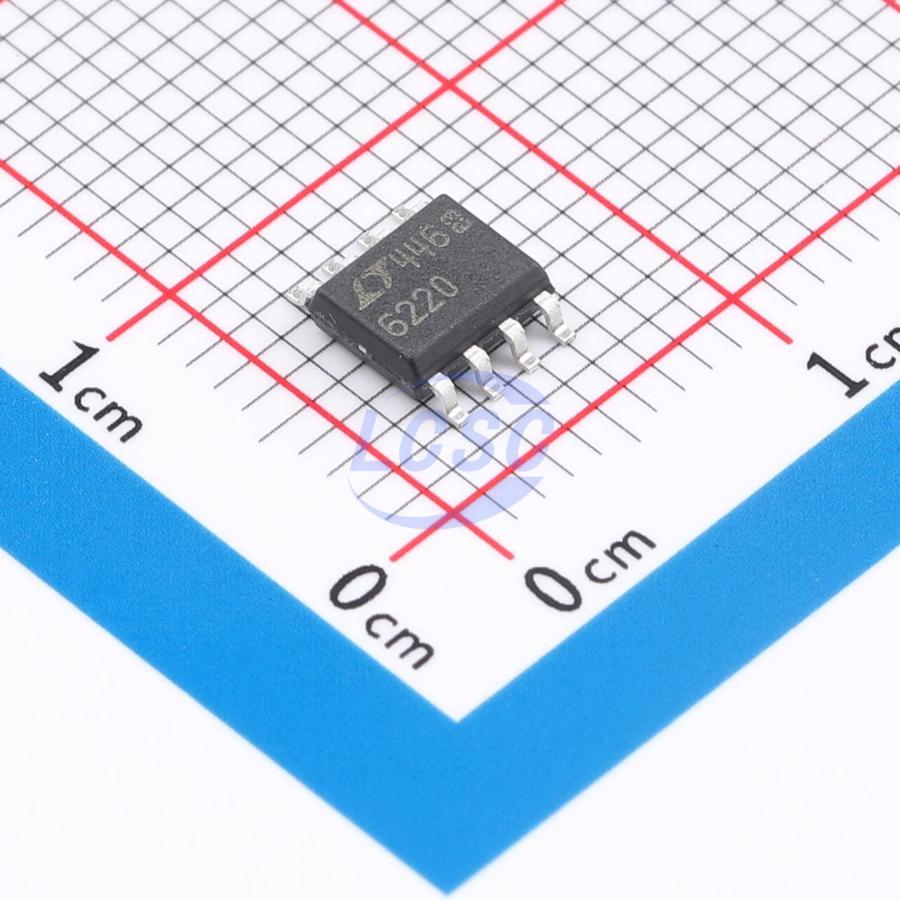

LT6220CS8#PBF
50mA 1 350uV 20V/us 102dB 150nA 1mA 60MHz Rail-to-Rail Input, Rail-to-Rail Output SO-8 Instrumentation, Op Amps, Buffer Amps RoHS
SO-8ROHS3 CompliantActive
Single/Dual/Quad 60MHz, Low Power, Rail-to-Rail Input and Output Precision Op Amps
- Manufacturer
- ADI
- Manufacturer part #
- LT6220CS8#PBF
- Store part #
- C672998
- Package / case
- SO-8
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11 in stock
#C672998
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹713.18 | ₹713.18 |
| 10+ | ₹695.36 | ₹6,953.60 |
| 30+ | ₹683.62 | ₹20,508.60 |
| 100+ | ₹671.89 | ₹67,189.00 |
1 × ₹713.18
₹713.18
excl. GST
₹841.55 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 100 per tube
LT6220CS8#PBF
₹713.18 for 1 + GST
Specifications
- Output Current
- 50mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 350uV
- Slew Rate
- 20V/us
- Input Offset Current(Ios)
- 250nA
- Operating Temperature
- 0℃~+70℃
- Common Mode Rejection Ratio(CMRR)
- 102dB
- Ib - Input Bias Current
- 150nA
- Input Offset Voltage Drift(Vos TC)
- 1.5uV/℃
- Quiescent Current
- 1mA
- Gain Bandwidth Product
- 60MHz
- Features
- Reverse-phase input protection
- Input Voltage Noise Density
- 10nV/√Hz@10kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.2V~12.6V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 100 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.7 g
Overview
Single/Dual/Quad 60MHz, 20V/µs, Low Power, Rail-to-Rail Input and Output Precision Op Amps
Applications
- Low Voltage, High Frequency Signal Processing
- Driving A/D Converters
- Rail-to-Rail Buffer Amplifiers
- Active Filters
- Video Amplifiers
- Fast Current Sensing Amplifiers
Key features
- Gain Bandwidth Product: 60MHz
- Input Common Mode Range Includes Both Rails
- Output Swings Rail-to-Rail
- Low Quiescent Current: 1mA Max
- Input Offset Voltage: 350µV Max
- Input Bias Current: 150nA Max
- Wide Supply Range: 2.2V to 12.6V
- Large Output Current: 50mA Typ
- Low Voltage Noise: 10nV√Hz Typ
- Slew Rate: 20V/µs Typ
- Common Mode Rejection: 102dB Typ
- Power Supply Rejection: 105dB Typ
- Open-Loop Gain: 100V/mV Typ
- Operating Temperature Range: -40°C to 85°C
- Single in the 8-Lead SO and 5-Lead Low Profile (1mm) ThinSOT Packages
- Dual in the 8-Lead SO and (3mm×3mm) DFN Packages
- Quad in the 16-Lead SSOP Package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| LT1800IS8#PBF#C665335ADI · SOIC-8 | ADI | SOIC-8 | 15 | ₹1,240.91 · 15 in stock | View | |
| LT1800IS8#TRPBF#C665336ADI · SOIC-8 | ADI | SOIC-8 | On request | ₹384.11 · 0 in stock | View | |
| LT1800CS8#TRPBF#C665332ADI · SOIC-8 | ADI | SOIC-8 | On request | ₹326.93 · 0 in stock | View | |
