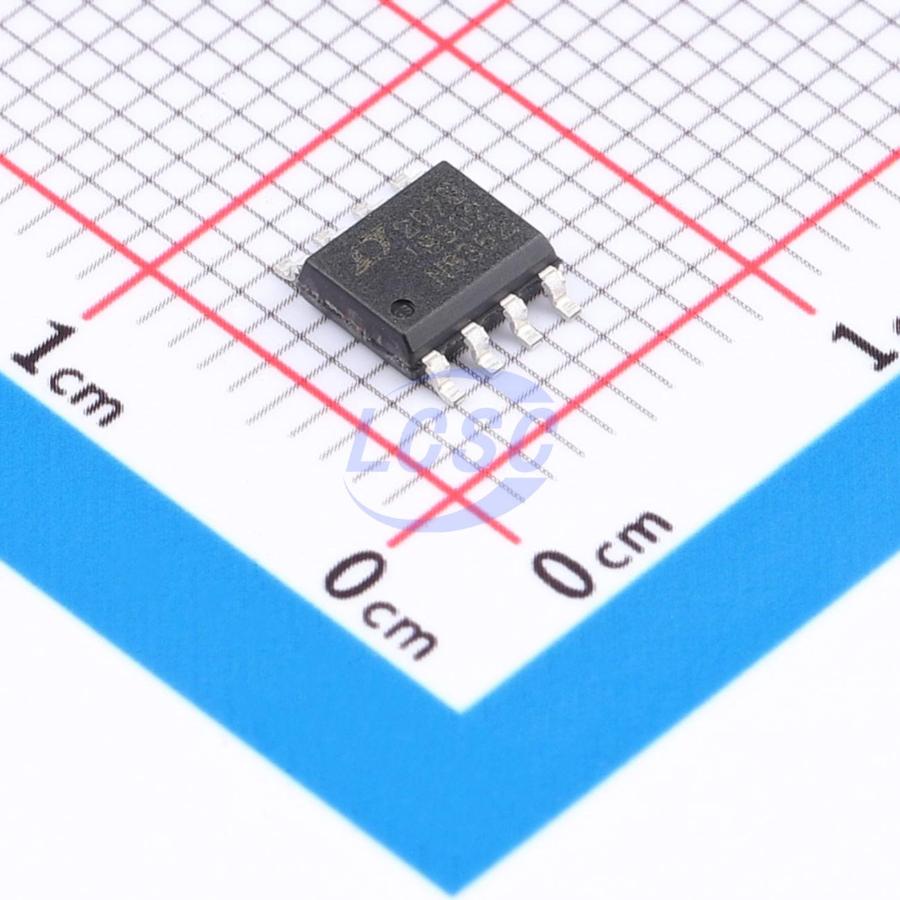

LT8302IS8E#PBF

12kHz~380kHz Adjustable 3.6A SOIC-8-EP Voltage Regulators - DC DC Switching Regulators RoHS

SOIC-8-EPROHS3 CompliantActive

42Vin Micropower No-Opto Isolated Flyback Converter with 65V/3.6A Switch

Manufacturer: ADI
Manufacturer part #: LT8302IS8E#PBF
Store part #: C673679
Package / case: SOIC-8-EP
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

26 in stock

#C673679

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
1+	₹1,443.90	₹1,443.90
10+	₹1,239.47	₹12,394.70
30+	₹1,114.71	₹33,441.30
100+	₹1,010.43	₹1,01,043.00

Quantity (min 1)

1 × ₹1,443.90

₹1,443.90

excl. GST

₹1,703.80 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 100 per tube

LT8302IS8E#PBF

₹1,443.90 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Frequency - Switching: 12kHz~380kHz
Number of Outputs: 1
Features: Light load efficient mode;Overcurrent Protection;Built-in LDO regulator
Topology: Flyback
Output Type: Adjustable
Operating Voltage: 2.8V~42V
Switch tube (built-in/external): Built-in
Output Current: 3.6A
Quiescent Current: 106uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tube-packed
Standard pack: 100 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 0.417 g

Overview

The LT8302/LT8302-3 is a monolithic micropower isolated flyback converter. By sampling the isolated output voltage directly from the primary-side flyback waveform, the part requires no third winding or opto-isolator for regulation. The output voltage is programmed with two external resistors and a third optional temperature compensation resistor. Boundary mode operation provides a small magnetic solution with excellent load regulation. Low ripple Burst Mode operation maintains high efficiency at light load while minimizing the output voltage ripple. A 3.6A, 65V DMOS power switch is integrated along with all the high voltage circuitry and control logic into a thermally enhanced 8-lead SO package. The LT8302/LT8302-3 operates from an input voltage range of 3V to 42V and delivers up to 18W of isolated output power. The high level of integration and the use of boundary and low ripple burst modes result in a simple to use, low component count, and high efficiency application solution for isolated power delivery.

Applications

Isolated Automotive, Industrial, Medical Power Supplies
Isolated Auxiliary/Housekeeping Power Supplies

Key features

3V to 42V Input Voltage Range
3.6A, 65V Internal DMOS Power Switch
Low Quiescent Current: 106μA in Sleep Mode, 380μA in Active Mode
Quasi-Resonant Boundary Mode Operation at Heavy Load
Low Ripple Burst Mode Operation at Light Load
Minimum Load <0.5% (Typ) of Full Output
No Transformer Third Winding or Opto-Isolator Required for Output Voltage Regulation
Accurate EN/UVLO Threshold and Hysteresis
Internal Compensation and Soft-Start
Temperature Compensation for Output Diode
Output Short-Circuit Protection
Thermally Enhanced 8-Lead SO Package
AEC-Q100 Qualified for Automotive Applications
