ADIDatasheet (PDF)

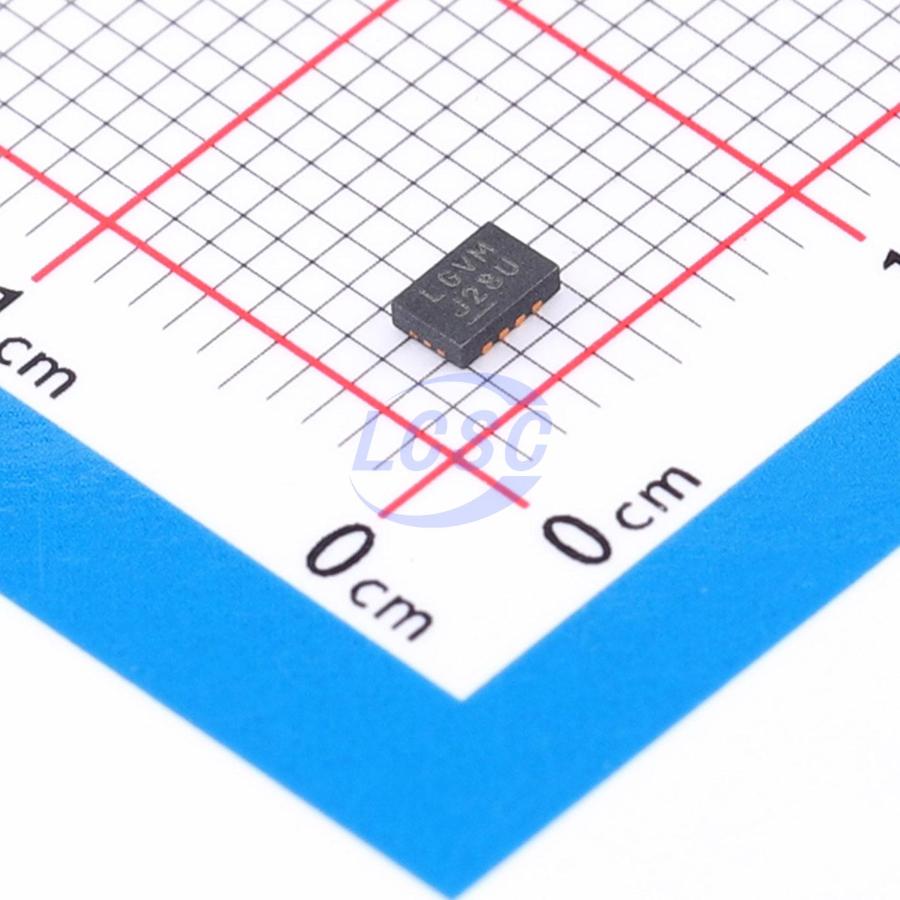

LT8335IDDB#TRMPBF
1.8MHz~2.2MHz Boost Adjustable 2A DFN-8-EP(2x3) Voltage Regulators - DC DC Switching Regulators
DFN-8-EP(2x3)RoHSActive
Low IQ Boost/SEPIC/ Inverting Converter with 2A, 28V Switch
- Manufacturer
- ADI
- Manufacturer part #
- LT8335IDDB#TRMPBF
- Store part #
- C673756
- Package / case
- DFN-8-EP(2x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C673756
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹3,050.28 | ₹3,050.28 |
| 30+ | ₹2,911.53 | ₹87,345.90 |
1 × ₹3,050.28
₹3,050.28
excl. GST
₹3,599.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 500 per reel
LT8335IDDB#TRMPBF
₹3,050.28 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 1.8MHz~2.2MHz
- Function
- Boost
- Number of Outputs
- 1
- Features
- Light load efficient mode;Built-in LDO regulator
- Output Type
- Adjustable
- Topology
- SEPIC;Inverting
- Operating Voltage
- 3V~25V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 2A
- Quiescent Current
- 6uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.56 g
Overview
The LT(p3335) is a current mode DC/DC converter capable of generating either positive or negative output voltages using a single feedback pin. It can be configured as a boost, SEPIC or inverting converter consuming as low as 6µA of quiescent current. Low ripple Burst Mode operation maintains high efficiency down to very low output currents while keeping the output ripple below 15mV in a typical application. The internally compensated current mode architecture results in stable operation over a wide range of input and output voltages. Integrated soft-start and frequency foldback functions are included to control inductor current during start-up. The 2MHz operation combined with the small 8-lead DFN package, enables low cost, area efficient solutions.
Applications
- Industrial and Automotive
- Telecom
- Medical Diagnostic Equipment
- Portable Electronics
Key features
- 3V to 25V Input Voltage Range
- Ultralow Quiescent Current and Low Ripple Burst Mode Operation: l₀ = 6µA
- 2A, 28V Power Switch
- Positive or Negative Output Voltage Programming with a Single Feedback Pin
- Fixed 2MHz Switching Frequency
- Programmable Undervoltage Lockout (UVLO)
- Internal Compensation and Soft-Start
- Low Profile (0.75mm) 8-Lead (3mm×2mm) DFN Package
