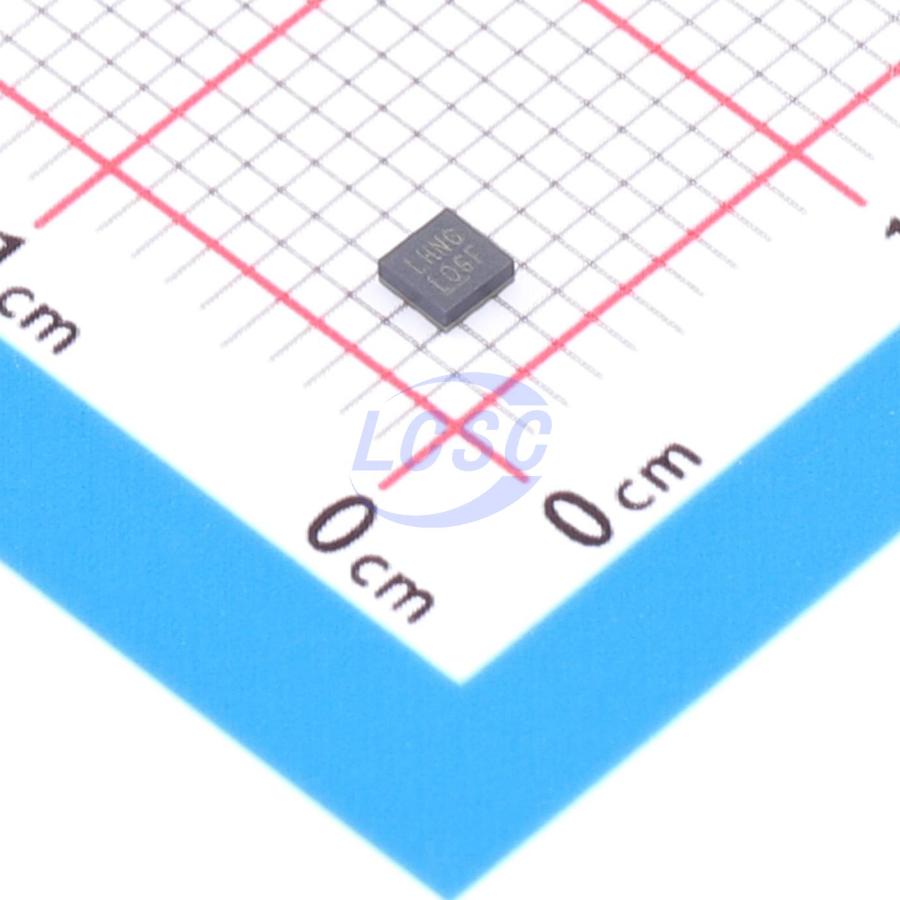

LT8618CAV#TRPBF

200kHz~2.2MHz Step-down type Adjustable 778mV~60V 100mA LQFN-12(2x2) Voltage Regulators - DC DC Switching Regulators RoHS

LQFN-12(2x2)ROHS CompliantActive

High Efficiency 65V/100mA Synchronous Bucks

Manufacturer: ADI
Manufacturer part #: LT8618CAV#TRPBF
Store part #: C3187780
Package / case: LQFN-12(2x2)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

8 in stock

#C3187780

Stock & price checked 8 days ago

Quantity	Unit price	Pack price
1+	₹1,058.49	₹1,058.49
10+	₹1,033.66	₹10,336.60
30+	₹1,017.04	₹30,511.20
100+	₹1,000.41	₹1,00,041.00

Quantity (min 1)

1 × ₹1,058.49

₹1,058.49

excl. GST

₹1,249.02 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

LT8618CAV#TRPBF

₹1,058.49 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Frequency - Switching: 200kHz~2.2MHz
Function: Step-down type
Number of Outputs: 1
Features: Adjustable soft-start;Output voltage tracking;Frequency synchronization;EMI optimization (spread spectrum);Light load efficient mode;Operating status indication
Output Type: Adjustable
Topology: Buck
Operating Voltage: 3.4V~60V
Switch tube (built-in/external): Built-in
Output Voltage: 778mV~60V
Output Current: 100mA
Quiescent Current: 2.5uA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.216 g

Overview

The LT8618 family are compact, high speed synchronous monolithic step-down switching regulators that deliver up to 100mA to the output with high efficiency at a constant frequency, even up to 2.2MHz. They accept a wide input voltage range up to 65V (transients only, 60V for continuous operation), and consume only 2.5μA of quiescent current when operating in Burst Mode. Top and bottom power switches are included with all necessary circuitry to minimize the need for external components. The LT8618C includes BST and INTVCC ceramic capacitors for a more compact solution while having SYNC/MODE and HYST pins. The SYNC/MODE pin selects the regulator’s operation between forced continuous mode, for predictive interference in sampling systems, Burst Mode, for increased efficiency at light loads or spread spectrum for Low EMI. It also allows synchronization to an external clock to further increase signal to noise ratio in high-resolution acquisition systems. A PG flag signals when VOUT is within ±7.5% of the programmed output voltage and when in fault conditions. Thermal shutdown provides additional protection.

Applications

Industrial Sensors
Industrial Internet of Things
4mA to 20mA Current Loops
Flow Meters
Automotive Housekeeping Supplies

Key features

High Efficiency Synchronous Operation
>90% Efficiency at 30mA, 12VIN to 3.3VOUT
Pin Selectable Forced Continuous or Burst Mode Operation (LT8618C Only)
Ultralow Quiescent Current Burst Mode Operation
<2.5μA IQ Regulating 48VIN to 3.3VOUT
Output Ripple < 10mVP-P
3.4V to 60V Input Operation Range (65V Max)
Fast Minimum Switch-On Time: 35ns
Adjustable (All) And Synchronizable (LT8618C Only) Switching Frequency: 200kHz to 2.2MHz
Fixed 3.3V Output Voltage Version (LT8618-3.3)
Accurate 1V Enable Pin Threshold (All) with Adjustable Hysteresis (LT8618C Only)
Internal Compensation
Output Soft-Start and Tracking
Small 12-Lead 2mm × 2mm LQFN (LT8618C) and 10-Lead 3mm × 2mm DFN Packages
AEC-Q100 Qualified for Automotive Applications (LT8618/LT8618-3.3)
