ADI

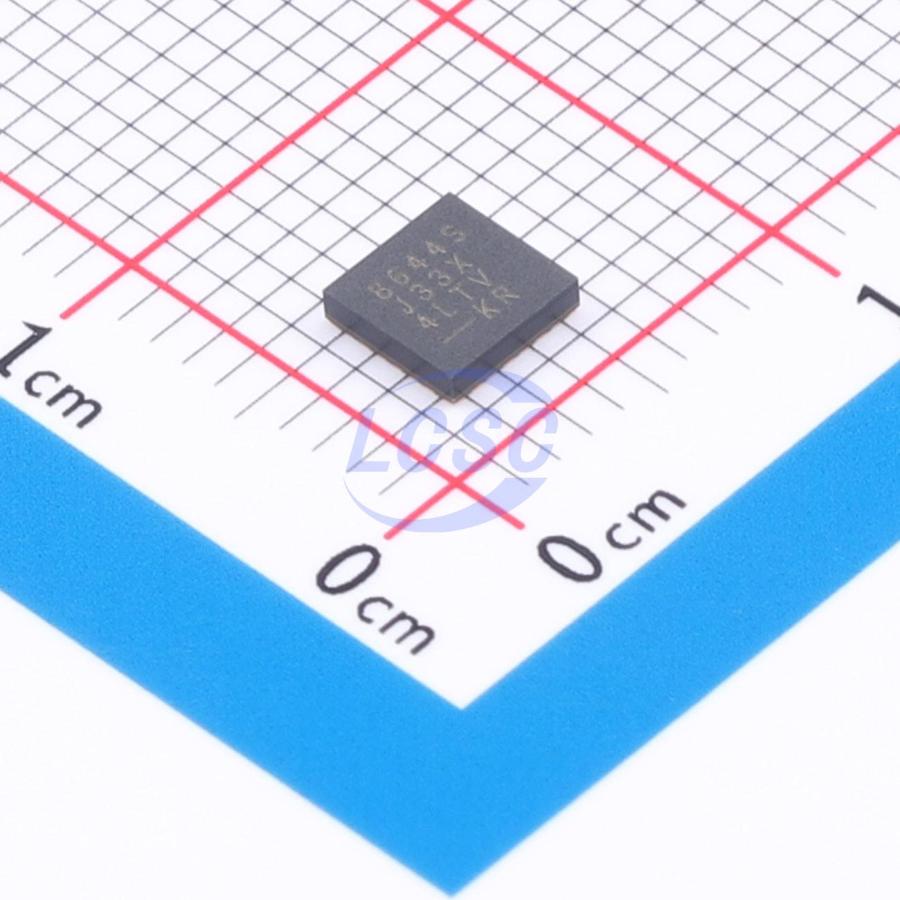

LT8644SIV#TRMPBF

Buck Switching Regulator IC Adjustable 0.6V~8V 1 Output 16A LQFN-24(4x4)

LQFN-24(4x4)ROHS CompliantActive

8V 16A Synchronous Step-Down Silent Switcher 2

Manufacturer: ADI
Manufacturer part #: LT8644SIV#TRMPBF
Store part #: C3188757
Package / case: LQFN-24(4x4)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

7 in stock

#C3188757

Stock & price checked 8 days ago

Quantity	Unit price	Pack price
1+	₹1,059.11	₹1,059.11
10+	₹1,034.12	₹10,341.20
30+	₹1,017.39	₹30,521.70
100+	₹1,000.65	₹1,00,065.00

Quantity (min 1)

1 × ₹1,059.11

₹1,059.11

excl. GST

₹1,249.75 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 500 per reel

LT8644SIV#TRMPBF

₹1,059.11 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Frequency - Switching: 300kHz~3.5MHz
Function: Step-down type
Number of Outputs: 1
Features: EMI optimization (spread spectrum);Frequency synchronization;External compensation;Light load efficient mode;Adjustable soft-start;Operating status indication
Output Type: Adjustable
Topology: Buck
Operating Voltage: 1.5V~8V
Switch tube (built-in/external): Built-in
Output Current: 16A
Output Voltage: 600mV~8V
Quiescent Current: 180uA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.06 g

Overview

The LT8644S synchronous step-down regulator features second generation Silent Switcher architecture designed to minimize EMI emissions while delivering high efficiency at high switching frequencies. This includes the integration of bypass capacitors to optimize all the fast current loops inside and make it easy to achieve advertised EMI performance by eliminating layout sensitivity. The fast, clean, low-overshoot switching edges enable high efficiency operation even at high switching frequencies, leading to a small overall solution size. Peak current mode control with a 20ns minimum on-time allows high step down ratios even at high switching frequencies. External compensation via the V0 pin allows for fast transient response. PolyPhase operation allows multiple LT8644S regulators to run with interleaving phase shift to provide more output current. Burst Mode operation enables low standby current consumption, forced continuous mode can control frequency harmonics across the entire output load range, or spread spectrum operation can further reduce EMI emissions. Soft-start and tracking functionality is accessed via the SS pin, and an accurate input voltage UVLO threshold can be set using the EN/UV pin.
