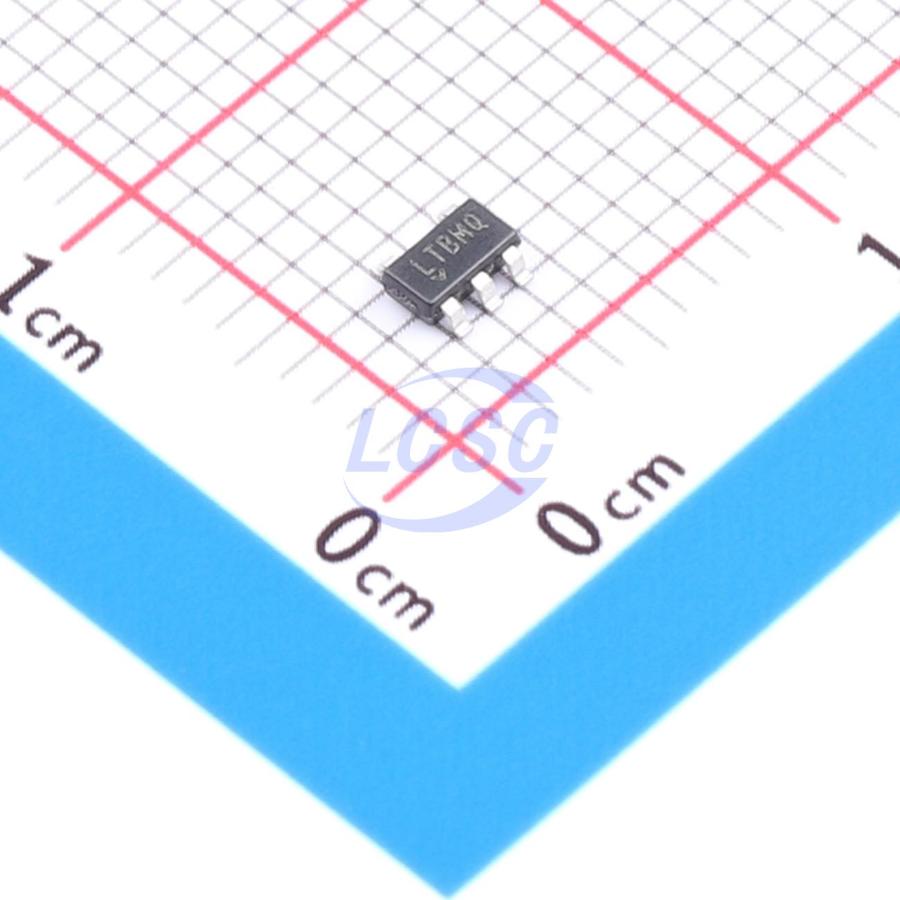

LTC3406ES5-1.2#TRMPBF

The LTC3406-1.2 is a high efficiency monolithic synchronous buck regulator using a constant frequency, current mode architecture. Supply current during operation with only 20μA drops <1μA in shutdown. The 2.5V to 5.5V input voltage range makes the LTC3406-1.2 ideally suited for single Li-Ion battery-powered applications. 100% duty cycle provides low dropout operation, extending battery life in portable systems. Automatic Burst Mode operation further increases efficiency at light loads. Switching frequency is internally set at 1.5MHz, allowing the use of small surface mount inductors and capacitors. The internal synchronous switch increases efficiency and eliminates the need for an external Schottky diode. The LTC3406-1.2 is available in a low profile (1mm) ThinSOT package.

Applications

• Cellular Telephones
• Personal Information Appliances
• Wireless and DSL Modems
• Digital Still Cameras
• MP3 Players
• Portable Instruments

Key features

• High Efficiency: Up to 90%
• Very Low Quiescent Current: Only 2μA
• 600mA Output Current at VIN=3V
• 2.5V to 5.5V Input Voltage Range
• 1.5MHz Constant Frequency Operation
• No Schottky Diode Required
• Shutdown Mode Draws <1μA Supply Current
• Current Mode Operation for Excellent Line and Load Transient Response
• Overtemperature Protected
• Low Profile (1mm) ThinSOT Package
