ADIDatasheet (PDF)

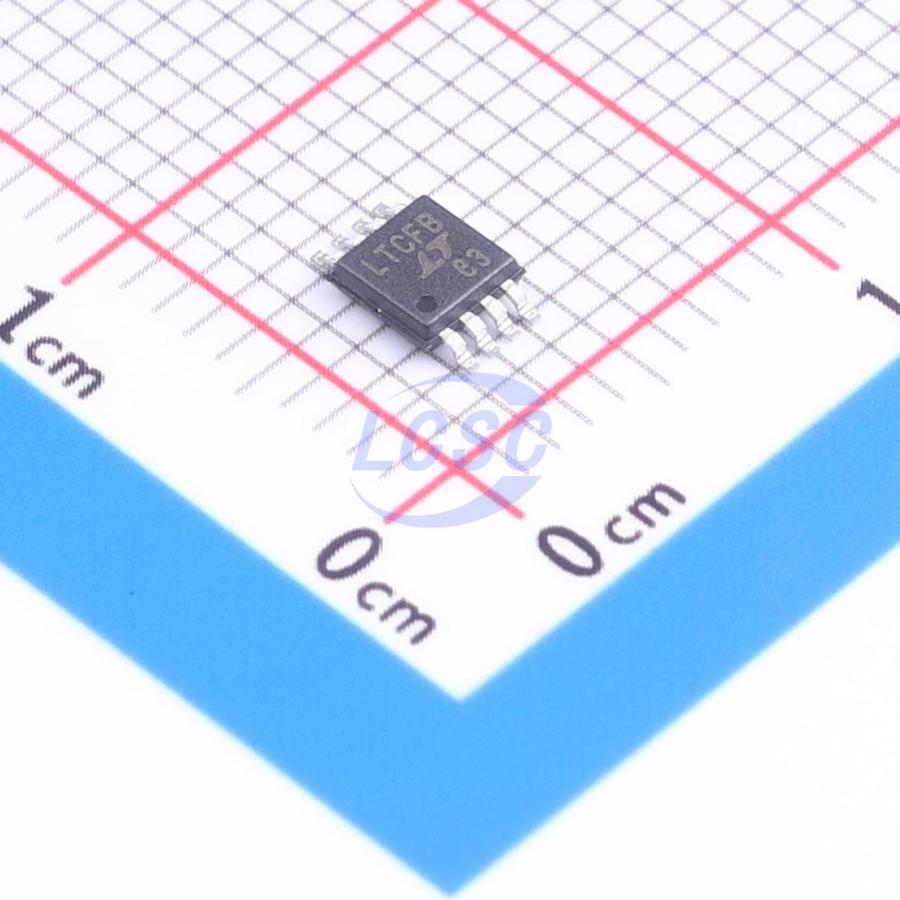

LTC3499BEMS8#PBF
1.2MHz Boost Adjustable 750mA 2V~6V MSOP-8 Voltage Regulators - DC DC Switching Regulators RoHS
MSOP-8ROHS3 CompliantActive
- Manufacturer
- ADI
- Manufacturer part #
- LTC3499BEMS8#PBF
- Store part #
- C684830
- Package / case
- MSOP-8
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C684830
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,243.92 | ₹1,243.92 |
| 10+ | ₹1,201.13 | ₹12,011.30 |
1 × ₹1,243.92
₹1,243.92
excl. GST
₹1,467.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
LTC3499BEMS8#PBF
₹1,243.92 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Frequency - Switching
- 1.2MHz
- Function
- Boost
- Number of Outputs
- 1
- Features
- Adjustable soft-start;Load disconnect
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 1.8V~5.5V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 750mA
- Output Voltage
- 2V~6V
- Quiescent Current
- 300uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.62 g
Overview
Reverse-Battery Protection for DC/DC Converter and Load High Efficiency: Up to 94% Generates 5V at 175mA from a 1.81 Input Operates from 1.81 to 5.5V Input Supply 2V to 6V Adjustable Output Voltage Inrush Current Controlled During Start-Up Output Disconnnect in Shutdown Low Noise 1.2MHz PWM Operation Tiny External Components Automatic Burst Mode Operation (LTC3499) Continuous Switching at Light Loads (LTC3499B) Overvoltage Protection 8-Lead (3mm×3mm×0.75mm) DFN and MSOP Packages
Applications
- Medical Equipment
- Digital Cameras
- MP3 Players
- Handheld Instruments
Key features
- Reverse-Battery Protection for DC/DC Converter and Load
- High Efficiency: Up to 94%
- Generates 5V at 175mA from a 1.81 Input
- Operates from 1.81 to 5.5V Input Supply
- 2V to 6V Adjustable Output Voltage
- Inrush Current Controlled During Start-Up
- Output Disconnnect in Shutdown
- Low Noise 1.2MHz PWM Operation
- Tiny External Components
- Automatic Burst Mode Operation (LTC3499)
- Continuous Switching at Light Loads (LTC3499B)
- Overvoltage Protection
- 8-Lead (3mm×3mm×0.75mm) DFN and MSOP Packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LTC3499EMS8#PBF#C684834ADI · MSOP-8 | ADI | MSOP-8 | 3 | ₹690.35 · 3 in stock | View |
| LTC3499BEMS8#TRPBF#C684831ADI · MSOP-8 | ADI | MSOP-8 | On request | ₹528.08 · 0 in stock | View | |
| LTC3499EMS8#TRPBF#C684835ADI · MSOP-8 | ADI | MSOP-8 | On request | ₹348.85 · 0 in stock | View | |
