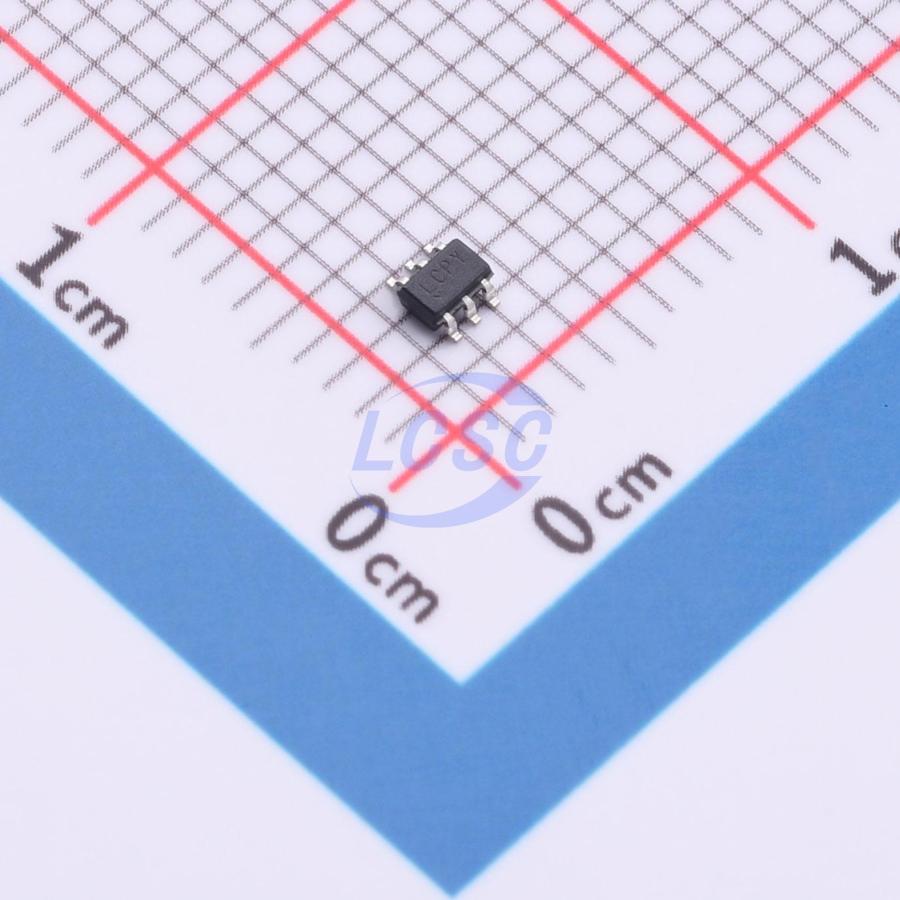

LTC3525LESC6-3#TRMPBF

The LTC3525L-3 is a high efficiency synchronous stepup DC/DC converter with output disconnect that can start up with an input as low as 0.7V. It offers a compact, high efficiency alternative to charge pumps in single cell or dual cell alkaline applications. Only three small external components are required. The LTC3525L-3 generates a fixed 3V output voltage. The device includes a 0.5 N-channel MOSFET switch and a 0.85 P-channel synchronous rectifier. Peak switch current ranges from 150mA to 400mA, depending on load, providing enhanced efficiency. Quiescent current is an ultralow 7µA, maximizing battery life in portable applications. Other features include <1µA shutdown current, antiringing control and thermal shutdown. The LTC3525L-3 is available in a tiny 6-pin SC70 package.

Applications

• MP3 Players
• Portable Instruments
• Glucose Meters
• Digital Cameras

Key features

• Start-Up at 0.7V Typical, 0.88V Guaranteed
• Up to 95% Efficiency
• Output Disconnect and Inrush Current Limit
• 3V Fixed Output Voltage
• Delivers 65mA at from a 1V Input or 160mA from a 1.8V Input
• Burst Mode Operation: <7µA
• VIN: 0.5V to 4.5V
• Only Three External Components
• VIN > VOUT Operation
• <1µA Shutdown Current
• Anti-Ringing Control
• Short-Circuit and Overtemperature Protection
• Tiny 6-Pin SC70 Package
