LTC3562EUD#PBF

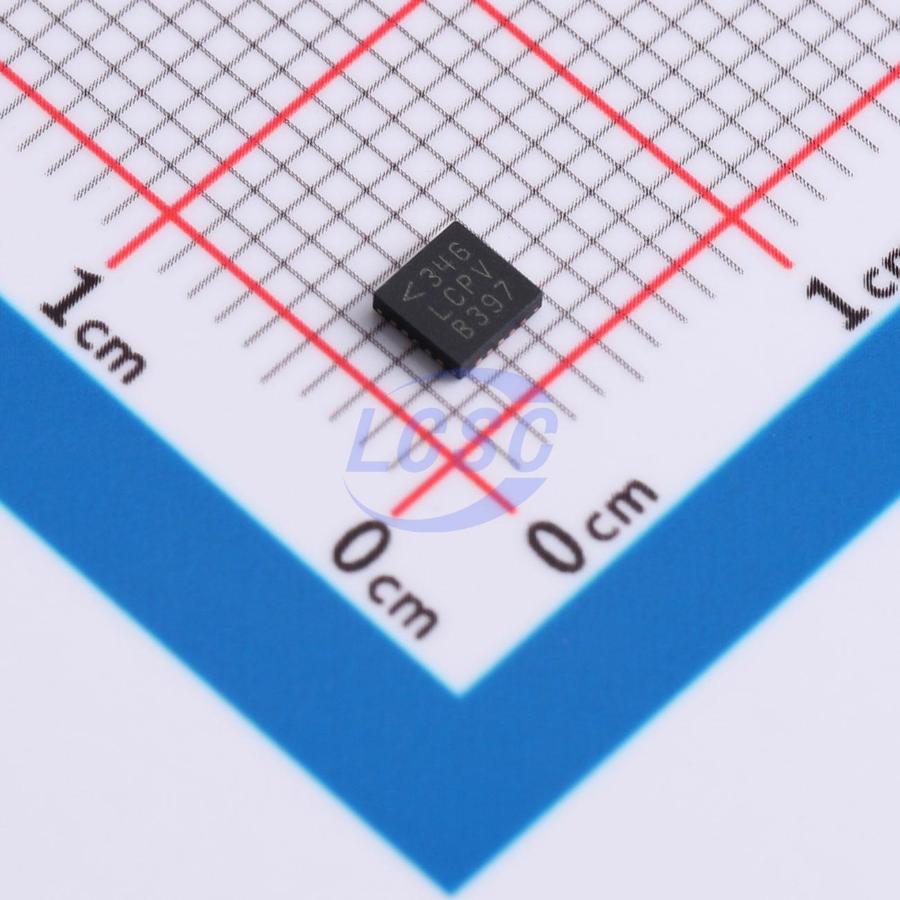

Step-down type 2.25MHz Adjustable QFN-20-EP(3x3) Voltage Regulators - DC DC Switching Regulators RoHS

QFN-20-EP(3x3)ROHS3 CompliantActive

Manufacturer: ADI
Manufacturer part #: LTC3562EUD#PBF
Store part #: C685053
Package / case: QFN-20-EP(3x3)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

9 in stock

#C685053

Stock & price checked 8 days ago

Quantity	Unit price	Pack price
1+	₹1,709.85	₹1,709.85
10+	₹1,650.16	₹16,501.60

Quantity (min 1)

1 × ₹1,709.85

₹1,709.85

excl. GST

₹2,017.62 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 121 per tube

LTC3562EUD#PBF

₹1,709.85 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
Function: Step-down type
Frequency - Switching: 2.25MHz
Number of Outputs: 4
Features: Light load efficient mode;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 2.7V~5.5V
Switch tube (built-in/external): Built-in
Output Voltage: 425mV~800mV;600mV~3.775V
Output Current: 400mA;600mA
Quiescent Current: 24uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tube-packed
Standard pack: 121 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 0.555 g

Overview

The LTC3562 is a quad high eff iciency monolithic synchronous step-down regulator with an I2C interface. Two regulators are externally adjustable and can have their feedback voltages programmed between 425mV and 800mV in 25mV steps (Type A). The other two regulators are f ixed output regulators whose output voltages can be programmed between 600mV and 3.775V in 25mV steps (Type B). All four regulators operate independently and can be put into pulse skip, LDO, Burst Mode operation, or forced Burst Mode operation through I2C control. The Type-A regulators have separate RUN pins that can be enabled if I2C control is unavailable. The 2.85V to 5.5V input voltage range makes the LTC3562 ideally suited for single Li-Ion battery-powered applications. At low output load conditions, the regulators can be switched into LDO, Burst Mode operation, or forced Burst Mode operation, extending battery life in portable systems. The quiescent current drops to under 100μA with all regulators in LDO mode, and under 0.1μA when all regulators are shut down. Switching frequency is internally set to 2.25MHz, allowing the use of small surface mount inductors and capacitors. All regulators are internally compensated. The LTC3562 is available in a low prof lie 3mm × 3mm QFN package.

Applications

Miscellaneous Handheld Applications with Multiple Supply Rails
Personal Information Appliances
Wireless and DSL Modems
Digital Still Cameras
MP3 Players
Portable Instruments

Key features

Four Independent I2C Controllable Step-Down Regulators (2×600mA, 2×400mA)
Two I2C Programmable Feedback Voltage Regulators (R600A, R400A): VFB 425mV to 800mV
Two I2C Programmable Output Voltage Regulators (R600B, R400B): VOUT 600mV to 3.775V
Programmable Modes: Pulse Skip, LDO, Burst Mode, Forced Burst Mode Operation
Quiescent Current < 100μA (All Regulators Enabled in LDO Mode)
Fixed 2.25MHz Switching Frequency (Pulse Skip Mode)
Slew Limiting Reduces Switching Noise
Power-On Reset Output for Regulator R600A
Small, Thermally Enhanced, 20-Lead 3mm × 3mm QFN Package
