ADI

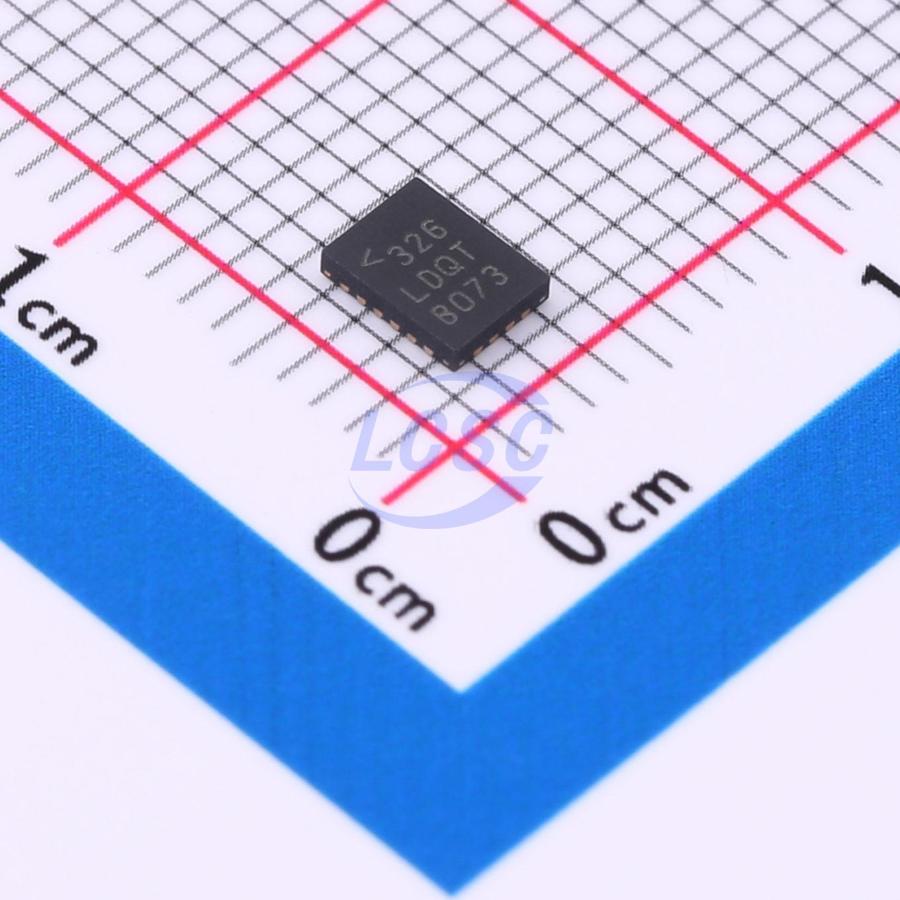

LTC3612EUDC#TRPBF

300kHz~4MHz Step-down type Adjustable 3A QFN-20-EP(3x4) Voltage Regulators - DC DC Switching Regulators RoHS

QFN-20-EP(3x4)ROHS3 CompliantActive

3A, 4MHz Monolithic Synchronous Step-Down DC/DC Converter

Manufacturer: ADI
Manufacturer part #: LTC3612EUDC#TRPBF
Store part #: C685211
Package / case: QFN-20-EP(3x4)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

6 in stock

#C685211

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹1,135.41	₹1,135.41
10+	₹1,108.79	₹11,087.90
30+	₹1,090.91	₹32,727.30
100+	₹1,073.23	₹1,07,323.00

Quantity (min 1)

1 × ₹1,135.41

₹1,135.41

excl. GST

₹1,339.78 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

LTC3612EUDC#TRPBF

₹1,135.41 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TA)
Frequency - Switching: 300kHz~4MHz
Function: Step-down type
Number of Outputs: 1
Features: Adjustable soft-start;Frequency synchronization;Light load efficient mode;Operating status indication;External compensation
Output Type: Adjustable
Topology: Buck
Operating Voltage: 2.25V~5.5V
Switch tube (built-in/external): Built-in
Output Current: 3A
Quiescent Current: 70uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.063 g

Overview

The LTC3612 is a low quiescent current monolithic synchronous buck regulator using a current mode, constant frequency architecture. The no-load DC supply current in sleep mode is only 70µA while maintaining the output voltage (Burst Mode operation) at no load, dropping to zero current in shutdown. The 2.25V to 5.5V input supply voltage range makes the LTC3612 ideally suited for single Li-Ion as well as fixed low voltage input applications. 100% duty cycle capability provides low dropout operation, extending the operating time in battery-powered systems. The operating frequency is externally programmable up to 4MHz, allowing the use of small surface mount inductors. For switching noise-sensitive applications, the LTC3612 can be synchronized to an external clock at up to 4MHz. Forced continuous mode operation in the LTC3612 reduces noise and RF interference. Adjustable compensation allows the transient response to be optimized over a wide range of loads and output capacitors. The internal synchronous switch increases efficiency and eliminates the need for an external catch diode, saving external components and board space. The LTC3612 is offered in a leadless 20-pin 3mm × 4mm QFN or a thermally enhanced 20-pin TSSOP package.

Applications

Point-of-Load Supplies
Distributed Power Supplies
Portable Computer Systems
DDR Memory Termination
Handheld Devices

Key features

3A output current
2.25V to 5.5V input voltage range
Low output ripple Burst Mode operation: I₀ = 70µA
±1% output voltage accuracy
Output voltage as low as 0.6V
High efficiency: up to 95%
Low dropout operation: 100% duty cycle
Shutdown current: ≤1µA
Adjustable switching frequency: up to 4MHz
Optional AVP with internal compensation
Selectable pulse-skipping/forced continuous/Burst Mode operation with adjustable burst clamp
Programmable soft-start
Input for startup tracking or external reference
DDR memory mode, I₀ₒᵤₜ = ±1.5A
Available in thermally enhanced 20-lead (3mm×4mm) QFN and TSSOP packages
