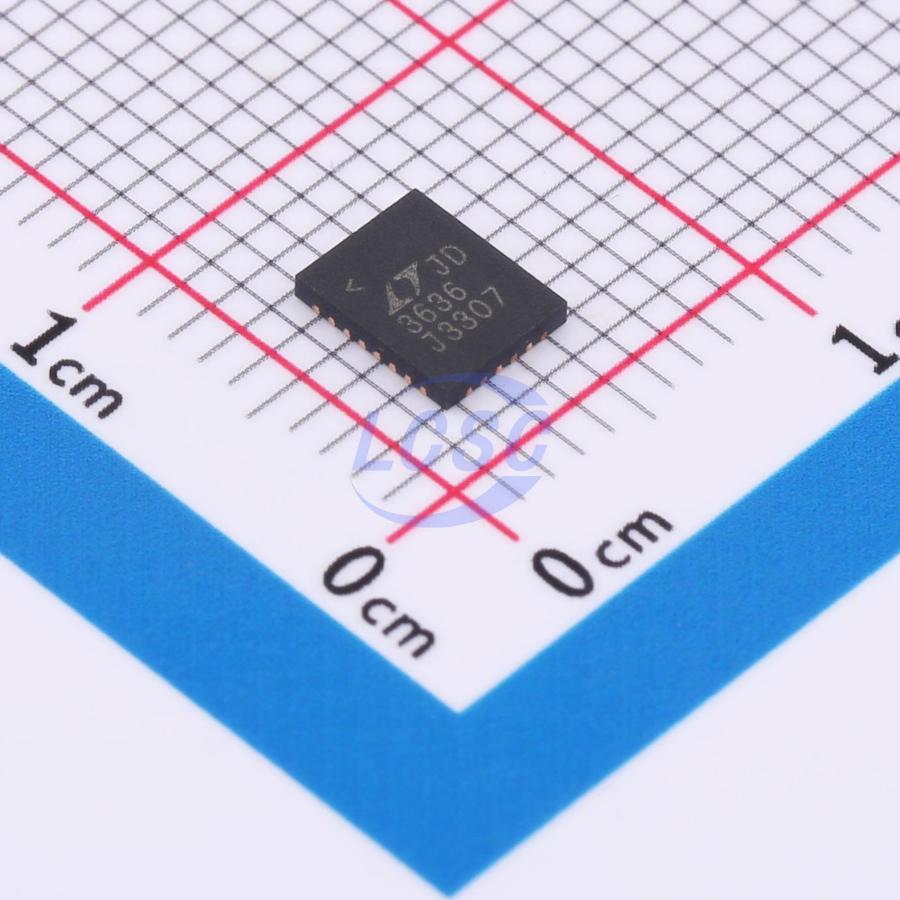

LTC3636EUFD#TRPBF

The LTC3636/LTC3636-1 is a high efficiency, dualchannel monolithic synchronous buck regulator using a controlled on-time current mode architecture, with phase lockable switching frequency. The operating supply voltage range is from 3.1V to 20V, making it suitable for lithium-ion battery stacks as well as point of load power supply applications from a 12V or 5V input. The operating frequency is programmable from 500kHz to 4MHz with an external resistor and may be synchronized to an external clock signal. The high frequency capability allows the use of small surface mount inductors and capacitors. The unique constant frequency/controlled ontime architecture is ideal for high step-down ratio applications that operate at high frequency while demanding fast transient response. The LTC3636/LTC3636-1 can select between forced continuous mode and high efficiency Burst Mode operation. The LTC3636 and LTC3636-1 differ in their output voltage sense range.

Applications

• Distributed Power Systems
• Battery-Powered Instruments
• Point-of-Load Power Supplies

Key features

• Wide VIN Range: 3.1V to 20V
• Wide VOUT Range:
• 0.6V to 5V (LTC3636)
• 1.8V to 12V (LTC3636-1)
• Output Current per Channel: 6A
• High Efficiency: Up to 95%
• Die Temperature Monitor
• Adjustable Switching Frequency: 500kHz to 4MHz
• External Frequency Synchronization
• Current Mode Operation for Excellent Line and Load Transient Response
• 0.6V Reference Allows Low Output Voltages
• User Selectable Burst Mode Operation or Forced Continuous Operation
• Output Voltage Tracking and Soft-Start Capability
• Short-Circuit Protected
• Overvoltage Input and Overtemperature Protection
• Power Good Status Outputs
• Low Profile 4mm × 5mm 28-Lead QFN Package
• AEC-Q100 Qualified for Automotive Applications
