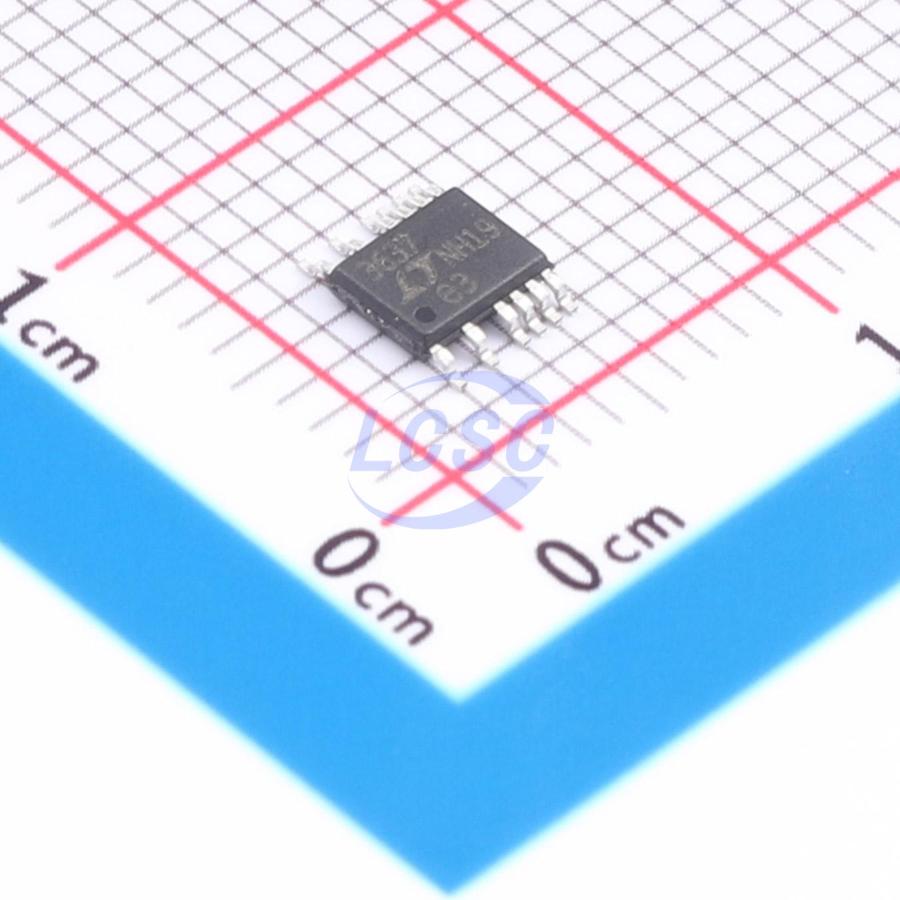

LTC3637EMSE#PBF

The LTC3637 is a high efficiency step-down DC/DC regulator with an internal high side power switch that draws only 12μA DC supply current while maintaining a regulated output voltage at no load. The LTC3637 can supply up to 1A load current and features a programmable peak current limit that provides a simple method for optimizing efficiency and for reducing output ripple and component size. The LTC3637’s combination of Burst Mode® operation, integrated power switch, low quiescent current, and programmable peak current limit provides high efficiency over a broad range of load currents. With its wide input range of 4V to 76V, and programmable overvoltage lockout, the LTC3637 is a robust regulator suited for regulating from a wide variety of power sources. Additionally, the LTC3637 includes a precise run threshold and soft-start feature to guarantee that the power system start-up is well-controlled in any environment. The LTC3637 is available in the thermally-enhanced 3mm x 5mm DFN and the MSE16 packages.

Applications

• Industrial Control Supplies
• Medical Devices
• Distributed Power Systems
• Portable Instruments
• Battery-Operated Devices

Key features

• Wide Operating Input Voltage Range: 4V to 76V
• Internal 350mΩ Power MOSFET
• No Compensation Required
• Adjustable 100mA to 1A Maximum Output Current
• Low Dropout Operation: 100% Duty Cycle
• Low Quiescent Current: 12μA
• Wide Output Range: 0.8V to V₁ₙ
• 0.8V ±1% Feedback Voltage Reference
• Precise RUN Pin Threshold
• Internal and External Soft-Start
• Programmable 1.8V, 3.3V, 5V or Adjustable Output
• Few External Components Required
• Programmable Input Overvoltage Lockout
• Low Profile (0.75mm) 3mm × 5mm DFN and Thermally-Enhanced MSE16 Packages
• AEC-Q100 Qualification In Progress
