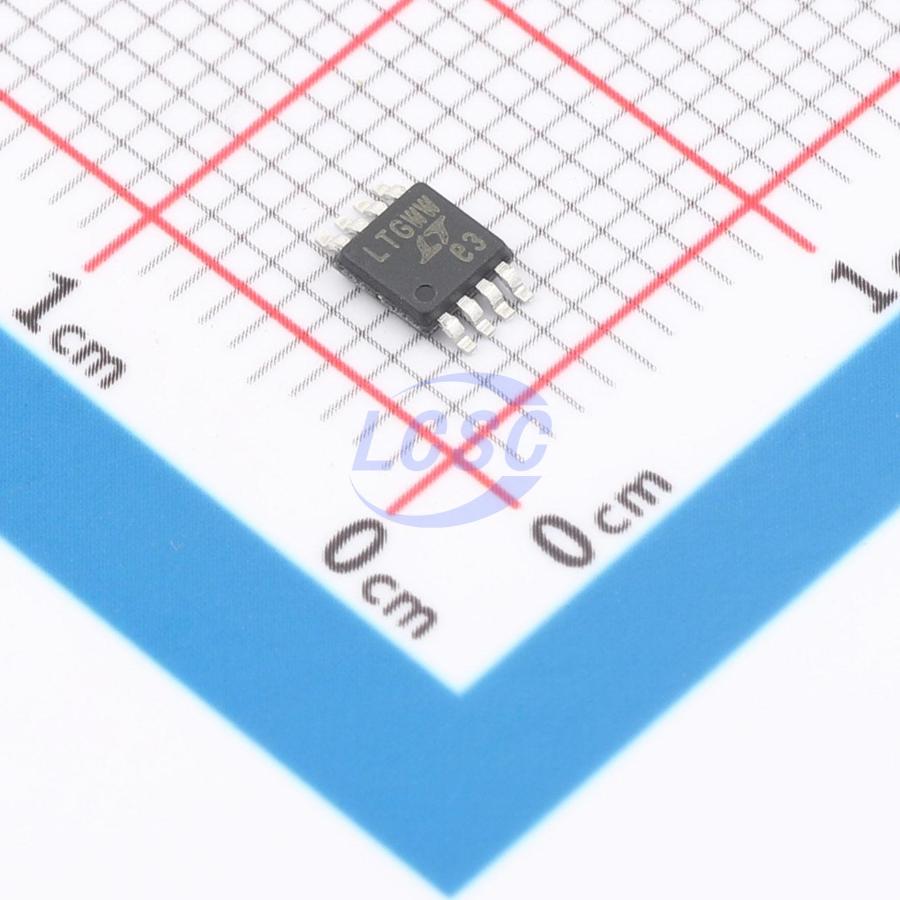

LTC6259HMS8#PBF

20mA 2 400uV 240V/ms 95dB 75nA 20uA 1.3MHz Rail-to-Rail Input, Rail-to-Rail Output MSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS

MSOP-8ROHS3 CompliantDiscontinued

1.3MHz, 20uA Power Efficient Rail-to-Rail I/O Op Amps

Manufacturer: ADI
Manufacturer part #: LTC6259HMS8#PBF
Store part #: C689118
Package / case: MSOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

13 in stock

#C689118

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
1+	₹863.51	₹863.51

Quantity (min 1)

1 × ₹863.51

₹863.51

excl. GST

₹1,018.94 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 50 per tube

LTC6259HMS8#PBF

₹863.51 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 20mA
Number of Channels: 2
Vos - Input Offset Voltage: 400uV
Slew Rate: 240V/ms
Input Offset Current(Ios): 75nA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 95dB
Ib - Input Bias Current: 75nA
Input Offset Voltage Drift(Vos TC): 1.5uV/℃
Quiescent Current: 20uA
Gain Bandwidth Product: 1.3MHz
Features: Enable/shutdown function
Input Voltage Noise Density: 38nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.81V~5.25V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Discontinued
ECCN: EAR99
Packaging: Tube-packed
Standard pack: 50 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 0.64 g

Overview

The LTC6258/LTC6259/LTC6260 are single/dual/quad operational amplifiers with low noise, low power, low supply voltage, and rail-to-rail inputs and outputs. They are unity gain stable with or without capacitive loads. They feature 1.3MHz gain-bandwidth product, 0.24V/µs slew rate while consuming only 20µA of supply current per amplifier operating on supply voltages ranging from 1.8 to 5.25V. The combination of low supply current, low supply voltage, high gain bandwidth product and low noise makes the LTC6258 family unique among rail-to-rail input/output op amps with similar supply current. These operational amplifiers are ideal for power efficient applications. For applications that require power-down, the LTC6258 in 2mm × 2mm DFN and LTC6259 MS10 packages respectively offer shutdown which reduces the current consumption to 7µA maximum.

Applications

Micropower Active Filters
Portable Instrumentation
Battery or Solar Powered Systems
Automotive Electronics

Key features

Gain Bandwidth Product: 1.3MHz
Low Quiescent Current: 2µA
C-Load™ Op Amp Drives all Capacitive Loads
Offset Voltage: 400µV Maximum
Rail-to-Rail Input and Output
Supply Voltage Range: 1.8 to 5.25V
EMI Rejection Ratio: 45dB at 1GHz
Input Bias Current: 75nA Maximum
CMRR/PSRR: 95dB/90dB
Shutdown Current: 7µA Maximum
Operating Temperature Range: -40°C to 125°C
Single in 6-Lead TSOT-23, 2mm × 2mm DFN Packages
Dual in 8-Lead MS8, MS10, TSOT-23, 2mm × 2mm DFN Packages
Quad in MS16 Package
