NUVOTONDatasheet (PDF)

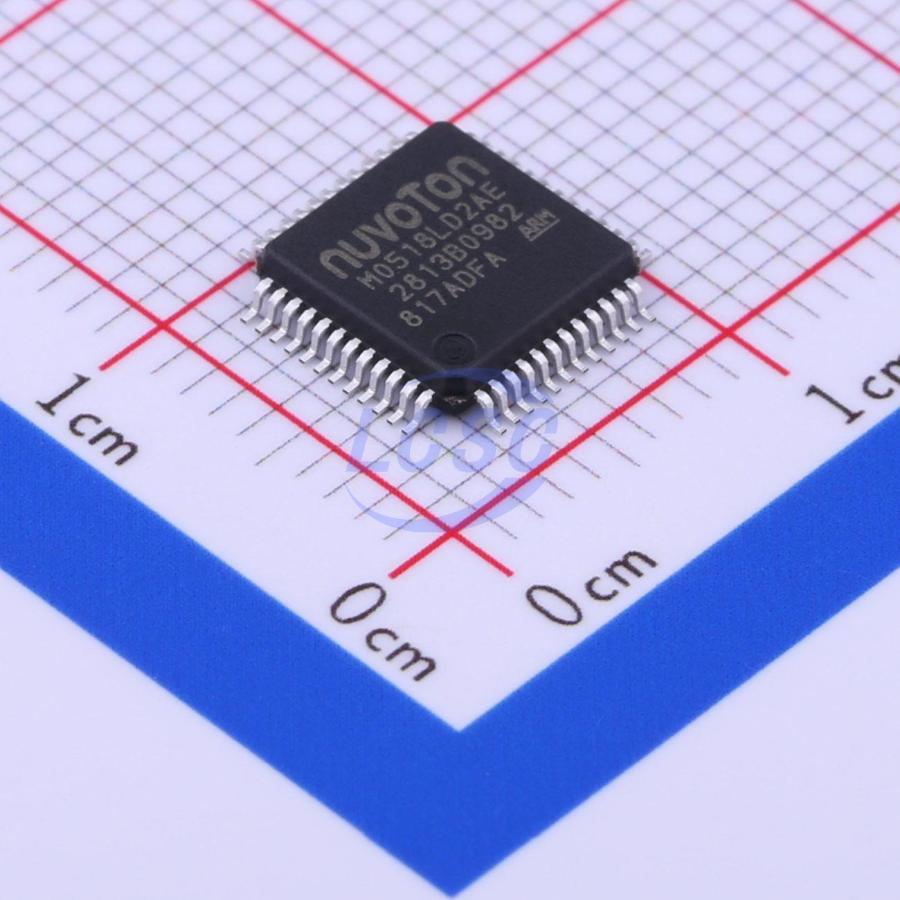

M0518LD2AE
ARM Cortex-M0 32 Bit 50MHz LQFP-48(7x7) Microcontrollers RoHS
LQFP-48(7x7)ROHS CompliantActive
NuMicro M0518
- Manufacturer
- NUVOTON
- Manufacturer part #
- M0518LD2AE
- Store part #
- C272862
- Package / case
- LQFP-48(7x7)
- Category
- Microcontrollers
- Packaging
- Tray
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,463 in stock
#C272862
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹340.00 | ₹340.00 |
| 10+ | ₹295.84 | ₹2,958.40 |
| 30+ | ₹268.00 | ₹8,040.00 |
| 250+ | ₹213.40 | ₹53,350.00 |
| 500+ | ₹200.57 | ₹1,00,285.00 |
| 1,000+ | ₹195.13 | ₹1,95,130.00 |
1 × ₹340.00
₹340.00
excl. GST
₹401.20 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 250 per tray
M0518LD2AE
₹340.00 for 1 + GST
Specifications
- ADC (Bit)
- 12bit
- Number of I/O
- 42
- Operating Temperature
- -40℃~+105℃
- Voltage - Supply
- 2.5V~5.5V
- Program Memory Type
- FLASH
- Program Storage Size
- 68KB
- CPU Core
- ARM Cortex-M0
- Core Size
- 32 Bit
- CPU Maximum Speed
- 50MHz
- Oscillator Type
- Built-in
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- 3A991A2
- Packaging
- Tray
- Standard pack
- 250 / Tray
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.96 g
Overview
The NuMicro M0518 series is embedded with the Cortex-M0 core running up to 50 MHz and features 36/68 Kbytes flash, 8K bytes SRAM, and 4 Kbytes loader ROM for the ISP. It is also equipped with plenty of peripheral devices, such as Timers, Watchdog Timer (WDT), Window Watchdog Timer (WWDT), UART, SPI, I²C, PWM, GPIO, LIN, 800 kSPS high speed 12-bit ADC, Low Voltage Reset Controller and Brown-out Detector.
Key features
- ARM Cortex-M0 core
- Runs up to 50 MHz
- One 24-bit system timer
- Supports low power sleep mode
- Single-cycle 32-bit hardware multiplier
- NVIC for the 32 interrupt inputs, each with 4-levels of priority
- Serial Wire Debug supports with 2 watchpoints/4 breakpoints
- Built-in LDO for wide operating voltage ranged from 2.5V to 5.5V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NUC131LD2AE#C394840NUVOTON · LQFP-48(7x7) | NUVOTON | LQFP-48(7x7) | 47 | ₹413.74 · 47 in stock | View |
 | M031LD2AE#C841531NUVOTON · LQFP-48(7x7) | NUVOTON | LQFP-48(7x7) | 2,124 | ₹198.54 · 2,124 in stock | View |
 | LPC1115FBD48/303EL#C1020276NXP · LQFP-48(7x7) | NXP | LQFP-48(7x7) | 2 | ₹1,023.57 · 2 in stock | View |
 | LPC1114JBD48/333QL#C1337655NXP · LQFP-48(7x7) | NXP | LQFP-48(7x7) | 11 | ₹611.82 · 11 in stock | View |
 | LPC1114FBD48/333,1#C1339221NXP · LQFP-48(7x7) | NXP | LQFP-48(7x7) | 1 | ₹716.22 · 1 in stock | View |
