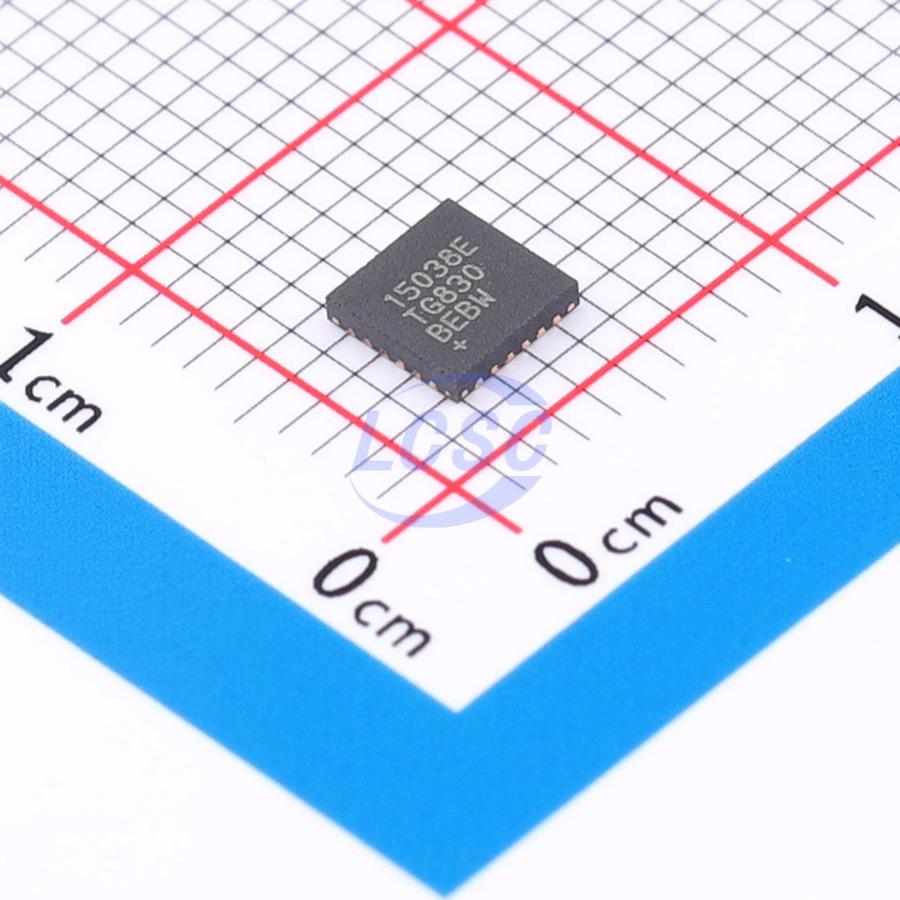

MAX15038ETG+T

The MAX15038 high-efficiency switching regulator delivers up to 4A load current at output voltages from 0.6V to 90% of VIN. The IC operates from 2.9V to 5.5V, making it ideal for on-board point-of-load and postregulation applications. Total output error is less than ± 1 % over load, line, and temperature ranges.

Applications

• Server Power Supplies
• POLs
• ASIC/CPU/DSP Core and I/O Voltages
• DDR Power Supplies
• Base-Station Power Supplies
• Telecom and Networking Power Supplies
• RAID Control Power Supplies

Key features

• Internal 31mΩ RDS(ON) High-Side and 24mΩ RDS(ON) Low-Side MOSFETs
• Continuous 4A Output Current Over Temperature
• ±1% Output Accuracy Over Load, Line, and Temperature
• Operates from 2.9V to 5.5V VIN Supply
• Adjustable Output from 0.6V to (0.9×VIN)
• Soft-Start Reduces Inrush Supply Current
• 500kHz to 2MHz Adjustable Switching Frequency
• Compatible with Ceramic, Polymer, and Electrolytic Output Capacitors
• Nine Preset and Adjustable Output Voltages 0.6V, 0.7V, 0.8V, 1.0V, 1.2V, 1.5V, 1.8V, 2.0V, 2.5V, and Adjustable
• Monotonic Startup for Safe-Start into Prebiased Outputs
• Selectable Forced PWM or Skip Mode for Light Load Efficiency
• Overcurrent and Overtemperature Protection
• Output Current Sink/Source Capable with Cycleby-Cycle Protection
• Open-Drain Power-Good Output
• Lead-Free, 4mm x 4mm, 24-Pin Thin QFN Package
