MAXIM

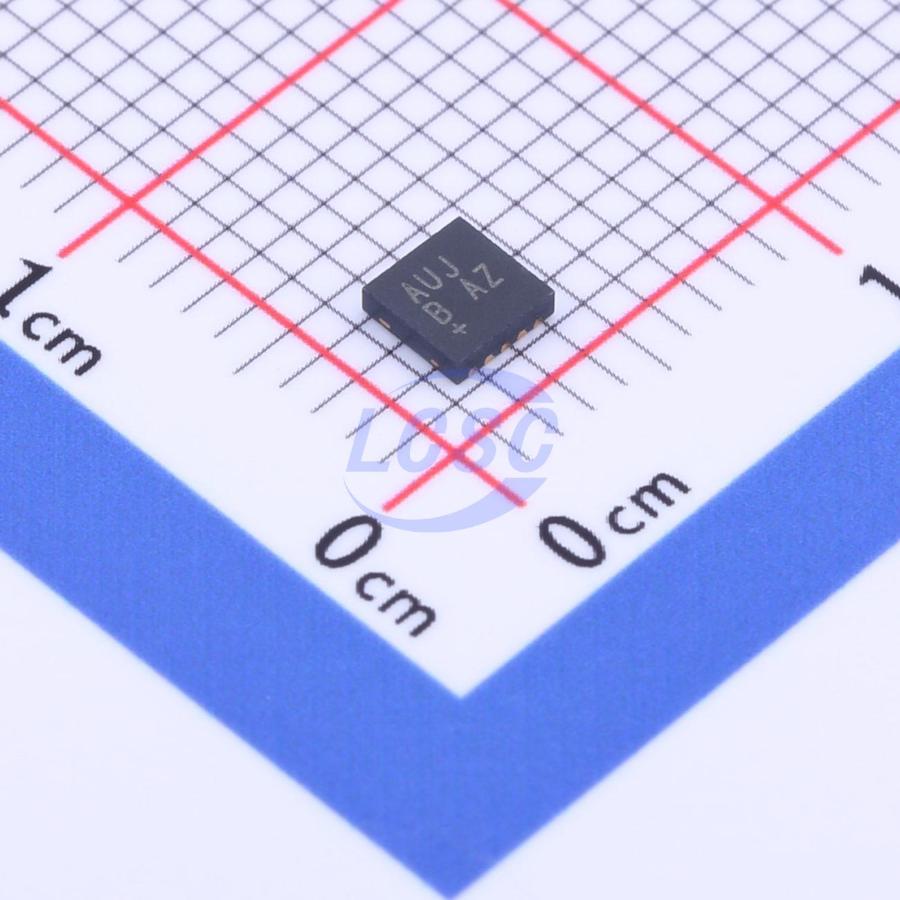

MAX1556AETB+T

1MHz Step-down type Adjustable 1.2A TDFN-10-EP(3x3) Voltage Regulators - DC DC Switching Regulators RoHS

TDFN-10-EP(3x3)ROHS3 CompliantActive

16μA IQ, 1.2A PWM DC-DC Step-Down Converters

Manufacturer: MAXIM
Manufacturer part #: MAX1556AETB+T
Store part #: C2072656
Package / case: TDFN-10-EP(3x3)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

20 in stock

#C2072656

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹334.69	₹334.69
10+	₹283.27	₹2,832.70
30+	₹251.08	₹7,532.40
100+	₹218.02	₹21,802.00
500+	₹203.11	₹1,01,555.00
1,000+	₹196.62	₹1,96,620.00

Quantity (min 1)

1 × ₹334.69

₹334.69

excl. GST

₹394.93 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

MAX1556AETB+T

₹334.69 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃@(TA)
Frequency - Switching: 1MHz
Function: Step-down type
Number of Outputs: 1
Features: Adjustable soft-start;Light load efficient mode
Output Type: Adjustable
Topology: Buck
Operating Voltage: 2.6V~5.5V
Switch tube (built-in/external): Built-in
Output Voltage: 1.2V;1.5V;2.5V;3.3V
Output Current: 1.2A
Quiescent Current: 25uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.055 g

Overview

The MAX1556/MAX1556A/MAX1557 are low-operating current (16µA), fixed-frequency step-down regulators. High efficiency, low-quiescent operating current, low dropout, and minimal (27µA) quiescent current in dropout make these converters ideal for powering portable devices from 1-cell Li-ion or 3-cell alkaline/NiMH batteries. The MAX1556 delivers up to 1.2A; has pin-selectable 1.8V, 2.5V, and 3.3V outputs; and is also adjustable. The MAX1557 delivers up to 600mA; has pin-selectable 1V, 1.3V, and 1.5V outputs; and is also adjustable. The MAX1556/MAX1556A/MAX1557 contain a low-on-resistance internal MOSFET switch and synchronous rectifier to maximize efficiency and dropout performance while minimizing external component count. A proprietary topology offers the benefits of a high fixed-frequency operation while still providing excellent efficiency at both light and full loads. A 1MHz PWM switching frequency keeps components small. Both devices also feature an adjustable soft-start to minimize battery transient loading. The MAX1556/MAX1556A/MAX1557 are available in a tiny 10-pin TDFN (3mm x 3mm) package. The MAX1556/MAX1557 synchronous step-down converters deliver a guaranteed 1.2A/600mA at output voltages from 0.75V to VIN. They use a 1MHz PWM current-mode control scheme with internal compensation, allowing for tiny external components and a fast transient response. At light loads the MAX1556/MAX1557 automatically switch to pulse-skipping mode to keep the quiescent supply current as low as 16µA.
