MAXIMDatasheet (PDF)

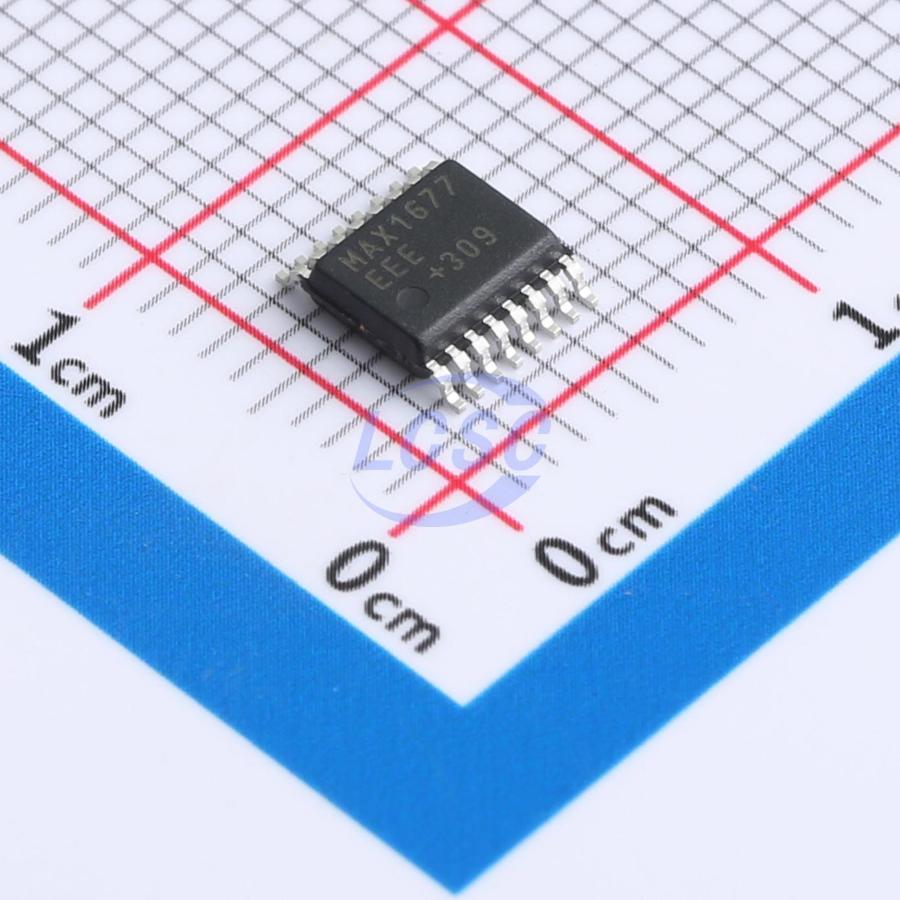

MAX1677EEE+T
300kHz Boost Adjustable and Fixed 2.5V~5.5V 350mA QSOP-16-EP-150mil Voltage Regulators - DC DC Switching Regulators RoHS
QSOP-16-EP-150milROHS3 CompliantActive
V/XIVI Compact, High-Efficiency, Dual-Output Step-Up and LCD Bias DC-DC Converter
- Manufacturer
- MAXIM
- Manufacturer part #
- MAX1677EEE+T
- Store part #
- C2072829
- Package / case
- QSOP-16-EP-150mil
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7 in stock
#C2072829
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,094.85 | ₹1,094.85 |
| 10+ | ₹1,070.37 | ₹10,703.70 |
| 30+ | ₹1,054.11 | ₹31,623.30 |
| 100+ | ₹1,037.87 | ₹1,03,787.00 |
1 × ₹1,094.85
₹1,094.85
excl. GST
₹1,291.92 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX1677EEE+T
₹1,094.85 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Frequency - Switching
- 300kHz
- Number of Outputs
- 2
- Function
- Boost
- Features
- Adjustable current limiting;Frequency synchronization;Light load efficient mode
- Output Type
- Adjustable and Fixed
- Topology
- Boost
- Operating Voltage
- 700mV~5.5V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 2.5V~5.5V
- Output Current
- 350mA
- Quiescent Current
- 20uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.13 g
Overview
The MAX1677 is a highly-efficient, dual-output power supply for battery-powered devices. On-chip are two complete step-up DC-DC converters to power main logic and bias an LCD. The main boost converter (MBC) has on-chip P-channel and N-channel MOSFETs that provide synchronous-rectified voltage conversion for maximum efficiency.
Applications
- PDAs
- Portable Phones
- Hand-Held Terminals
- Portable Instruments
Key features
- No External FETs Required
- Main Output Up to 350mA for Logic Supply
- Fixed 3.3V or Adjustable (2.5V to 5.5V)
- Synchronous Rectification for High Efficiency (up to 95%)
- 300kHz (200kHz to 400kHz Synchronizable) Fixed-Frequency PWM Operation
- Secondary Output Up to ±28V or -28V for LCD Bias
- Programmable Current Limit
- 0.7V to 5.5V Input Voltage Range
- 20µA Quiescent Current
- 1µA Shutdown Current
- Low-Battery Comparator
- Small 16-Pin QSOP Package
