MAX1681ESA+T
125mA SO-8 Voltage Regulators - DC DC Switching Regulators RoHS
SO-8ROHS3 CompliantActive
125mA, Frequency-Selectable, Switched-Capacitor Voltage Converters
- Manufacturer
- MAXIM
- Manufacturer part #
- MAX1681ESA+T
- Store part #
- C559517
- Package / case
- SO-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9 in stock
#C559517
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹537.38 | ₹537.38 |
| 10+ | ₹465.02 | ₹4,650.20 |
| 30+ | ₹386.79 | ₹11,603.70 |
| 100+ | ₹343.33 | ₹34,333.00 |
| 500+ | ₹323.13 | ₹1,61,565.00 |
| 1,000+ | ₹314.21 | ₹3,14,210.00 |
1 × ₹537.38
₹537.38
excl. GST
₹634.11 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel

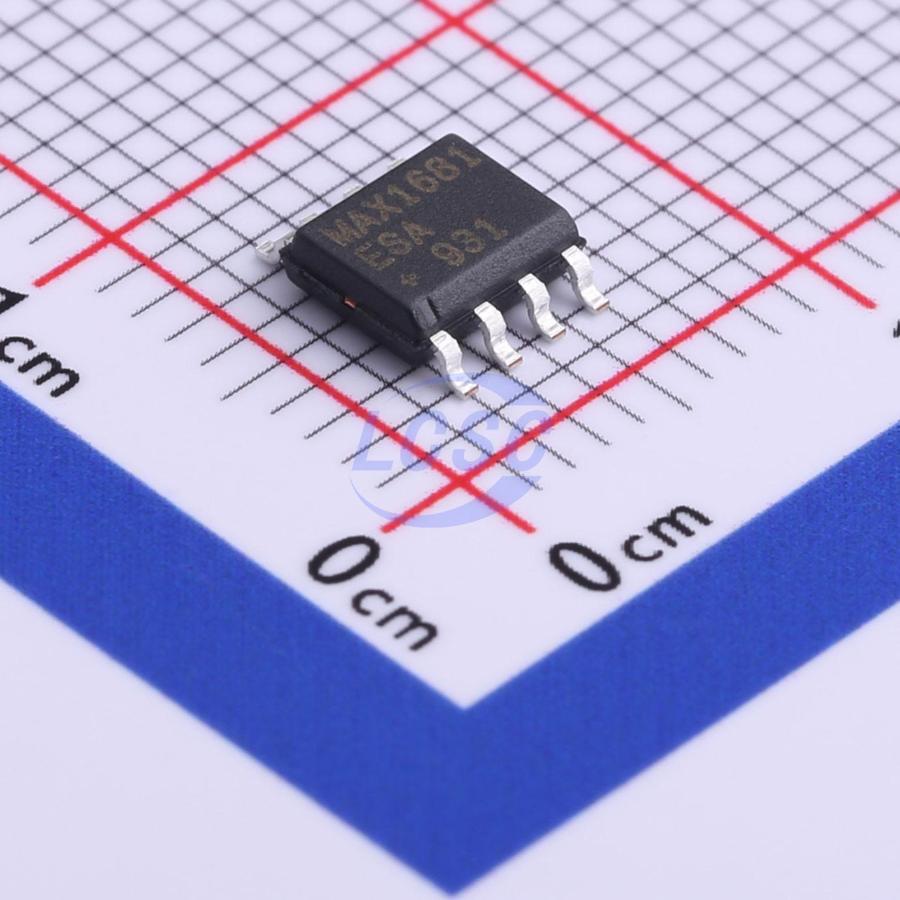

MAX1681ESA+T
₹537.38 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 500kHz;1MHz
- Function
- Inverted;boost converter
- Features
- Charge pump / inverting topology switching;Adaptive switching frequency;Cascade support;Low-power standby
- Operating Voltage
- 3V~5.5V
- Output Current
- 125mA
- Quiescent Current
- 10mA
- Energy Efficiency
- 80%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.12 g
Overview
The MAX1680/MAX1681 inductorless switched-capacitor voltage converters either invert an input voltage of +2.0V to +5.5V or double it while supplying up to 125mA output current. They have a selectable-frequency option that allows the use of small capacitors: 4.7µF (MAX1680), 1µF (MAX1681). With their high output current capability, these charge-pump devices are suitable replacements for inductor-based regulators, which require more expensive external components and additional board space.
Applications
- Local Negative Supplies
- Interface Power Supplies
- Op-Amp Power Supplies
- MOSFET Bias
Key features
- The devices’ equivalent output resistance (typically 3.5Ω) allows them to deliver as much as 125mA with only a 440mV drop.
- A shutdown feature reduces quiescent current to less than 1µA.
- Selectable Switching Frequencies: 125kHz/250kHz (MAX1680) 500kHz/1MHz (MAX1681)
- Allow Use of Small Capacitors (1µF for the MAX1681)
- 125mA Output Current
- 3.5Ω Output Impedance
- 1µA Logic-Controlled Shutdown
- Configurable as Voltage Inverters or Doublers
- +2.0V to +5.5V Input Voltage Range
- Available in 8-Pin SO Packages
- 90% Efficiency
