MAXIM

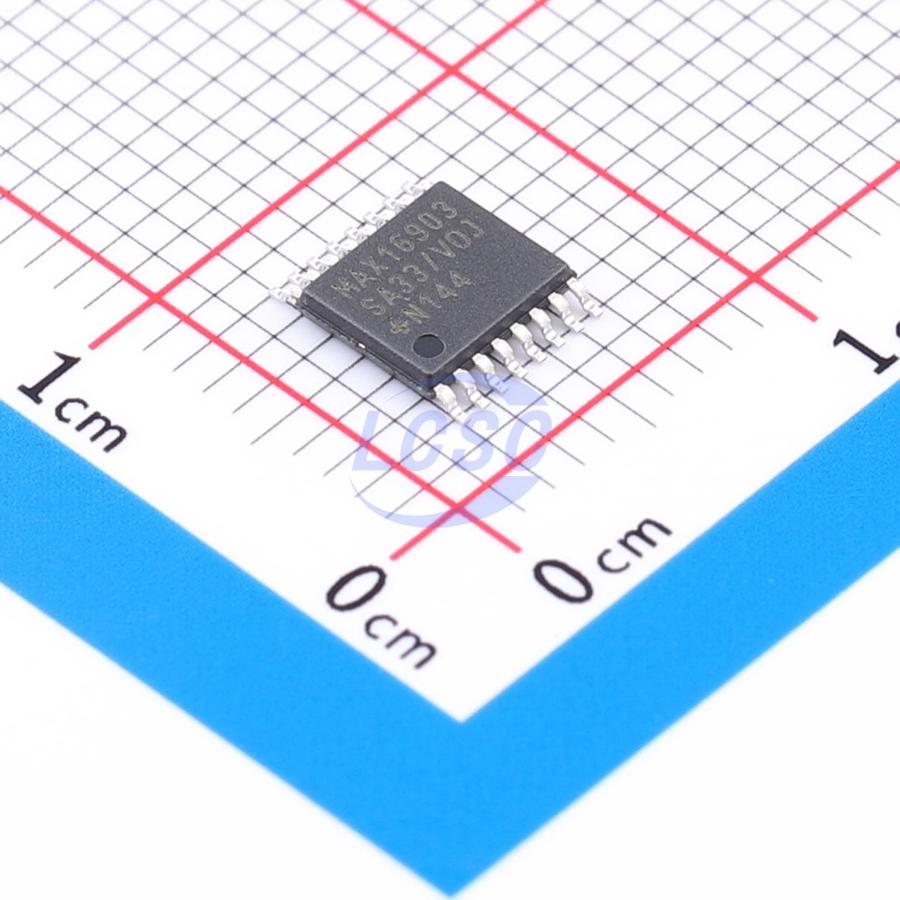

MAX16903SAUE33/V+T

2.1MHz Step-down type Fixed 3.3V 1A TSSOP-16-EP Voltage Regulators - DC DC Switching Regulators RoHS

TSSOP-16-EPROHS3 CompliantActive

Manufacturer: MAXIM
Manufacturer part #: MAX16903SAUE33/V+T
Store part #: C2072798
Package / case: TSSOP-16-EP
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

10 in stock

#C2072798

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
1+	₹1,836.18	₹1,836.18
10+	₹1,777.75	₹17,777.50

Quantity (min 1)

1 × ₹1,836.18

₹1,836.18

excl. GST

₹2,166.69 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

MAX16903SAUE33/V+T

₹1,836.18 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Frequency - Switching: 2.1MHz
Function: Step-down type
Number of Outputs: 1
Features: Overcurrent Protection;Hiccup current limiting;Frequency synchronization;EMI optimization (spread spectrum);Light load efficient mode;Operating status indication
Topology: Buck
Output Type: Fixed
Operating Voltage: 3.5V~28V
Switch tube (built-in/external): Built-in
Output Voltage: 3.3V
Output Current: 1A
Quiescent Current: 25uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.27 g

Overview

The MAX16903 is a small, synchronous buck converter with integrated high-side and low-side switches. The device is designed to deliver 1A with input voltages from +3.5V to +28V, while using only 25μA quiescent current at no load. Voltage quality can be monitored by observing the PGOOD signal. The MAX16903 can operate in dropout by running at 97% duty cycle, making it ideal for automotive and industrial applications. The MAX16903 operates at a 2.1MHz frequency, allowing for small external components and reduced output ripple. It guarantees no AM band interference. SYNC input programmability enables three frequency modes for optimized performance: forced fixed-frequency operation, skip mode (ultra-low quiescent current of 25μA), and synchronization to an external clock. The MAX16903 can be ordered with spread-spectrum frequency modulation, designed to minimize EMI-radiated emissions due to the modulation frequency. The MAX16903 is available in a thermally enhanced, 3mm x 3mm, 10-pin TDFN package or a 16-pin TSSOP package. The MAX16903 operates over the -40°C to +125°C automotive temperature range.

Applications

Automotive
Industrial High-Voltage Input-Power DC-DC Applications

Key features

Meets Stringent Automotive Quality and Reliability Requirements
