MAXIMDatasheet (PDF)

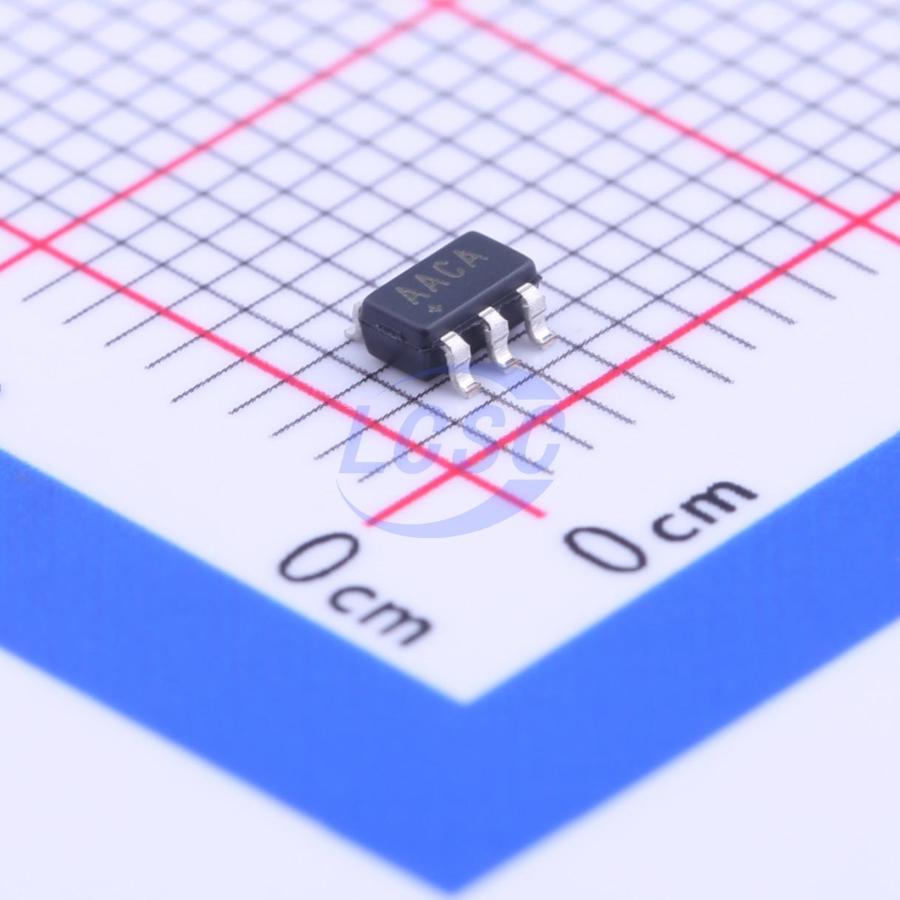

MAX1719EUT+T
Inverted 125kHz 25mA SOT-23-6 Voltage Regulators - DC DC Switching Regulators RoHS
SOT-23-6ROHS3 CompliantActive
SOT23 Switched-Capacitor Voltage Inverters with Shutdown
- Manufacturer
- MAXIM
- Manufacturer part #
- MAX1719EUT+T
- Store part #
- C143377
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
44 in stock
#C143377
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹457.27 | ₹457.27 |
| 10+ | ₹392.00 | ₹3,920.00 |
| 30+ | ₹353.20 | ₹10,596.00 |
| 100+ | ₹313.95 | ₹31,395.00 |
| 500+ | ₹295.74 | ₹1,47,870.00 |
| 1,000+ | ₹287.71 | ₹2,87,710.00 |
1 × ₹457.27
₹457.27
excl. GST
₹539.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX1719EUT+T
₹457.27 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Function
- Inverted
- Frequency - Switching
- 125kHz
- Features
- Low-power standby;Cascade support
- Operating Voltage
- 1.5V~5.5V
- Output Current
- 25mA
- Energy Efficiency
- 99.9%
- Quiescent Current
- 350uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.043 g
Overview
The MAX1719/MAX1720/MAX1721 capacitive charge pumps invert the voltage applied to their input. For highest performance, use low equivalent series resistance (ESR) capacitors (e.g., ceramic).
Applications
- Local Negative Supply from a Positive Supply
- Small LCD Panels
- GaAs PA Bias Supply
- Handy-Terminals, PDAs
- Battery-Operated Equipment
Key features
- Ultra-small monolithic, CMOS charge-pump inverters
- Accept input voltages ranging from +1.5V to +5.5V
- The MAX1720 operates at 12kHz, and the MAX1719/MAX1721 operate at 125kHz
- High efficiency
- Small external components
- Logic-controlled shutdown
- Oscillator control circuitry and four power MOSFET switches are included on-chip
- Can deliver a continuous 25mA output current
- 99.9% Voltage Conversion Efficiency
- 50μA Quiescent Current (MAX1720)
- Requires only two 1μF capacitors (MAX1719/MAX1721)
