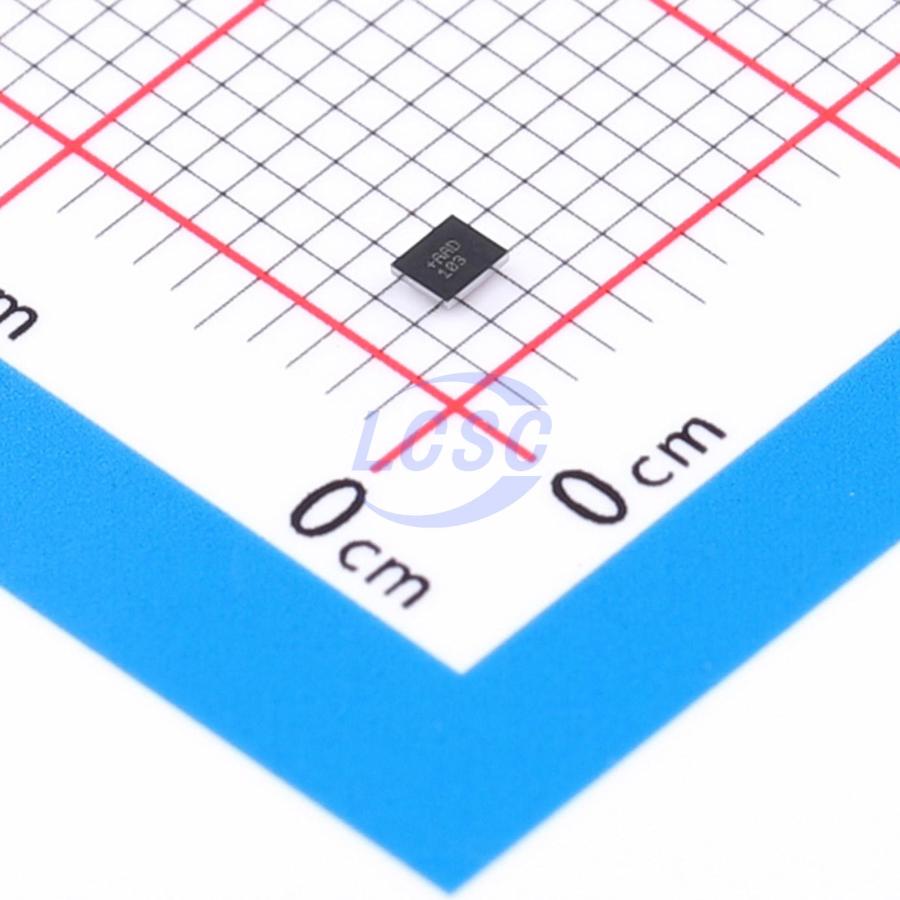

MAX17250ANC+T

The MAX17250 DC-DC boost converter is a high-efficiency, low quiescent current, synchronous boost (step-up) converter with True Shutdown, programmable input current limit, and short-circuit protection. The MAX17250 has a wide input voltage range of 2.7V to 18V and generates an output voltage of 3V to 18V. The MAX17250 has a maximum on-time of 800ns and implements three modes of operation. The first mode of operation is a soft-start mode at power-up. The second mode of operation is normal operation and utilizes a fixed on-time/ minimum off-time Pulse Frequency Modulation (PFM) architecture that uses only 60μA (typ) quiescent current due to the converter switching only when needed. The last mode is True Shutdown, where the output is completely disconnected from the input, and the battery drain is minimized to 0.1μA (typ) shutdown current. The MAX17250 is available in a compact, 12-bump, 1.72mm × 1.49mm WLP or a 14-pin, 3mm x 3mm TDFN package.

Applications

• Digital Cameras
• Battery Powered Internet of Things (IoT) Device
• 1 or 2 Cell Li-ion Battery Applications
• Display Supply Buzzer/Alarm Driver

Key features

• Input Voltage Range 2.7V to 18V
• Output Voltage Range 3V to 18V, >VIN
• Integrated Power FETs
• Selectable Input Peak Current Limit (ISET): 3.5A, 2.7A, or 1.85A
• 93% Efficiency
• Low Power 0.1μA True Shutdown Current
• 60μA Quiescent Current
• Protection: True Shutdown Prevents Current Flowing Between Input and Output
• Soft-Start Inrush Protection
• Short-Circuit Protection
• Overtemperature Protection
• -40℃ to +125℃ Operation
