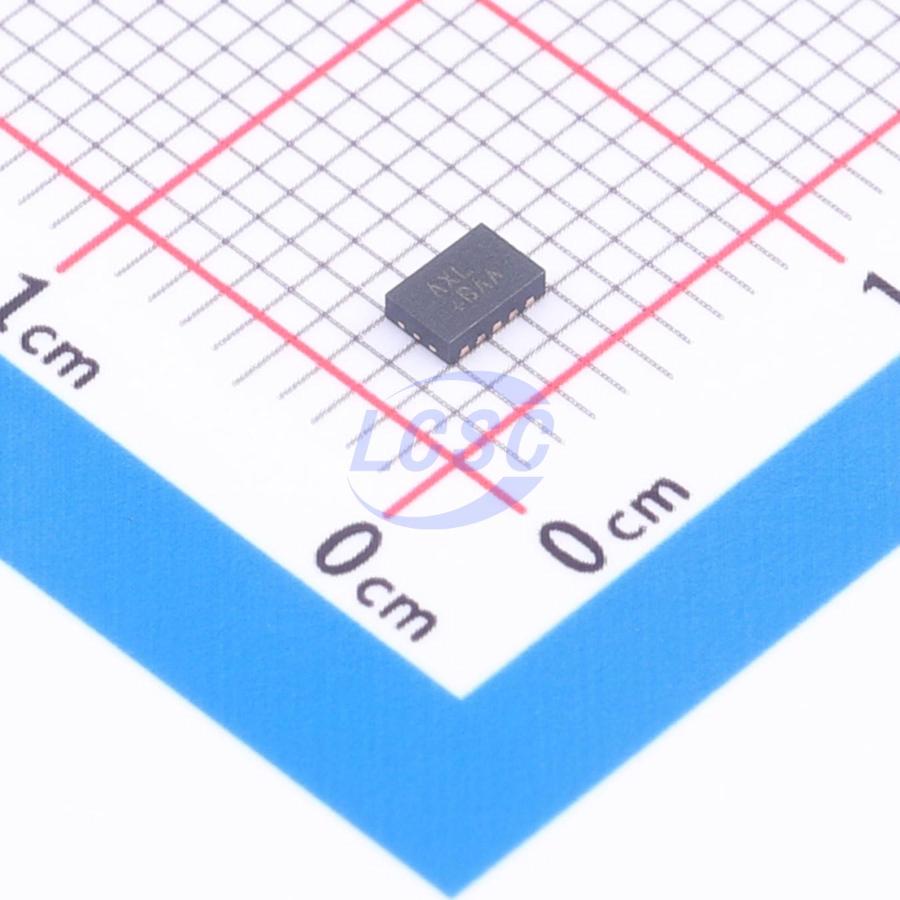

MAX17501AATB+T

600kHz Step-down type Fixed 3.3V 500mA TDFN-10-EP Voltage Regulators - DC DC Switching Regulators

TDFN-10-EPRoHSActive

Manufacturer: MAXIM
Manufacturer part #: MAX17501AATB+T
Store part #: C2071757
Package / case: TDFN-10-EP
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

50 in stock

#C2071757

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
1+	₹1,366.24	₹1,366.24
10+	₹1,175.26	₹11,752.60
30+	₹1,058.62	₹31,758.60
100+	₹960.96	₹96,096.00

Quantity (min 1)

1 × ₹1,366.24

₹1,366.24

excl. GST

₹1,612.16 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

MAX17501AATB+T

₹1,366.24 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Frequency - Switching: 600kHz
Function: Step-down type
Number of Outputs: 1
Features: Adjustable soft-start;Light load efficient mode;Hiccup current limiting;Cycle-by-cycle current limiting;External compensation;Operating status indication;Built-in LDO regulator
Topology: Buck
Output Type: Fixed
Operating Voltage: 4.5V~60V
Switch tube (built-in/external): Built-in
Output Voltage: 3.3V
Output Current: 500mA
Quiescent Current: 90uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.072 g

Overview

The MAX17501 high-efficiency, high-voltage, synchronous step-down DC-DC converter with integrated MOSFETs operates over a 4.5V to 60V input voltage range. This device is offered in a fixed 3.3V, 5V, or adjustable output voltage (0.9V to 92%VIN) while delivering up to 500mA of current. The output voltage is accurate to within ±1.7% over -40°C to +125°C. The MAX17501 is available in a compact TDFN package. Simulation models are available. The device features peak-current-mode control with pulse-width modulation (PWM). Users can choose devices with either pulse frequency modulation (PFM) or forced PWM scheme. PFM devices skip pulses at light load for higher efficiency, while forced-PWM devices operate with fixed switching frequency at any load for noise sensitive applications. The low-resistance, on-chip MOSFETs ensure high efficiency at full load and simplify the layout. A programmable soft-start feature allows users to reduce input inrush current. The device also incorporates an output enable/undervoltage lockout pin (EN/UVLO) that allows the user to turn on the part at the desired input voltage level. An open-drain RESET pin provides a delayed power-good signal to the system upon achieving successful regulation of the output voltage.

Applications

Industrial Process Control
HVAC and Building Control
Base Station, VOIP, Telecom
Home Theatre
Battery-Powered Equipment
General-Purpose Point-of-Load

Key features

Eliminates External Components and Reduce Total Cost
No Schottky-Synchronous Operation for High Efficiency and Reduced Cost
Internal Compensation and Feedback Divider for 3.3V and 5V Fixed Outputs
All-Ceramic Capacitors, Ultra-Compact Layout
Reduces Number of DC-DC Regulators to Stock
Wide 4.5V to 60V Input Voltage Range 0.9V to 92%VIN Adjustable Output Voltage Delivers Up to 500mA 600kHz and 300kHz Switching Frequency Options
Available in a 10-Pin, 3mm×2mm TDFN Package
Reduces Power Dissipation
Peak Efficiency >90%
PFM Feature for High Light-Load Efficiency
Shutdown Current = 0.9μA (typ)
Operates Reliably in Adverse Industrial Environments
Hiccup-Mode Current Limit, Sink Current Limit, and Autoretry Startup Built-In Output-Voltage Monitoring (Open-Drain RESET Pin) Resistor-Programmable EN/UVLO Threshold Adjustable Soft-Start and Prebiased Power-Up High Industrial -40°C to +125°C Ambient Operating Temperature Range/-40°C to +150°C Junction Temperature Range
