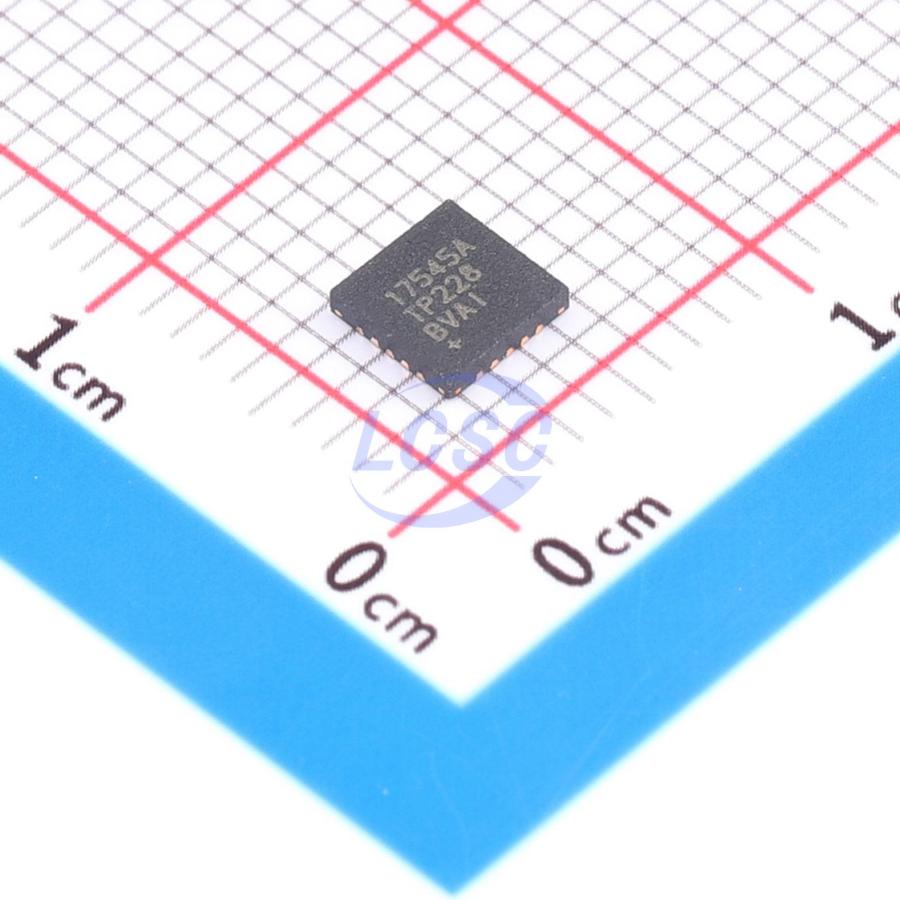

MAX17545ATP+

100kHz~2.2MHz Step-down type Adjustable 1.7A 900mV~37.8V TQFN-20(4x4) Voltage Regulators - DC DC Switching Regulators RoHS

TQFN-20(4x4)ROHS3 CompliantActive

4.5V-42V, 1.7A, High-Efficiency, Synchronous Step-Down DC-DC Converter

Manufacturer: MAXIM
Manufacturer part #: MAX17545ATP+
Store part #: C1355734
Package / case: TQFN-20(4x4)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

10 in stock

#C1355734

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
1+	₹580.53	₹580.53
10+	₹566.01	₹5,660.10
30+	₹556.18	₹16,685.40
75+	₹546.54	₹40,990.50

Quantity (min 1)

1 × ₹580.53

₹580.53

excl. GST

₹685.03 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 75 per tube

MAX17545ATP+

₹580.53 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃
Frequency - Switching: 100kHz~2.2MHz
Function: Step-down type
Number of Outputs: 1
Features: Adjustable soft-start;Frequency synchronization;Hiccup current limiting;Cycle-by-cycle current limiting;Built-in LDO regulator;Operating status indication;Light load efficient mode
Output Type: Adjustable
Topology: Buck
Operating Voltage: 4.5V~42V
Switch tube (built-in/external): Built-in
Output Current: 1.7A
Output Voltage: 900mV~37.8V
Quiescent Current: 118uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tube-packed
Standard pack: 75 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 0.73 g

Overview

The MAX17545 high-efficiency, high-voltage, synchronous step-down DC-DC converter with integrated MOSFETs operates over 4.5V to 42V input. The converter can deliver up to 1.7A and generates output voltages from 0.9V up to 0.9×VIN. The feedback (FB) voltage is accurate to within ±1.1% over -40℃ to +125℃. The MAX17545 uses peak-current-mode control. The device can be operated in pulse-width modulation (PWM), pulse-frequency modulation (PFM), or discontinuous conduction mode (DCM) control schemes. The device is available in a 20-pin (4mm×4mm) TQFN package. Simulation models are available.

Applications

Industrial Power Supplies
Distributed Supply Regulation
High-Voltage Single-Board Systems
Base Station Power Supply General-Purpose Point-of-Load

Key features

Reduces External Components and Total Cost
No Schottky—Synchronous Operation
Internal Compensation for Any Output Voltage
Built-In Soft-Start
All-Ceramic Capacitors, Compact Layout
Reduces Number of DC-DC Regulators to Stock
Wide 4.5V to 42V Input
Adjustable 0.9V to 0.9×VIN Output
100kHz to 2.2MHz Adjustable Switching Frequency with External Synchronization
Reduces Power Dissipation
Peak Efficiency >90%
PFM/DCM Enables Enhanced Light-load Efficiency
2.8μA Shutdown Current
Operates Reliably in Adverse Industrial Environments
Peak Current-Limit Protection Built-in Output Voltage Monitoring with RESET
Programmable EN/UVLO Threshold
Monotonic Startup into Prebiased Load
Overtemperature Protection
High Industrial -40℃ to +125℃ Ambient Operating Temperature Range/-40℃ to +150℃ Junction Temperature Range
