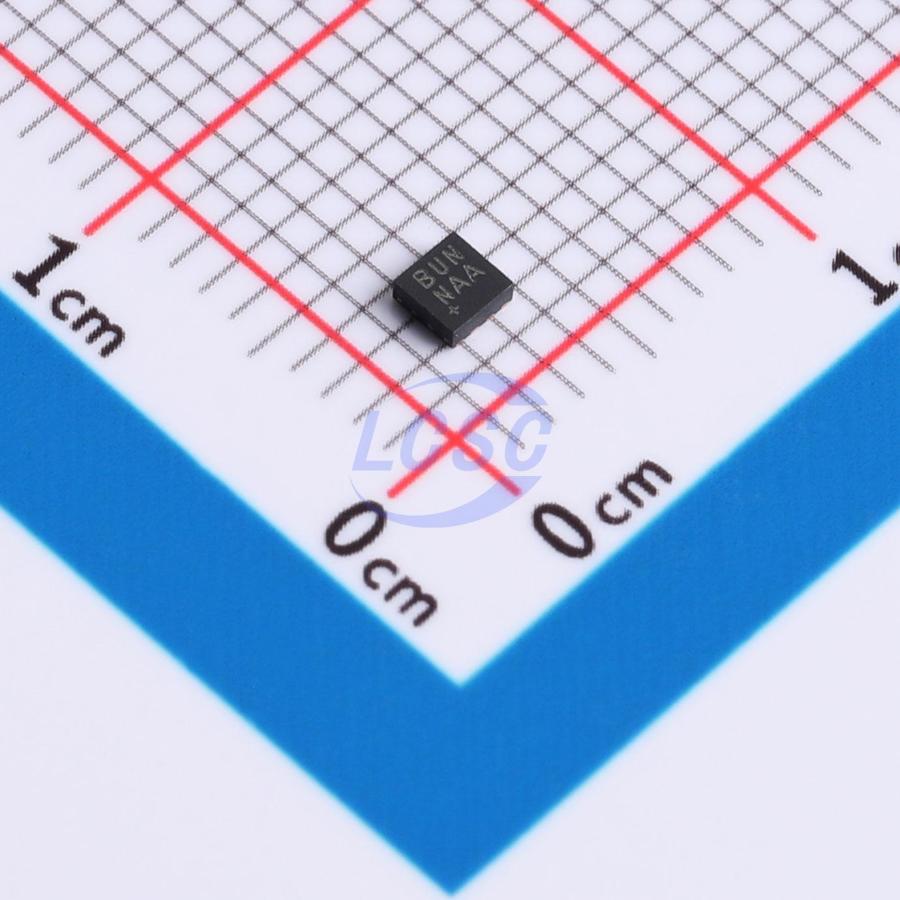

MAX17554BATA+

70kHz Step-down type Fixed 5V 50mA TDFN-8(2x2) Voltage Regulators - DC DC Switching Regulators RoHS

TDFN-8(2x2)ROHS3 CompliantActive

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

17 in stock

#C20265487

Stock & price checked 3 days ago

Quantity (min 1)

1 × ₹331.81

₹331.81

excl. GST

₹391.54 incl. 18% GST

MAX17554BATA+

₹331.81 for 1 + GST

Specifications

Operating Temperature: -40℃~+125℃
Number of Outputs: 1
Frequency - Switching: 70kHz
Function: Step-down type
Features: Hiccup current limiting;Light load efficient mode;Overcurrent Protection
Topology: Buck
Output Type: Fixed
Operating Voltage: 10V~60V
Switch tube (built-in/external): Built-in
Output Voltage: 5V
Output Current: 50mA
Quiescent Current: 181uA

Reduces External Components and Total Cost
No Schottky–Synchronous Operation
Internal Control Loop Compensation
Internal Fixed Soft-Start
Fixed Turn ON/OFF Input Voltage (MAX17554)
All-Ceramic Capacitors, Ultra-Compact Layout Reduces Number of DC-DC Regulators to Stock
Wide 4V to 60V Input Voltage (MAX17555)
Wide 10V to 60V Input Voltage (MAX17554)
Fixed 3.3V (MAX17554A, MAX17555A) and 5V (MAX17554B, MAX17555B) Output Voltage Options
Adjustable Output Range from 0.8V up to 90% of VIN (MAX17554C, MAX17555C)
Deliver up to 50mA of Load Current
Reduced Power Dissipation
Higher Light-Load Efficiency with Discontinuous Conduction Mode (DCM) Operation
Power Loss Reduction with External Boot-Strap Input (FB/VO) for Internal Circuitry (Fixed Output Part Options)
Fixed 70kHz Switching Frequency
3.8μA Shutdown Current (MAX17555)
Programmable EN/UV and HYST Threshold (MAX17555)
Open-Drain Output (RESET) for Output Status Monitoring (MAX17555)
Built-in Hiccup Mode Overload Protection
Overtemperature Protection
CISPR32 Class B Compliant
Wide -40°C to +125°C Ambient Operating Temperature, -40°C to +150°C Junction Temperature
