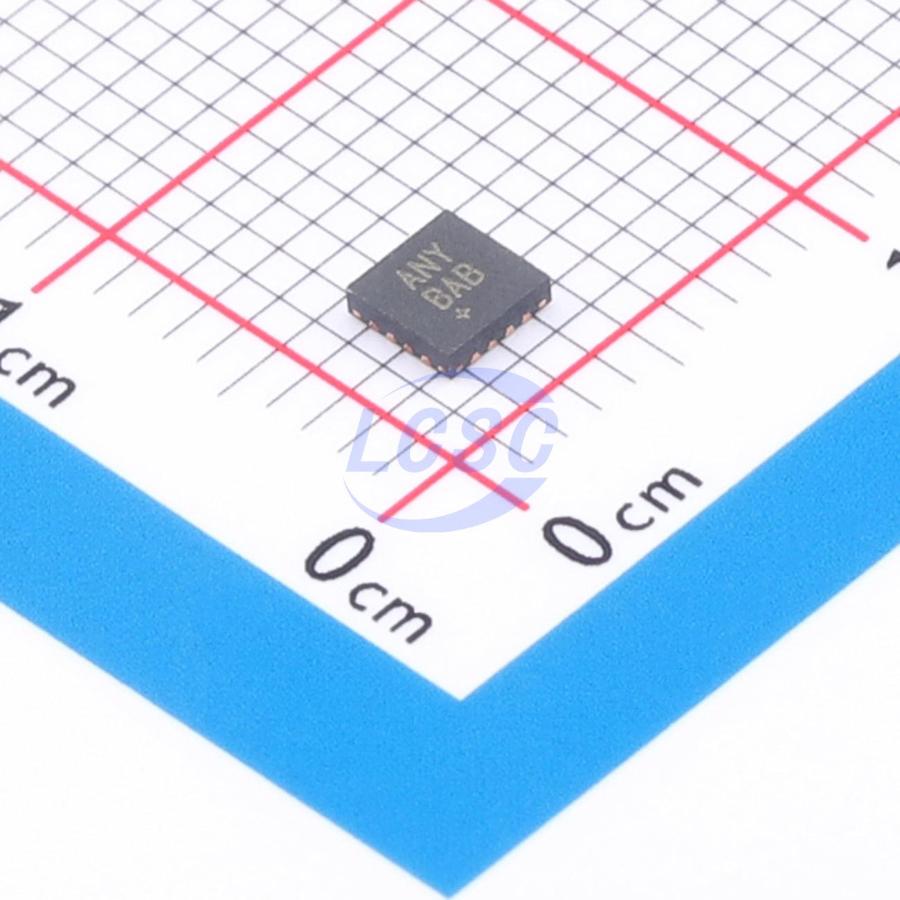

MAX17662BATE+T

400kHz~2.2MHz Step-down type Adjustable 2A 600mV~32.4V TQFN-16(3x3) Voltage Regulators - DC DC Switching Regulators RoHS

TQFN-16(3x3)ROHS3 CompliantActive

3.5V to 36V, 2A, High-Efficiency, Synchronous Step-Down DC-DC Converter

Manufacturer: MAXIM
Manufacturer part #: MAX17662BATE+T
Store part #: C3188364
Package / case: TQFN-16(3x3)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

10 in stock

#C3188364

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
1+	₹682.65	₹682.65
10+	₹665.27	₹6,652.70
30+	₹653.68	₹19,610.40
100+	₹642.09	₹64,209.00

Quantity (min 1)

1 × ₹682.65

₹682.65

excl. GST

₹805.53 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

MAX17662BATE+T

₹682.65 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TA)
Frequency - Switching: 400kHz~2.2MHz
Function: Step-down type
Number of Outputs: 1
Features: Adjustable current limiting;Cycle-by-cycle current limiting;Hiccup current limiting;Adjustable soft-start;Built-in LDO regulator;Operating status indication;Overcurrent Protection;Light load efficient mode
Output Type: Adjustable
Topology: Buck
Operating Voltage: 3.5V~36V
Switch tube (built-in/external): Built-in
Output Current: 2A
Output Voltage: 600mV~32.4V
Quiescent Current: 2mA;8.2mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.02 g

Overview

The Himalaya series of voltage regulator ICs, power modules, and chargers enables cooler, smaller, and simpler power supply solutions. The MAX17662 is a high-efficiency, Himalaya synchronous step-down DC-DC converter with integrated MOSFETs operating over an input-voltage range of 3.5V to 36V. It can deliver up to 2A current. Output voltage is programmable from 0.6V up to 90% of VIN. Built-in compensation across the output-voltage range eliminates the need for external compensation components. The MAX17662 features a peak-current-mode control architecture. The MAX17662 can be operated in forced pulse-width modulation (PWM), or discontinuous-conduction mode (DCM) to enable high efficiency under full-load and light-load conditions. The MAX17662 offers a low minimum on-time that allows high switching frequencies and a smaller solution size. The feedback-voltage regulation accuracy over -40°C to +125°C is ±1.33%. The device is available in a 16-pin (3mm×3mm) TQFN-EP package. Simulation models are available.

Applications

Industrial Control Power Supplies
General-Purpose Point-of-Load
Distributed Supply Regulation
Base Station Power Supplies
Wall Transformer Regulation
High-Voltage, Single-Board Systems

Key features

Reduces External Components and Total Cost
No Schottky—Synchronous Operation
Internal Compensation Components
All-Ceramic Capacitors, Compact Layout
Reduces Number of DC-DC Regulators to Stock
Wide 3.5V to 36V Input
Adjustable Output Voltage Range from 0.6V up to 90% of VIN
Delivers Up to 2A Over the Temperature Range
400kHz to 2.2MHz Adjustable Frequency
Reduces Power Dissipation
Peak Efficiency of 95%
DCM Mode Enable Enhanced Light-Load Efficiency
Wide 2.4V to 12V Bootstrap Bias Input (EXTVCC) for Improved Efficiency
6.5μA Shutdown Current
Operates reliably in Advers
Hiccup-Mode Overload Protection
Adjustable and Monotonic Startup with Prebiased Output Voltage
Built-in Output-Voltage Monitoring with RESET
Programmable EN/UVLO Threshold
Overtemperature Protection
CISPR 32 Class B Compliance
Wide Industrial -40°C to +125°C Ambient Operating Temperature Range/-40°C to +150°C Junction Temperature Range
