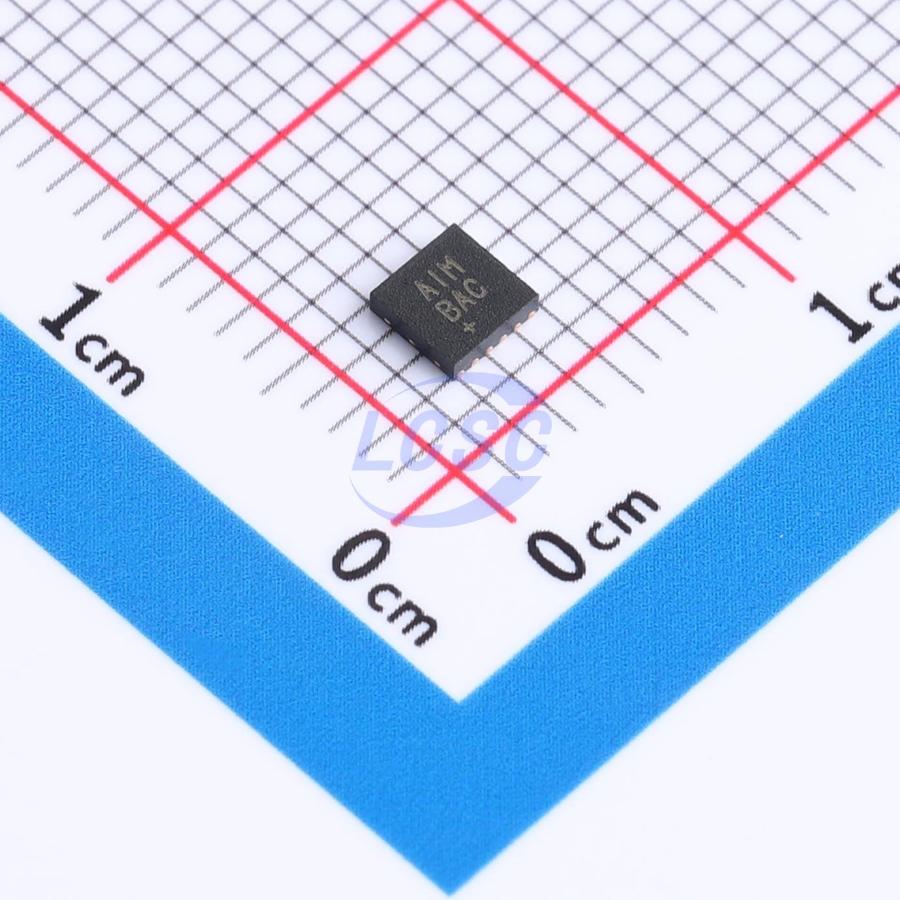

MAX17692AATC+

Maxim's Rainier family of isolated power devices enable cooler, smaller, and simpler power-supply solutions. The MAX17692A/B is a high efficiency no-opto integrated nMOSFET flyback converter that uses fixed frequency peak current mode control. The device senses the isolated output voltage directly from the primary-side flyback waveform during the secondary-side rectifier conduction. No secondary-side error amplifier and optocoupler are required to provide an accurate, isolated, regulated output voltage, saving up to 20% of PCB space normally required for a traditional flyback converter. The MAX17692A/B features a low RDSON, 76V, 205mΩ integrated nMOSFET primary switch and is designed to operate over a wide supply range from 4.2V to 60V. The switching frequency of the device is programmable from 100kHz to 350kHz. An EN/UVLO feature allows the user to turn ON/OFF the power converter precisely at the desired input voltage. Input overvoltage protection can be implemented using the OVI pin (MAX17692A only). Softstart limits inrush current at startup. The MAX17692A/B supports external clock synchronization to avoid low-frequency “beats” on the input bus in systems with multiple converters. The device also has programmable frequency dithering for low-EMI, spread-spectrum operation. The MAX17692A/B allows temperature compensation for variations in the output rectifier diode forward voltage drop. The MAX17692A is internally compensated for loop stability, while the MAX17692B offers external loop compensation flexibility. The MAX17692A/B has robust hiccup-protection and thermal protection schemes, and is available in a space-saving 12-pin, 3mm x 3mm TDFN package with a temperature range from -40°C to +125°C.

Applications

• Isolated Power Supplies
• PLC I/O Modules
• IGBT Gate Drive Supplies
• Industrial and Telecom Applications

Key features

• Reduces External Components and Total Cost
• Eliminates the Optocoupler and Secondary-Side Error Amplifier
• Up to 20% Space Savings
• 76V, Low RDSON Integrated nMOSFET
• Internal Loop Compensation (MAX17692A)
• Built-In Soft-Start
• Reduces Power Dissipation
• Delivers up to 3.5W Output Power
• Frequency Fold-Back Enables Enhanced LightLoad Efficiency
• 2.5μA Shutdown Current
• Supports Key System-Level Design Requirements
• Frequency Dithering Supports Low-EMI, SpreadSpectrum Operation
• Switching Frequency Synchronization to External Clock
• Operates Reliably in Adverse Environments
• Output Diode Forward Voltage Temperature Compensation
• Hiccup Current-Limit Protection
• Programmable EN/UVLO Threshold
• Input Overvoltage (OVI) Protection (MAX17692A)
• Overtemperature Protection
• High Industrial -40°C to +125°C Ambient Operating Temperature Range/ -40°C to +150°C Junction Temperature Range
