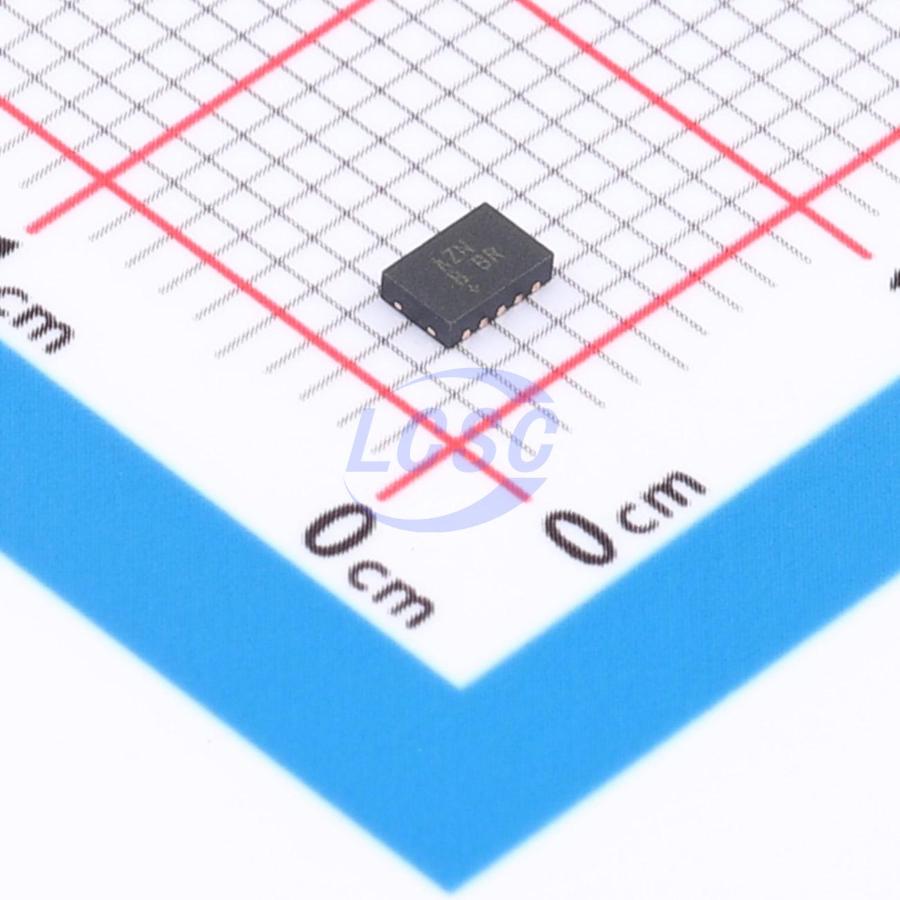

MAX20019ATBA/V+T

MAX20019/MAX20020 are 2.2MHz and 3.2MHz dual step-down converters with integrated high-side and lowside MOSFETs. The high-voltage step-down converter is designed for continuous operation up to 17V input voltages. The output voltage is factory preset. Buck 1 is preset to 3.3V, 3.0V, or 2.8V. Buck 2 is preset to 1.8V, 1.5V, 1.2V, or 1V. Another option is Buck 1 preset to 5V and Buck 2 preset to 3.3V. The low-voltage buck features fixed-frequency PWM mode operation with a switching frequency of 2.2MHz or 3.2MHz. High-frequency operation allows for an all-ceramic capacitor design and small-size external components. The low-resistance on-chip switches ensure high efficiency while minimizing critical inductance. A 500mV enable hysteresis on the MAX20019 allows the use of long, low-cost coax cables, even during slow start-up situations. The MAX20020’s Buck 1 starts after VSUP is greater than 5.5V and Buck 1 is driven by the EN input. Protection features include overvoltage (OV) protection, cycle-by-cycle current limit, and thermal shutdown with automatic recovery. The buck converters operate 180° out-of-phase from each other to minimize input-current ripple.

Applications

• Surround-View Camera Power Supplies
• Automotive Point-of-Load

Key features

• Small Solution Size
• 2mm×3mm×0.75mm 10-pin TDFN with an Exposed Pad
• 2.2MHz and 3.2MHz Operation Allows Smaller System Size
• No External Components Needed for Soft-Start
• Cable Flexibility
• 500mV Enable Hysteresis Allows for Long, Low-Cost Cables During Slow Starts
• EMI Solutions
• Optional Spread-Spectrum Frequency Modulation
• Pinout Placement Allows for Tight PCB Layout of Switching Nodes
• Self-Protected
• Overvoltage Protection, Thermal Shutdown, Short-Circuit Protection
• Automotive Ready
• Wide 3.5V to 17V Input Voltage Range for Power-Over-Coax
• Automotive Temperature Range -40℃ to +125℃
• AEC-Q100 Qualified
