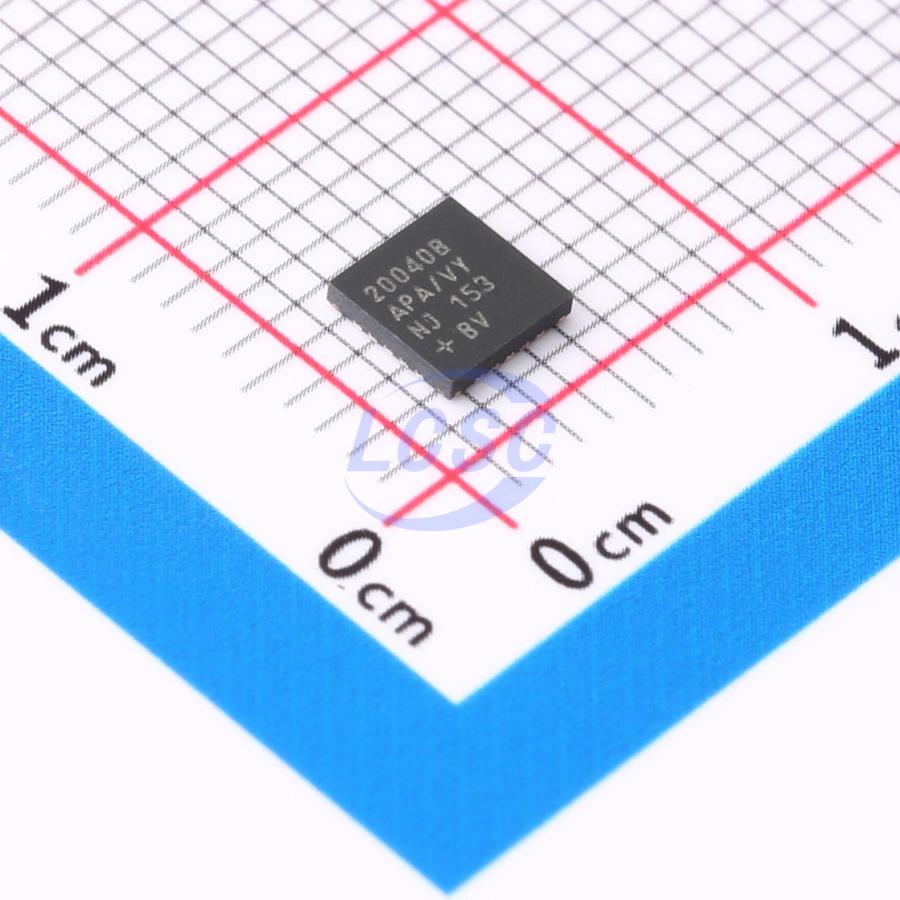

MAXIM

MAX20040BATPA/VY+T

200kHz~2.2MHz Buck-Boost Fixed 5V 1.2A TQFN-20-EP(4x4) Voltage Regulators - DC DC Switching Regulators RoHS

TQFN-20-EP(4x4)ROHS3 CompliantActive

Automotive, 2V to 36V, 2.2MHz, Buck-Boost Converters with Integrated H-Bridge Architecture

Manufacturer: MAXIM
Manufacturer part #: MAX20040BATPA/VY+T
Store part #: C3188672
Package / case: TQFN-20-EP(4x4)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

17 in stock

#C3188672

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹638.25	₹638.25
10+	₹545.79	₹5,457.90
30+	₹490.69	₹14,720.70
100+	₹434.95	₹43,495.00
500+	₹409.23	₹2,04,615.00
1,000+	₹397.56	₹3,97,560.00

Quantity (min 1)

1 × ₹638.25

₹638.25

excl. GST

₹753.14 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

MAX20040BATPA/VY+T

₹638.25 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃
Frequency - Switching: 200kHz~2.2MHz
Function: Buck-Boost
Number of Outputs: 1
Features: Cycle-by-cycle current limiting;Hiccup current limiting;Frequency synchronization;EMI optimization (spread spectrum);External compensation;Light load efficient mode;Operating status indication;Overcurrent Protection;Built-in LDO regulator
Output Type: Fixed
Topology: Buck-Boost
Operating Voltage: 2V~36V
Switch tube (built-in/external): Built-in
Output Voltage: 5V
Output Current: 1.2A
Quiescent Current: 52uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.335 g

Overview

The MAX20039/MAX20040 ICs are a small, synchronous buck-boost converter family with integrated high-side and low-side switches. The MAX20040 is designed to deliver up to 1.2A with input voltages from 2V to 36V while using only 52μA quiescent current at no load. The ICs provide an accurate output voltage of ±2%. Voltage quality can be monitored by observing the PGOOD signal. The MAX20039/MAX20040 offer a fixed output voltage of 5V and a programmable range of 4.0V to 15V. Frequency is adjustable from 220kHz to 2.2MHz, which allows for small external components, reduced output ripple, and guarantees no AM interference. Skip mode with low quiescent current of 52μA is available in the MAX20040B and MAX20040D versions of the IC. The ICs can operate with spread-spectrum frequency modulation designed to minimize EMI-radiated emissions due to the modulation frequency. The MAX20039/MAX20040 are available in a small (4mm × 4mm), 20-pin, side-wettable TQFN package and use very few external components.

Applications

Infotainment Systems
Body Electronics
Start-Stop Systems
Point-of-Load (POL) Power Supply
Power over Coax (PoC)

Key features

Meets Stringent Automotive Quality and Reliability Requirements
2V to 36V Operating VIN Allows Operation in ColdCrank Conditions Tolerates Input Transients Up to 40V
EN Pin Compatible from 3.3V to 40V
0.6A (max) Output Current (MAX20039)
1.2A (max) Output Current (MAX20040)
-40°C to +125°C Automotive Temperature Range
AEC-Q100
Increased Efficiency with Reduced BOM Cost and Board Space
Integrated FETs H-Bridge Architecture
Fixed Output Voltages
20-Pin SWTQFN Package
Low Quiescent Current Helps Designers Meet Stringent OEM Current Requirements (B and D Version only)
52μA Quiescent Current when in Standby Mode
10μA (max) Quiescent Current in Shutdown Mode
