MAXIMDatasheet (PDF)

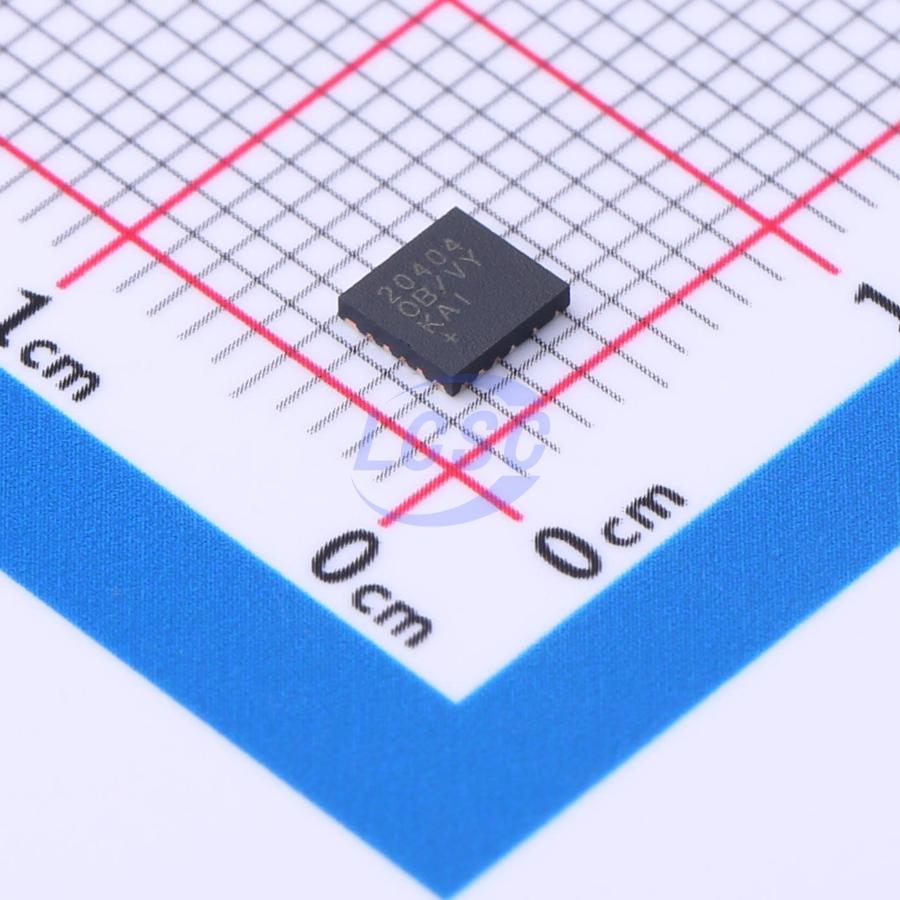

MAX20404AFOB/VY+
2.1MHz Step-down type Adjustable 4A 800mV~10V FC2QFN-17(3.5x3.8) Voltage Regulators - DC DC Switching Regulators RoHS
FC2QFN-17(3.5x3.8)ROHS3 CompliantActive
Automotive 36V 4A Fully Integrated Synchronous Buck Converter
- Manufacturer
- MAXIM
- Manufacturer part #
- MAX20404AFOB/VY+
- Store part #
- C5307812
- Package / case
- FC2QFN-17(3.5x3.8)
- Packaging
- Tray
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4 in stock
#C5307812
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹428.10 | ₹428.10 |
| 10+ | ₹369.14 | ₹3,691.40 |
| 30+ | ₹303.46 | ₹9,103.80 |
| 100+ | ₹268.00 | ₹26,800.00 |
| 420+ | ₹251.46 | ₹1,05,613.20 |
| 840+ | ₹244.07 | ₹2,05,018.80 |
1 × ₹428.10
₹428.10
excl. GST
₹505.16 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 420 per tray
MAX20404AFOB/VY+
₹428.10 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Frequency - Switching
- 2.1MHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Light load efficient mode;Frequency synchronization;EMI optimization (spread spectrum);Built-in LDO regulator;Overcurrent Protection;Hiccup current limiting;Operating status indication
- Topology
- Buck
- Output Type
- Adjustable
- Operating Voltage
- 3V~36V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 4A
- Output Voltage
- 800mV~10V
- Quiescent Current
- 10uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tray
- Standard pack
- 420 / Tray
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 19.25 g
Overview
The MAX20404/MAX20405/MAX20406 ICs are tiny synchronous buck converters with integrated high-side and low-side switches. The ICs are designed to deliver up to 6A with wide input voltages range from 3V to 36V. Voltage quality can be monitored by observing the PGOOD signal. The MAX20404/MAX20405/MAX20406 can operate in dropout by running at 99% duty cycle, making it ideal for automotive and industrial applications. The MAX20404/MAX20405/MAX20406 offers programmable or fixed output voltages of 5V and 3.3V. Frequency is internally fixed at 2.1MHz (or 400KHz or 3MHz) which allows for small external components, reduced output ripple, and guarantees no AM interference. The MAX20404/ MAX20405/MAX20406 automatically enters skip mode at light loads with ultra-low quiescent current of 10μA at no load. This family of products (including MAX20408/MAX20410) offers a pin-to-pin compatible offering from 4A to 10A in a single-phase configuration, and up to 20A in a dual-phase configuration. This device has also been optimized for dual-phase operation with very high current sharing accuracy. The devices can be ordered with spread-spectrum frequency modulation designed to minimize EMI-radiated emissions due to the modulation frequency. The MAX20404/MAX20405/MAX20406 is available in a small 3.5mm x 3.75mm 17-pin FC2QFN package and uses very few external components.
Applications
- Automotive
- Infotainment systems
- ADAS and other safety critical applications
- Industrial High-Voltage DC-DC Converters
Key features
- Multiple Functions for Small Size
- Operating VIN Range of 3V to 36V
- 10μA Quiescent Current in Skip Mode
- Synchronous DC-DC Converter with Integrated FETs
- 400kHz, 2.1MHz, and 3MHz Fixed-Frequency Options
- Fixed 2.5ms Internal Soft-Start
- Programmable 0.8V to 10V Output, or 3.3V and 5.0V Fixed-Output Options Available
- 3.5mm x 3.75mm 17-Pin FC2QFN Symmetrical Package Offers Superior EMI Performance
- Can Be Used in Dual-Phase Configuration for HighPower Design
- Dynamic Current Sharing via Shared VEA Pin
- Low-Iq Operation Capability in Dual Phase
- ±1% Output-Voltage Accuracy in FPWM Mode at No Load
- Precise Output Voltage Monitoring with PGOOD
