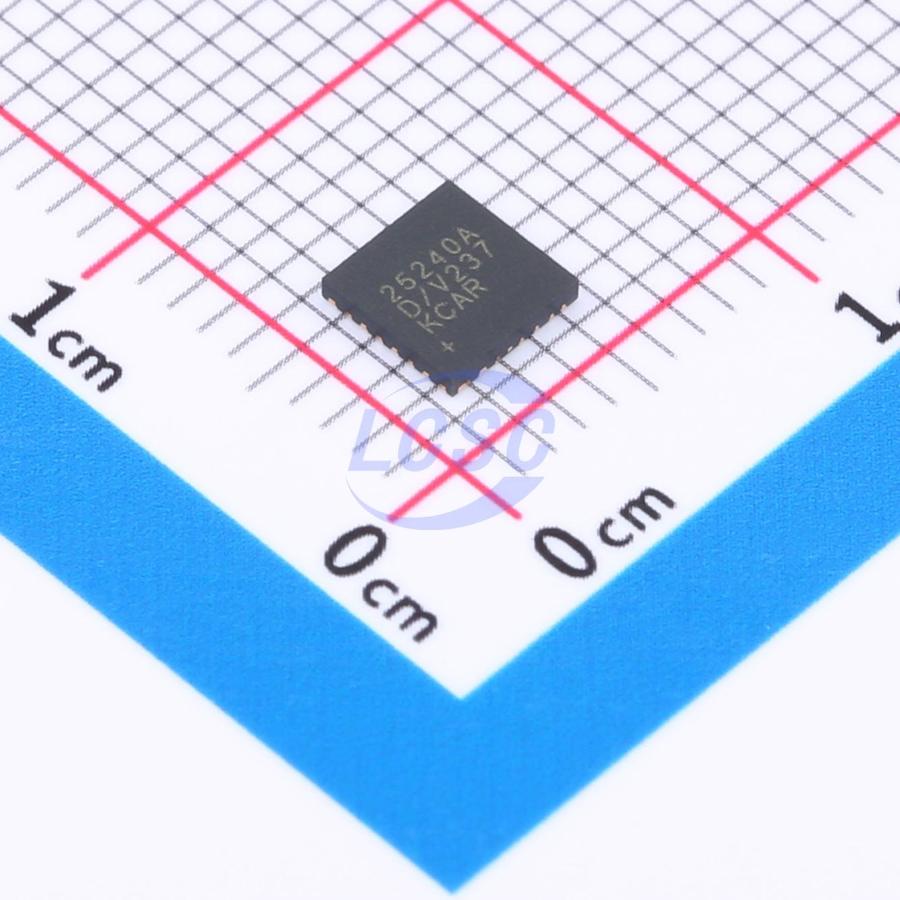

MAX25240AFFD/VY+T

200kHz~2.1MHz Buck-Boost Adjustable and Fixed 5V 6A LFCSP-22(4.25x4.25) Voltage Regulators - DC DC Switching Regulators RoHS

LFCSP-22(4.25x4.25)ROHS3 CompliantActive

2V to 36V 6A automotive synchronous buck-boost converter

Manufacturer: MAXIM
Manufacturer part #: MAX25240AFFD/VY+T
Store part #: C18170722
Package / case: LFCSP-22(4.25x4.25)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

24 in stock

#C18170722

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹1,539.55	₹1,539.55
10+	₹1,323.99	₹13,239.90
30+	₹1,192.53	₹35,775.90
100+	₹1,082.58	₹1,08,258.00

Quantity (min 1)

1 × ₹1,539.55

₹1,539.55

excl. GST

₹1,816.67 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

MAX25240AFFD/VY+T

₹1,539.55 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Frequency - Switching: 200kHz~2.1MHz
Function: Buck-Boost
Number of Outputs: 1
Features: Cycle-by-cycle current limiting;Hiccup current limiting;Frequency synchronization;EMI optimization (spread spectrum);External compensation;Light load efficient mode;Operating status indication;Built-in LDO regulator;Overcurrent Protection
Output Type: Adjustable and Fixed
Topology: Buck-Boost
Operating Voltage: 2V~36V
Switch tube (built-in/external): Built-in
Output Voltage: 5V
Output Current: 6A
Quiescent Current: 95uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.072 g

Overview

The MAX25239/MAX25240 are small, synchronous, buckboost converters with integrated H-bridge switches. These ICs provide a fixed-output regulation voltage and an externally adjustable output voltage in the 3V to 20V range with an input voltage above, below, or equal to the output regulation voltage. The IC has typical 8.2A and 10A input current limit options and can support continuous load currents up to 6A depending on the input-to-output voltage ratio and operating frequency. It also has a wide input voltage range of 2V to 36V.

Applications

ADAS ECU
Infotainment Systems
Body Electronics
Start-Stop Systems
Point-of-Load Power Supplies

Key features

2V to 36V Operating Input Voltage Range Allows Operation in Cold-Crank Conditions Tolerates Input Transients up to 42V EN Pin Compatible up to 42V
8.2A/10A Typical Input Current Limit
Fixed and Adjustable Output Voltage Options
-40°C to +125°C Grade 1 Automotive Temperature Range
2.1MHz/400kHz/200kHz Switching Frequency Options
Phase-Locked Loop (PLL) Frequency Synchronization
Integrated FETs H-Bridge Architecture
Thermally Enhanced, 22-Pin FC2QFN Package
A power-OK (POK) indicator, undervoltage lockout, overvoltage protection, cycle-by-cycle current limit, and thermal shutdown
