MAXIMDatasheet (PDF)

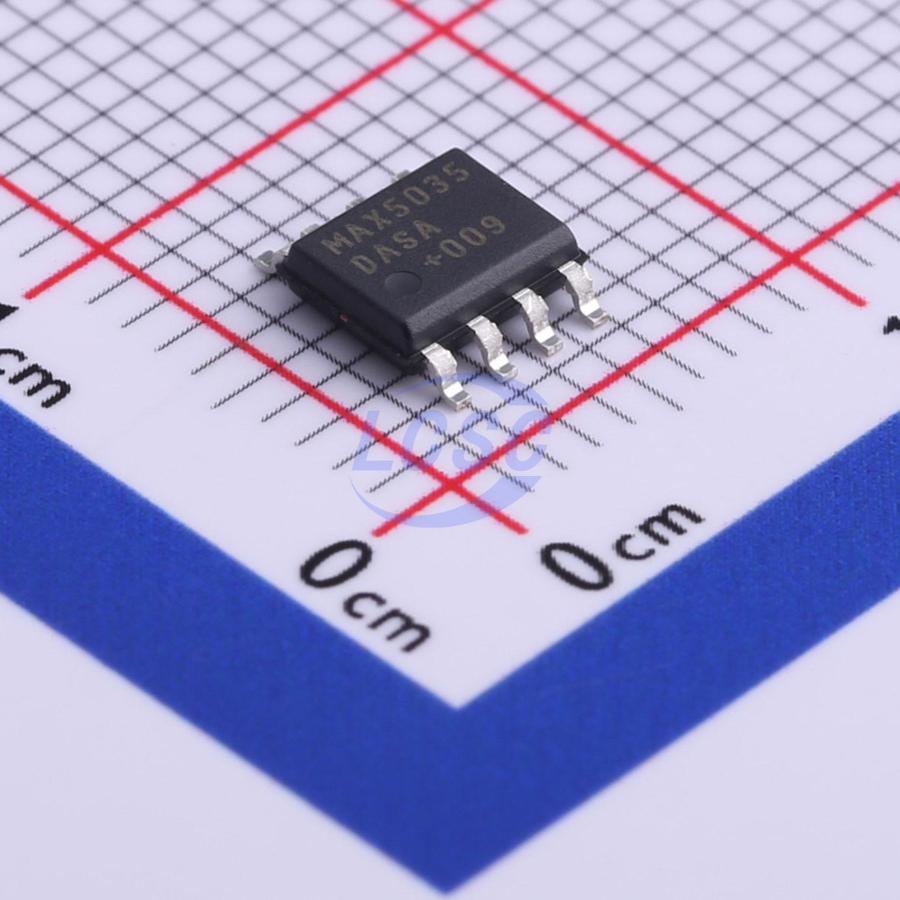

MAX5035DASA+T
Buck Switching Regulator IC Adjustable 1.25V~13.2V 1 Output 1A SOIC-8
SOIC-8ROHS3 CompliantActive
1A, 76V, High-Efficiency MAXPower Step-Down DC-DC Converter
- Manufacturer
- MAXIM
- Manufacturer part #
- MAX5035DASA+T
- Store part #
- C15940
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,624 in stock
#C15940
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹512.28 | ₹512.28 |
| 10+ | ₹453.33 | ₹4,533.30 |
| 30+ | ₹416.35 | ₹12,490.50 |
| 100+ | ₹357.40 | ₹35,740.00 |
| 500+ | ₹340.21 | ₹1,70,105.00 |
| 1,000+ | ₹332.81 | ₹3,32,810.00 |
1 × ₹512.28
₹512.28
excl. GST
₹604.49 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX5035DASA+T
₹512.28 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 125kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Light load efficient mode;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 7.5V~76V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 1.25V~13.2V
- Output Current
- 1A
- Quiescent Current
- 270uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.191 g
Overview
Applications
- Automotive
- Consumer Electronics
- Industrial
- Distributed Power
Key features
- Wide 7.5V to 76V input voltage range
- Fixed (3.3V, 5V, 12V) and adjustable (1.25V to 13.2V) versions
- 1A output current
- Up to 94% efficiency
- Internal 0.4Ω high-side DMOS FET
- 270μA quiescent current at no load, 10μA shutdown current
- Internal frequency compensation
- Fixed 125kHz switching frequency
- Thermal shutdown and short-circuit current limiting
- 8-pin SO and PDIP packages
- Easy-to-use, high-efficiency, high-voltage step-down DC-DC converter with input voltage up to 76V
- PWM converter with fixed 125kHz switching frequency at heavy load, automatically transitions to pulse-skip mode at light load
- Includes UVLO, cycle-by-cycle current limiting, hiccup-mode output short-circuit protection
- External shutdown with typical shutdown current of 10μA
- Operating temperature range: -40°C to +125°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| MAX5035DASA/V+T#C2072515MAXIM · SOIC-8 | MAXIM | SOIC-8 | 5 | ₹1,684.92 · 5 in stock | View | |
 | MAX5035EASA+#C1355554MAXIM · SOIC-8 | MAXIM | SOIC-8 | 10 | ₹1,159.83 · 10 in stock | View |
| MAX5035DASA+#C3192907MAXIM · SOIC-8 | MAXIM | SOIC-8 | On request | ₹585.02 · 0 in stock | View | |
| MAX5035DUSA+T#C2071476MAXIM · SOIC-8 | MAXIM | SOIC-8 | On request | ₹905.84 · 0 in stock | View | |
| MAX5035DASA/V+#C3192931MAXIM · SOIC-8 | MAXIM | SOIC-8 | On request | ₹1,624.72 · 0 in stock | View | |
