MAXIMDatasheet (PDF)

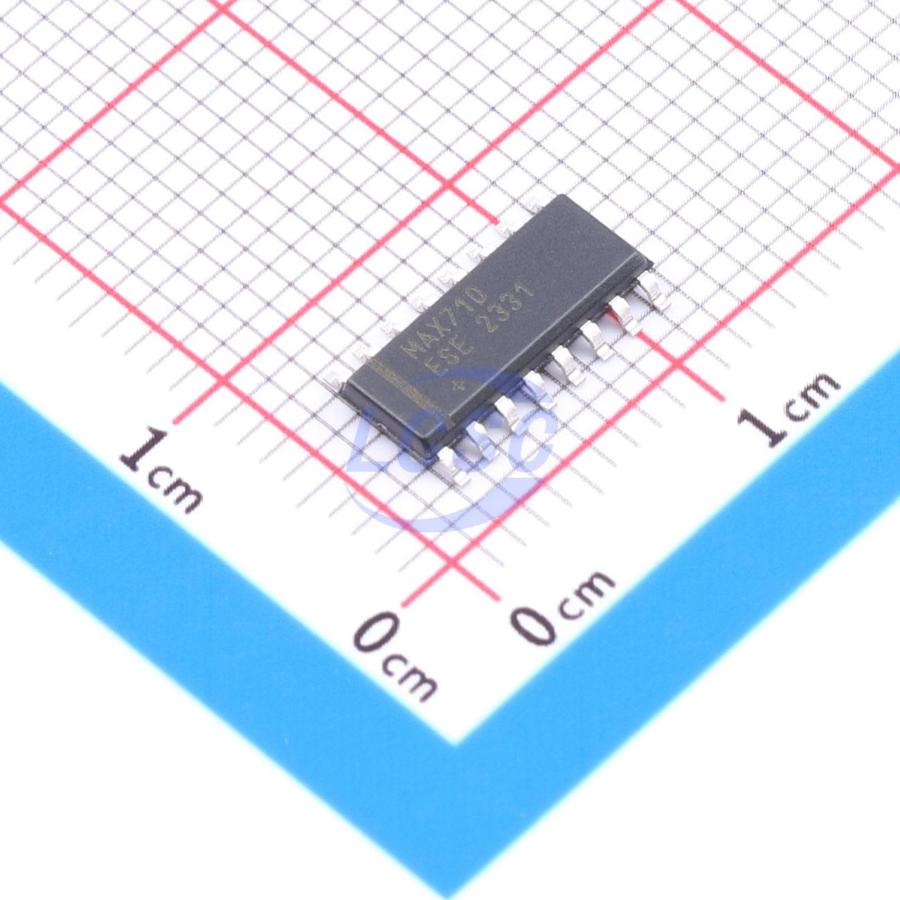

MAX710ESE+T
Fixed 500mA SO-16 Voltage Regulators - DC DC Switching Regulators RoHS
SO-16ROHS3 CompliantActive
- Manufacturer
- MAXIM
- Manufacturer part #
- MAX710ESE+T
- Store part #
- C2071583
- Package / case
- SO-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C2071583
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹2,852.36 | ₹2,852.36 |
| 10+ | ₹2,718.50 | ₹27,185.00 |
| 30+ | ₹2,486.55 | ₹74,596.50 |
| 100+ | ₹2,284.24 | ₹2,28,424.00 |
1 × ₹2,852.36
₹2,852.36
excl. GST
₹3,365.78 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX710ESE+T
₹2,852.36 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Function
- Boost;Step-down type
- Number of Outputs
- 1
- Features
- Adjustable current limiting;Load disconnect;Light load efficient mode
- Output Type
- Fixed
- Topology
- Buck;Boost
- Operating Voltage
- 1.8V~11V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 3.3V;5V
- Output Current
- 500mA
- Quiescent Current
- 100uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.905 g
Overview
The MAX710/MAX711 integrate a step-up DC-DC converter with a linear regulator to provide step-up/down voltage conversion. They are optimized for battery applications where the input varies above and below the regulated output voltage. They have an input range from +1.8V to +11V. Typical efficiency when boosting battery inputs is 85%. The MAX710/MAX711 can be configured for minimum noise or optimum efficiency. Shutdown control turns off the part completely, disconnecting the input from the output (ISHDN = 0.2μA). Standby control turns off only the step-up converter and leaves the low-power linear regulator active (IQ = 7μA). The MAX710 has a preset 3.3V or 5V output voltage. The MAX711 has an adjustable output that can be set from +2.7V to +5.5V with two resistors. Both devices come in 16-pin narrow SO packages.
Applications
- Single-Cell, Lithium-Powered Portable Devices
- Digital Cameras
- 2- to 4-Cell AA Alkaline Hand-Held Equipment
- 3.3V and Other Low-Voltage Systems
- 2-, 3-, and 4-Cell Battery-Powered Equipment
- Battery-Powered Devices with AC Input Adapters
Key features
- Step-Up/Down Voltage Conversion
- +1.8V to +11V Input Range
- Output: 5V/250mA at VIN = 1.8V, 5V/500mA at VIN = 3.6V
- No External FETs Required
- Load Disconnected from Input in Shutdown
- Battery Drain: 200μA No-Load (VIN = 4V), 7μA in Standby, 0.2μA when Off
- Low-Noise and High-Efficiency Modes
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MAX710ESE+#C7454844MAXIM · SOIC-16 | MAXIM | SOIC-16 | 4 | ₹1,474.71 · 4 in stock | View |
