MAXIM

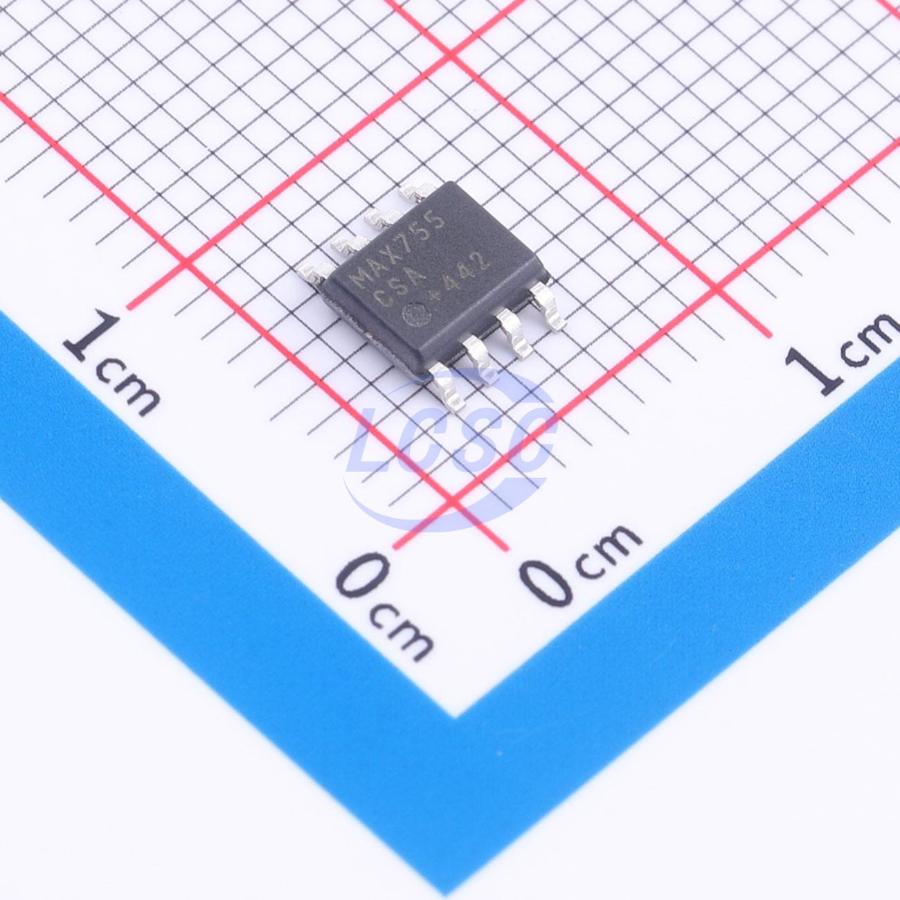

MAX755CSA+

160kHz Buck-Boost Adjustable 125mA SOIC-8 Voltage Regulators - DC DC Switching Regulators RoHS

SOIC-8ROHS3 CompliantActive

-5V/Adjustable, Negative-Output, Inverting, Current-Mode PWM Regulators

Manufacturer: MAXIM
Manufacturer part #: MAX755CSA+
Store part #: C1355640
Package / case: SOIC-8
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

10 in stock

#C1355640

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
1+	₹1,807.05	₹1,807.05
10+	₹1,749.68	₹17,496.80

Quantity (min 1)

1 × ₹1,807.05

₹1,807.05

excl. GST

₹2,132.32 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 100 per tube

MAX755CSA+

₹1,807.05 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: 0℃~+70℃@(TA)
Frequency - Switching: 160kHz
Function: Buck-Boost
Number of Outputs: 1
Features: Overcurrent Protection;Adjustable soft-start
Output Type: Adjustable
Topology: Inverting
Operating Voltage: 2.7V~9V
Switch tube (built-in/external): Built-in
Output Current: 125mA
Quiescent Current: 1.8mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tube-packed
Standard pack: 100 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 0.72 g

Overview

The MAX735 and MAX755 are CMOS, inverting switchmode regulators with internal power MOSFETs. The MAX755 operates from a +2.7V to +9V input and generates an adjustable negative output; 1W output power is guaranteed when powered from a +4.5V input. The MAX735 operates from a +4.0V to +6.2V output; 200mA output current is guaranteed for inputs greater than +4.5V. Quiescent supply current for the MAX735 is typically 1.6mA, and a shutdown mode reduces this to 10μA. These power conserving features, along with high efficiency and applications circuits that lend themselves to miniaturization, make the MAX735/MAX755 excel in a broad range of on-card and portable-equipment applications. The MAX735/MAX755 employ a high-performance current mode pulse-width modulation (PWM) control scheme to provide tight output-voltage regulation and low subharmonic noise. The fixed-frequency oscillator is factory trimmed to 160kHz, allowing for easy noise filtering. The regulators are production tested in actual application circuits, and output accuracy is guaranteed to within ±5% over all specified conditions of line, load, and temperature. The input-to-output differential of the MAX755 is limited to VIN + |VOUT| ≤ 11.7V. The MAX735/MAX755 are monolithic CMOS ICs containing a current-mode PWM controller and a 2A P-channel power MOSFET. Current-mode control provides excellent line-transient response, inherent overcurrent protection, and excellent AC stability. The switch transistor is a current-sensing MOSFET that splits off a fraction of the total source current for current-limit detection.
