MAXIMDatasheet (PDF)

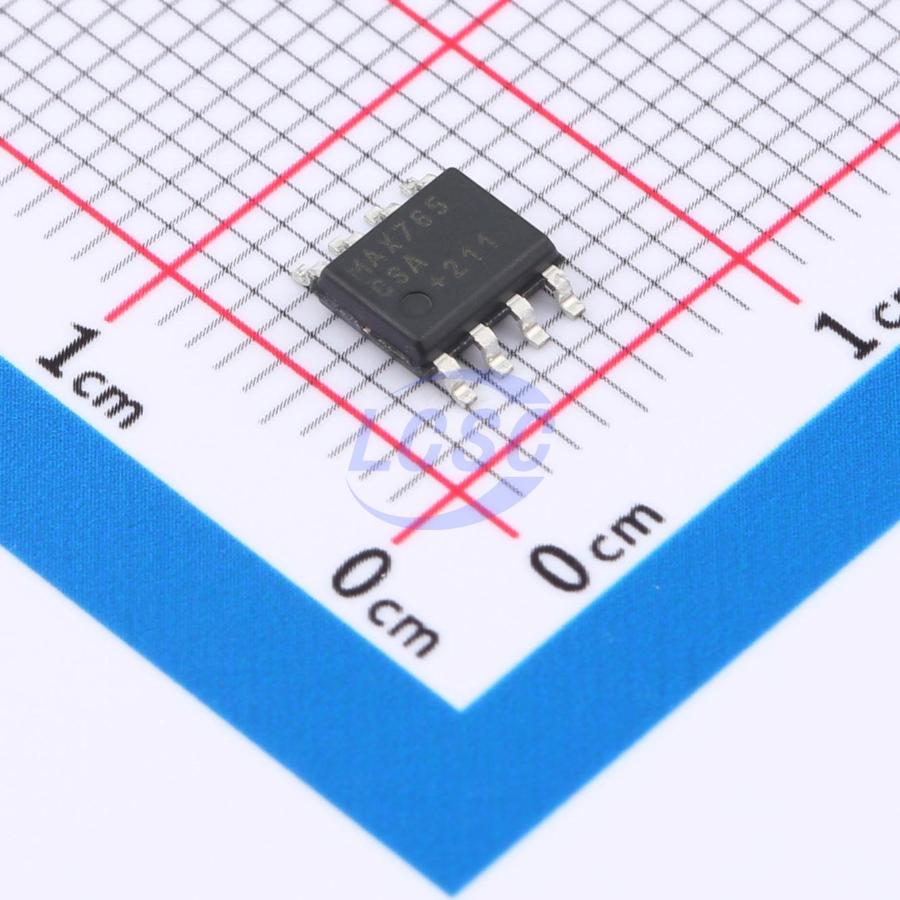

MAX765CSA+
Switching Regulator IC Adjustable 1V~16V 1 Output SOIC-8
SOIC-8ROHS3 CompliantActive
High-Efficiency, Low IQ DC-DC Inverters
- Manufacturer
- MAXIM
- Manufacturer part #
- MAX765CSA+
- Store part #
- C3192646
- Package / case
- SOIC-8
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7 in stock
#C3192646
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,726.86 | ₹1,726.86 |
1 × ₹1,726.86
₹1,726.86
excl. GST
₹2,037.69 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 100 per tube
MAX765CSA+
₹1,726.86 for 1 + GST
Specifications
- Operating Temperature
- 0℃~+70℃
- Frequency - Switching
- 300kHz
- Number of Outputs
- 1
- Features
- Overcurrent Protection;Light load efficient mode;Output discharge
- Output Type
- Adjustable
- Topology
- Inverting
- Operating Voltage
- 3V~16V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 1V~16V
- Output Current
- 120mA
- Quiescent Current
- 90uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 100 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.08 g
Overview
Applications
- LCD-Bias Generators
- Portable Instruments
- LAN Adapters
- Remote Data-Acquisition Systems
- Battery-Powered Applications
Key features
- 250mA Output Current
- 120µA Max Supply Current
- 5µA Max Shutdown Current
- 3V to 16V Input Voltage Range
- -5V (MAX764), -12V (MAX765), -15V (MAX766), or Adjustable Output from -1V to -16V
- Current-Limited PFM Control Scheme
- 300kHz Switching Frequency
- Internal, P-Channel Power MOSFET
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AP1534SG-13#C110462DIODES · SOP-8 | DIODES | SOP-8 | 26,475 | ₹40.99 · 26,475 in stock | View |
 | AP1513SG-13#C32637DIODES · SOIC-8 | DIODES | SOIC-8 | 146 | ₹73.24 · 146 in stock | View |
| MAX765CSA+T#C2073246MAXIM · SOIC-8 | MAXIM | SOIC-8 | On request | ₹630.12 · 0 in stock | View | |
