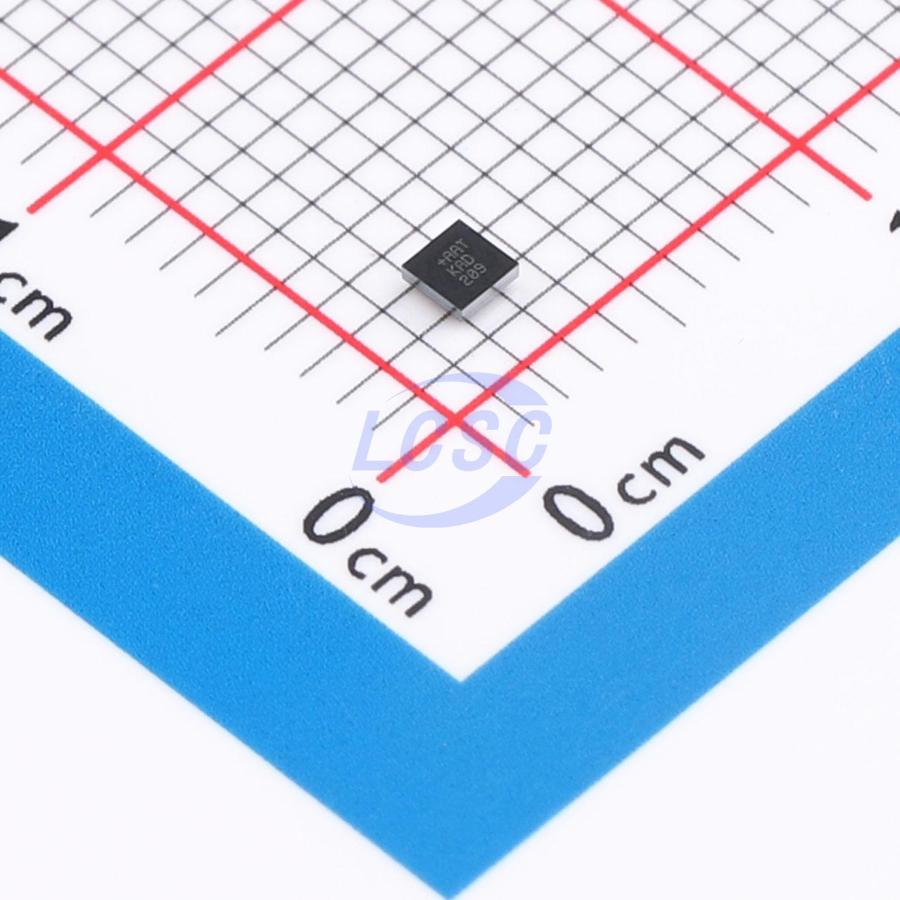

MAX77504BAWE+T
1.5MHz Step-down type Adjustable 3A 600mV~6V WLP-16(1.7x1.7) Voltage Regulators - DC DC Switching Regulators RoHS
WLP-16(1.7x1.7)ROHS3 CompliantActive
- Manufacturer
- MAXIM
- Manufacturer part #
- MAX77504BAWE+T
- Store part #
- C7456486
- Package / case
- WLP-16(1.7x1.7)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30 in stock
#C7456486
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹217.83 | ₹217.83 |
| 10+ | ₹212.25 | ₹2,122.50 |
| 30+ | ₹208.60 | ₹6,258.00 |
| 100+ | ₹204.73 | ₹20,473.00 |
1 × ₹217.83
₹217.83
excl. GST
₹257.04 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX77504BAWE+T
₹217.83 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TA)
- Frequency - Switching
- 1.5MHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Light load efficient mode;Frequency synchronization;Operating status indication;Cycle-by-cycle current limiting;Hiccup current limiting;Output discharge;Built-in LDO regulator
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 2.6V~14V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 3A
- Output Voltage
- 600mV~6V
- Quiescent Current
- 10uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.102 g
Overview
The MAX77504 is a synchronous 3A step-down DC-DC converter optimized for portable 2-cell and 3-cell battery-operated applications. The converter operates on an input supply between 2.6V and 14V. Output voltage is adjustable between 0.6V and 6V with external feedback resistors. The device features a low-IQ SKIP mode that allows excellent efficiency at light loads. The MAX77504 can be synchronized by driving the FPWM pin with an external clock. Dedicated enable, power-OK, and FPWM pins allow simple hardware control. The SEL input easily configures switching frequency, gain, and output active discharge option. Built-in undervoltage lockout (UVLO), output active discharge, cycle-by-cycle inductor current limit, thermal shutdown, and short-circuit protection ensure safe operation under abnormal operating conditions. The MAX77504 is offered in a small 1.7mm x 1.7mm, 16-bump, 0.4mm pitch wafer-level package (WLP) or a 2.5mm x 2.5mm, 12-lead, 0.5mm pitch flip-chip QFN (FC2QFN).
Applications
- 1- to 3-Cell Li+/Li-ion Battery-Powered Devices
- Professional Radio, Handheld Computers
- Mirrorless Cameras, DSLR, and Notebook Computers
- Portable Scanners, POS Terminals, Printers
- Space-Constrained Portable Electronics
Key features
- 3A Single-Channel Buck Regulator
- 2.6V to 14V Input Voltage
- 0.6V to 6V Output Voltage Range
- 0.5MHz to 1.5MHz Fixed-Frequency Switching Options
- High Efficiency, Low IQ Extends Battery Life
- 94% Peak Efficiency at 7.4VIN, 3.3VOUT (2520 Inductor)
- 10μA ISUP (12VIN, 1.8VOUT)
- OUT Powers IL Automatically (VIN > 1.7V) for Low IQ
- Enable Pin (EN) for Direct Hardware Control
- External Clock Synchronization Is Available Through the FPWM/SYNC Pin
- Power-OK Output (POK) Monitors VOUT Quality
- Protection Features
- Cycle-by-Cycle Inductor Current Limit
- Short-Circuit Hiccup Mode, UVLO, and Thermal Shutdown Protection
- Soft-Start
- FC2QFN or WLP Package Option
- 2.5mm x 2.5mm (0.6mm max. height) 12-Lead FC2QFN, 0.5mm Pitch
- 1.7mm x 1.7mm (0.7mm max. height) 16-Bump WLP, 0.4mm Pitch, 4 x 4 Array
- All WLP Package Bumps (Except POK) Routeable on a Non-HDI PCB
Alternatives
Similar parts — check the datasheet before substituting.
