MAXIM

MAX77801ETP+

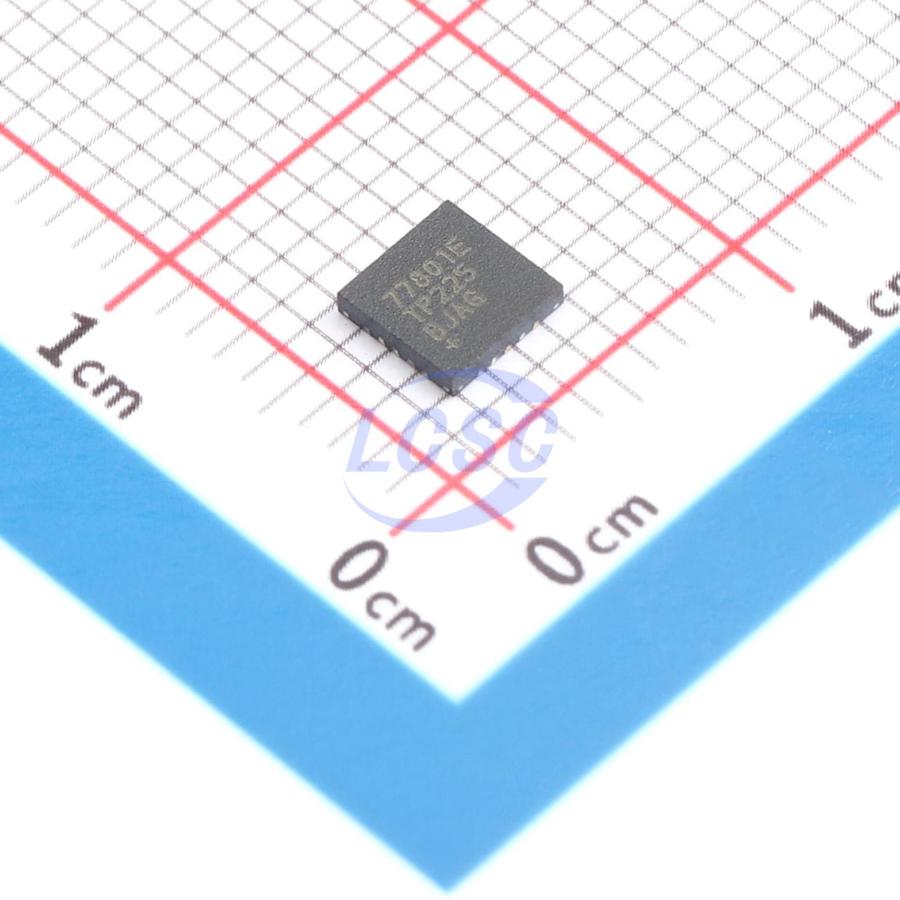

2.5MHz Buck-Boost Adjustable 2A 2.6V~4.1875V TQFN-20(4x4) Voltage Regulators - DC DC Switching Regulators RoHS

TQFN-20(4x4)ROHS3 CompliantActive

5.5V Input, 2A, High-Efficiency Buck-Boost Converter

Manufacturer: MAXIM
Manufacturer part #: MAX77801ETP+
Store part #: C7460803
Package / case: TQFN-20(4x4)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

44 in stock

#C7460803

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
1+	₹405.13	₹405.13
10+	₹395.62	₹3,956.20
30+	₹389.13	₹11,673.90
100+	₹382.65	₹38,265.00

Quantity (min 1)

1 × ₹405.13

₹405.13

excl. GST

₹478.05 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 490 per tube

MAX77801ETP+

₹405.13 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Frequency - Switching: 2.5MHz
Function: Buck-Boost
Number of Outputs: 1
Features: Light load efficient mode;Dynamic voltage scaling;Operating status indication;Overcurrent Protection;Output discharge
Output Type: Adjustable
Topology: Buck-Boost
Operating Voltage: 2.3V~5.5V
Switch tube (built-in/external): Built-in
Output Current: 2A
Output Voltage: 2.6V~4.1875V
Quiescent Current: 55uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tube-packed
Standard pack: 490 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 0.168 g

Overview

The MAX77801 is a high-efficiency, step-up/step-down (buck-boost) converter targeted for single-cell, Li-ion battery-powered applications. The device maintains a regulated output voltage from 2.6V to 4.18V across an input voltage range of 2.3V to 5.5V. The device supports up to 2A of output current in boost mode and up to 3A in buck mode. The device seamlessly transitions between buck and boost modes. A unique control algorithm allows high-efficiency and outstanding load and line-transient response. Dedicated enable and power-OK pins allow simple hardware control. An I2C serial interface is optionally used for dynamic voltage scaling, system power optimization, and fault read-back. The MAX77801 is available in a 20-bump, 2.13mm x 1.83mm wafer-level package (WLP) and also 20-pin, 4mm x 4mm TQFN.

Applications

Single-Cell, Li-Ion Battery-Powered Devices
Handheld Scanners, Mobile Payment Terminals
Security Cameras
AR/VR Headsets

Key features

VIN Range: 2.30V to 5.5V
VOUT Range: 2.60V to 4.18V (I2C Programmable in 12.5mV Steps)
Up to 2A Output Current in Boost Mode (VIN = 3.0V, VOUT = 3.4V)
Up to 3A Output Current in Buck Mode
Up to 97% Peak Efficiency
SKIP Mode for Optimal Light Load Efficiency
55μA (Typ) Low Quiescent Current
3.4MHz High-Speed I2C Serial Interface
Dynamic Voltage Scaling (DVS) Function
Power-OK Output
2.5MHz Switching Frequency
Protection Features: Soft-Start, Thermal Shutdown, Overvoltage Protection, Overcurrent Protection
2.13mm x 1.83mm, 20-Bump WLP
4mm x 4mm, 20-Pin TQFN
