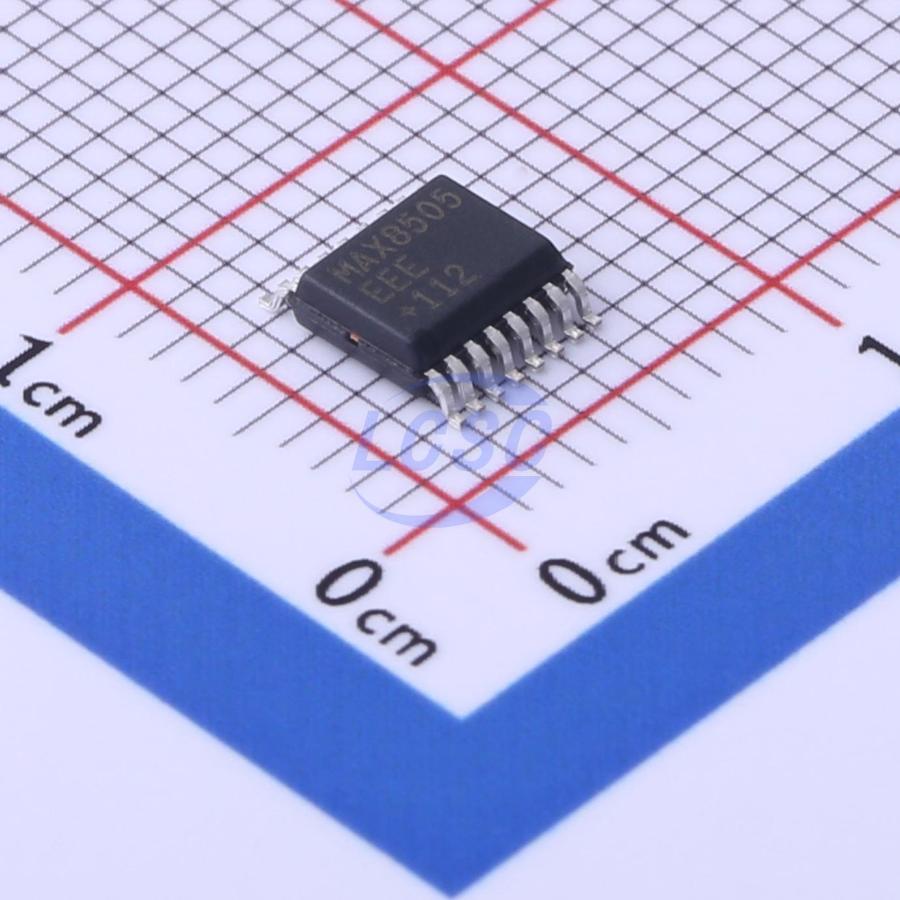

MAX8505EEE+T

500kHz Step-down type Adjustable 800mV~4.675V 3A QSOP-16-150mil Voltage Regulators - DC DC Switching Regulators RoHS

QSOP-16-150milROHS3 CompliantActive

3A, 1MHz, 1% Accurate, Internal Switch Step-Down Regulator with Power-OK

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

8 in stock

#C400188

Stock & price checked 3 days ago

Quantity (min 1)

1 × ₹772.87

₹772.87

excl. GST

₹911.99 incl. 18% GST

MAX8505EEE+T

₹772.87 for 1 + GST

Specifications

Operating Temperature: -40℃~+85℃@(TA)
Frequency - Switching: 500kHz
Function: Step-down type
Number of Outputs: 1
Features: Adjustable soft-start;Overcurrent Protection;Operating status indication
Output Type: Adjustable
Topology: Buck
Operating Voltage: 2.6V~5.5V
Switch tube (built-in/external): Built-in
Output Voltage: 800mV~4.675V
Output Current: 3A
Quiescent Current: 10mA

The MAX8505 step-down regulator operates from a 2.6V to 5.5V input and generates an adjustable output voltage from 0.8V to 0.85×VIN at up to 3A.
With a 2.6V to 5.5V bias supply, the input voltage can be as low as 2.25V.
The MAX8505 integrates power MOSFETs and operates at 1MHz/500kHz switching frequency to provide a compact design.
Current-mode pulse-width modulated (PWM) control simplifies compensation with ceramic or polymer output capacitors and provides excellent transient response.
The MAX8505 features 1% accurate output over load, line, and temperature variations.
Adjustable soft-start is achieved with an external capacitor.
During the soft-start period, the voltage-regulation loop is active.
This limits the voltage dip when the active devices, such as microprocessors or ASICs connected to the MAX8505’s output, apply a sudden load current step upon passing their undervoltage thresholds.
The MAX8505 features current-limit, short-circuit, and thermal-overload protection and enables a rugged design.
Open-drain power-OK (POK) monitors the output voltage.
Saves Space—4.9mm x 6mm Footprint, 1µH Inductor, 47µF Ceramic Output Capacitor
Input Voltage Range 2.6V to 5.5V Down to 2.25V with Bias Supply
0.8V to 0.85×VIN, 3A Output
Ceramic or Polymer Capacitors
±1% Output Accuracy Over Load, Line, and Temperature
Fast Transient Response
Adjustable Soft-Start
In-Regulation Soft-Start Limits Output-Voltage Dips at Power-On
POK Monitors Output Voltage
