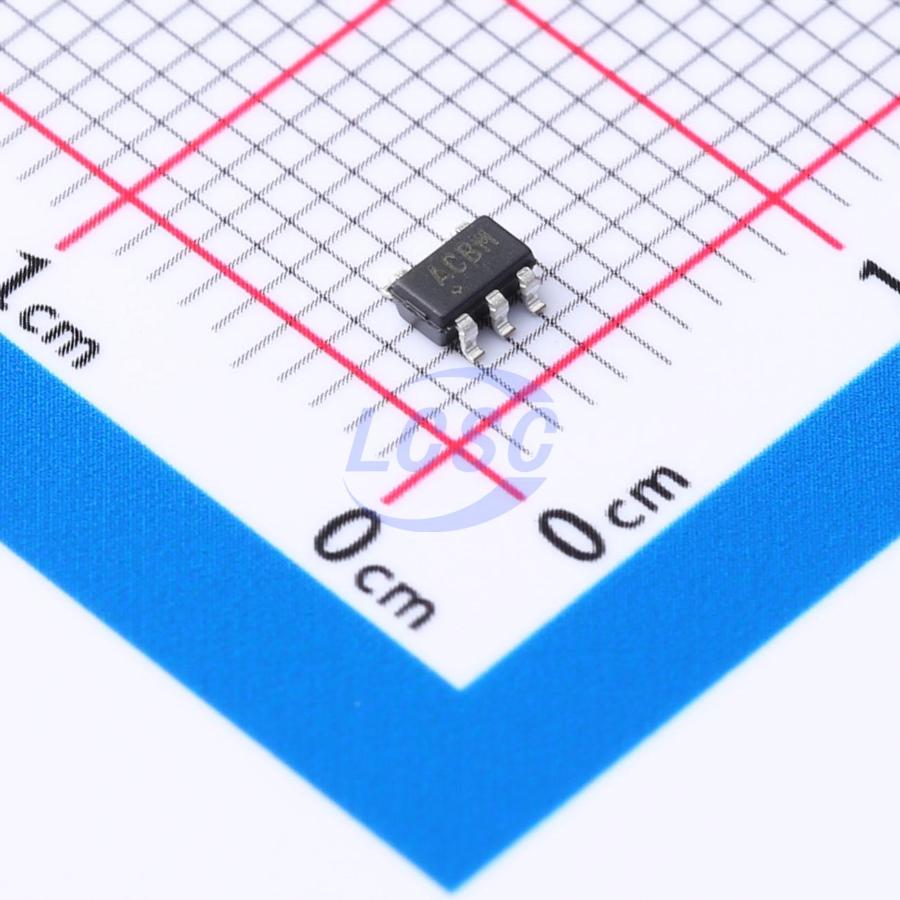

MAX8877EUK25+T

The MAX8877/MAX8878 are low-noise, low-dropout, low-quiescent-current linear regulators designed primarily for battery-powered applications. The parts are available with preset output voltages ranging from 1.5V to 5V, in 100mV increments. These devices can supply loads up to 150mA. The MAX8877/MAX8878 consist of a 1.25V reference, error amplifier, P-channel pass transistor, and internal feedback voltage divider. The 1.25V bandgap reference is connected to the error amplifier’s inverting input. The error amplifier compares this reference with the feedback

Applications

• Cellular Telephones
• Cordless Telephones
• PCS Telephones
• PCMCIA Cards
• Modems
• Hand-Held Instruments
• Palmtop Computers
• Electronic Planners

Key features

• Pin-Compatible with the Industry-Standard '2982
• Low Output Noise: 30µVRMS
• Low 55mV Dropout at 50mA Output (165mV at 150mA output)
• Low 85µA No-Load Supply Current
• Low 100µA Operating Supply Current (even in dropout)
• Thermal-Overload and Short-Circuit Protection
• Reverse Battery Protection
• Output Current Limit
• Preset Output Voltages (±1.4% Accuracy)
• 10nA Logic-Controlled Shutdown
• The MAX8877/MAX8878 low-noise, low-dropout linear regulators operate from a 2.5V to 6.5V input and deliver up to 150mA.
• These devices offer an improved dropout voltage.
• Designed with an internal P-channel MOSFET pass transistor, the MAX8877/MAX8878 maintain a low 100µA supply current, independent of the load current and dropout voltage.
• Other features include a 10nA logic-controlled shutdown mode, short-circuit and thermal-shutdown protection, and reverse battery protection.
• The MAX8878 also includes an auto-discharge function, which actively discharges the output voltage to ground when the device is placed in shutdown.
• Both devices come in regular and thin 5-pin SOT23 packages.
