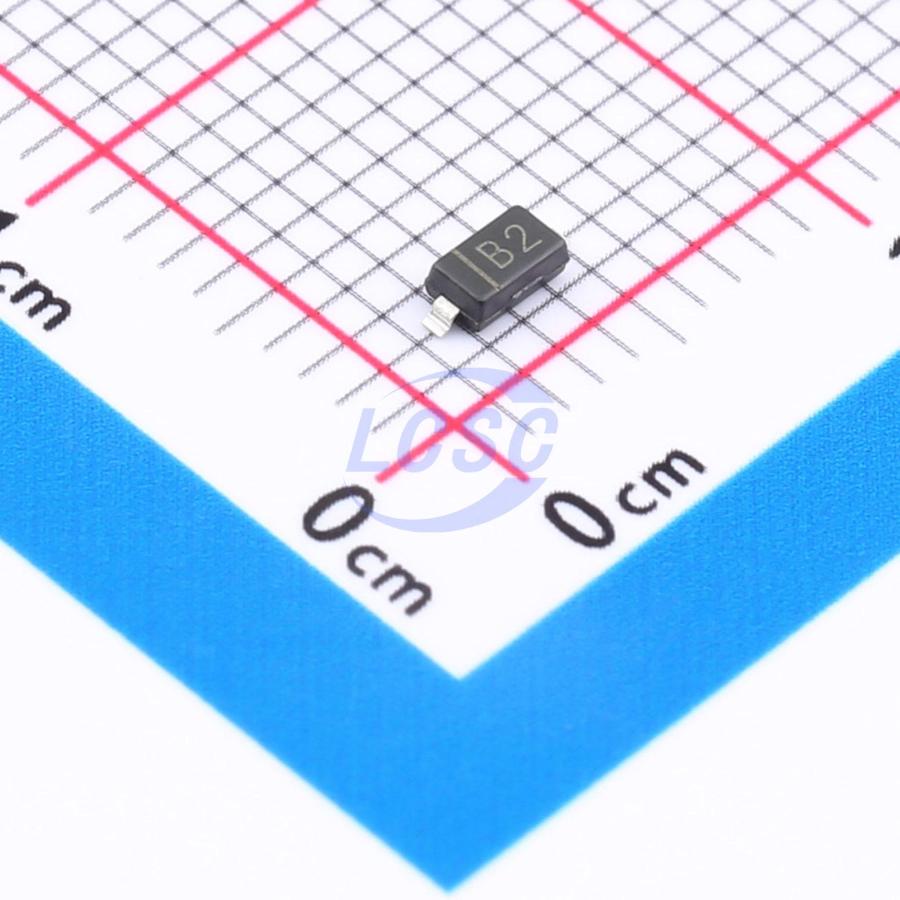

MBR0520
Diode 20V 0.5A Surface Mount SOD-123
SOD-123ROHS CompliantActive
DIODE SCHOTTKY 20V SOD-123
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- MBR0520
- Store part #
- C5766605
- Package / case
- SOD-123
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C5766605
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹2.88 | ₹57.60 |
| 200+ | ₹2.26 | ₹452.00 |
| 600+ | ₹1.92 | ₹1,152.00 |
| 3,000+ | ₹1.63 | ₹4,890.00 |
| 9,000+ | ₹1.46 | ₹13,140.00 |
| 21,000+ | ₹1.36 | ₹28,560.00 |
20 × ₹2.88
₹57.60
excl. GST
₹67.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MBR0520
₹57.60 for 20 + GST
Specifications
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 20V
- Operating Junction Temperature Range
- -40℃~+125℃
- Voltage - Forward(Vf@If)
- 450mV@500mA
- Non-Repetitive Peak Forward Surge Current
- 5.5A
- Current - Rectified
- 500mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.033 g
Overview
Key features
- Average rectified output current: IO = 500 mA
- Power dissipation: 410 mW
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MBR0530-HXY#C52754439HXY MOSFET · SOD-123 | HXY MOSFET | SOD-123 | 420 | ₹5.00 · 420 in stock | View |
 | MBR0540-HXY#C52754441HXY MOSFET · SOD-123 | HXY MOSFET | SOD-123 | 80 | ₹2.92 · 80 in stock | View |
 | NRVB0540T1G-HXY#C52754442HXY MOSFET · SOD-123 | HXY MOSFET | SOD-123 | 175 | ₹14.83 · 175 in stock | View |
 | STPS0540Z-HXY#C52754443HXY MOSFET · SOD-123 | HXY MOSFET | SOD-123 | 170 | ₹7.42 · 170 in stock | View |
 | CMHSH5-4-HXY#C52754569HXY MOSFET · SOD-123 | HXY MOSFET | SOD-123 | 40 | ₹31.00 · 40 in stock | View |
