VISHAYDatasheet (PDF)

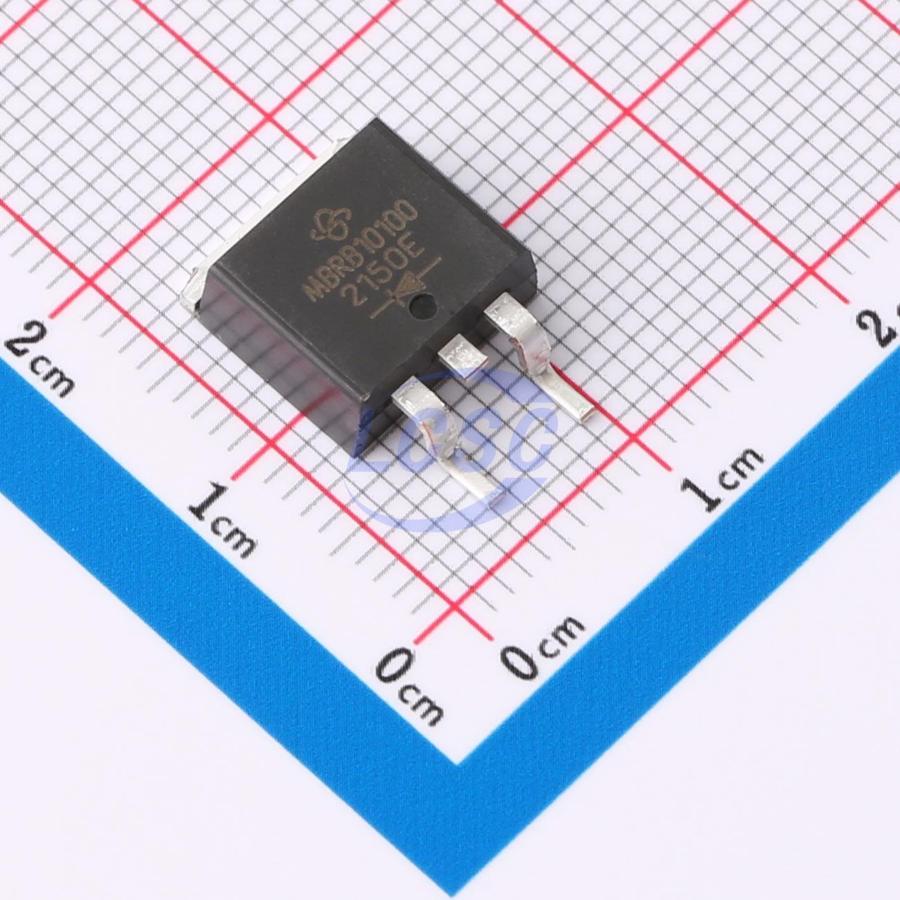

MBRB10100-E3/8W
Diode 1 Independent 100V 10A Surface Mount TO-263AB(D2PAK)
TO-263AB(D2PAK)ROHS3 CompliantActive
DIODE SCHOTTKY 100V TO-263AB(D2PAK)
- Manufacturer
- VISHAY
- Manufacturer part #
- MBRB10100-E3/8W
- Store part #
- C3009869
- Package / case
- TO-263AB(D2PAK)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
244 in stock
#C3009869
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹155.80 | ₹155.80 |
| 10+ | ₹128.15 | ₹1,281.50 |
| 30+ | ₹112.80 | ₹3,384.00 |
| 100+ | ₹95.52 | ₹9,552.00 |
| 500+ | ₹83.20 | ₹41,600.00 |
| 800+ | ₹79.74 | ₹63,792.00 |
1 × ₹155.80
₹155.80
excl. GST
₹183.84 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 800 per reel
MBRB10100-E3/8W
₹155.80 for 1 + GST
Specifications
- Operating Junction Temperature Range
- -65℃~+150℃
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 100V
- Voltage - Forward(Vf@If)
- 800mV@10A
- Reverse Leakage Current (Ir)
- 100uA@100V
- Current - Rectified
- 10A
- Non-Repetitive Peak Forward Surge Current
- 150A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.97 g
Overview
Applications
- For use in high frequency rectifier of switching mode power supplies, freewheeling diodes, DC/DC converters, or polarity protection application.
Key features
- Trench MOS Schottky technology
- Lower power losses, high efficiency
- Low forward voltage drop
- High forward surge capability
- High frequency operation
- Meets MSL level 1, per J-STD-020, LF maximum peak of 245℃
- Material categorization: for definitions of compliance please see www.vishay.com/doc?99912
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MBRB10100-M3/8W#C5250087VISHAY · TO-263AB(D2PAK) | VISHAY | TO-263AB(D2PAK) | 22 | ₹124.76 · 22 in stock | View |
 | VB30100S-E3/8W#C2983560VISHAY · TO-263AB(D2PAK) | VISHAY | TO-263AB(D2PAK) | 735 | ₹231.96 · 735 in stock | View |
 | STPS20M100SG-TR#C969989ST · D2PAK | ST | D2PAK | 450 | ₹119.40 · 450 in stock | View |
 | HBR30L150YD#C7428013NH · TO-263 | NH | TO-263 | 635 | ₹43.06 · 635 in stock | View |
 | VB20150S-E3/8W#C5989789VISHAY · TO-263AB(D2PAK) | VISHAY | TO-263AB(D2PAK) | 32 | ₹251.05 · 32 in stock | View |
