VISHAYDatasheet (PDF)

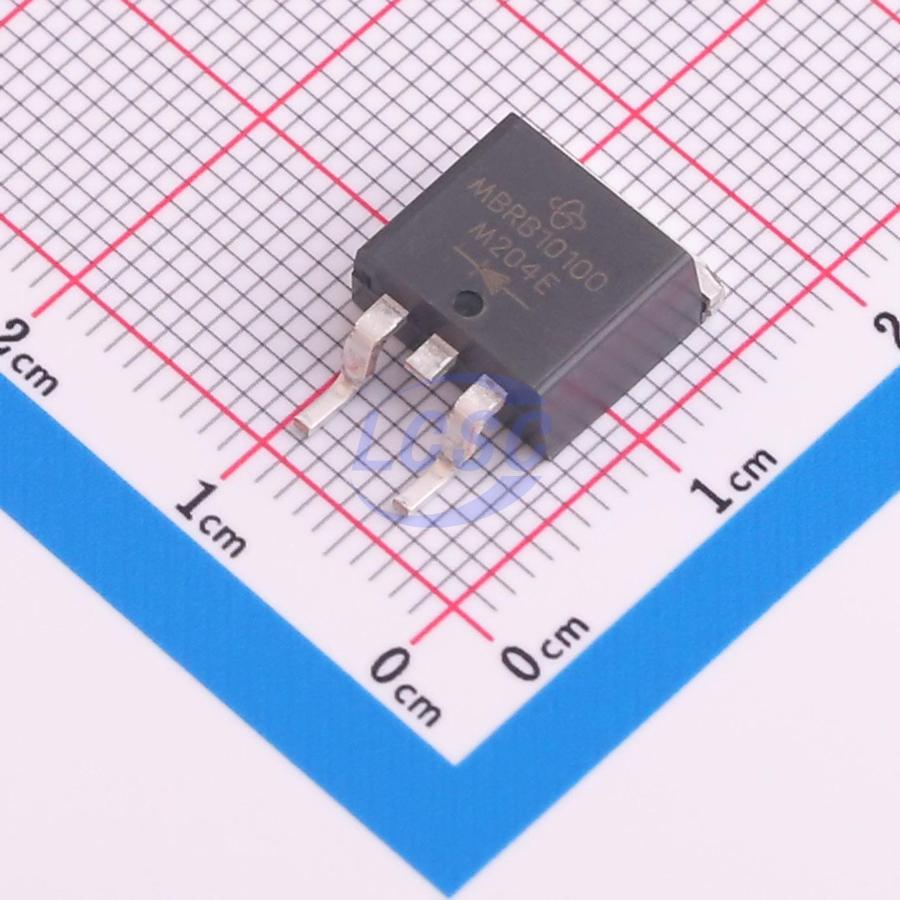

MBRB10100-M3/8W
Diode 1 Independent 100V 10A Surface Mount TO-263AB(D2PAK)
TO-263AB(D2PAK)ROHS CompliantActive
DIODE SCHOTTKY 100V TO-263AB(D2PAK)
- Manufacturer
- VISHAY
- Manufacturer part #
- MBRB10100-M3/8W
- Store part #
- C5250087
- Package / case
- TO-263AB(D2PAK)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
22 in stock
#C5250087
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹124.76 | ₹124.76 |
| 10+ | ₹103.19 | ₹1,031.90 |
| 30+ | ₹92.42 | ₹2,772.60 |
| 100+ | ₹81.64 | ₹8,164.00 |
| 500+ | ₹67.27 | ₹33,635.00 |
| 1,000+ | ₹63.87 | ₹63,870.00 |
1 × ₹124.76
₹124.76
excl. GST
₹147.22 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 8,000 per reel
MBRB10100-M3/8W
₹124.76 for 1 + GST
Specifications
- Operating Junction Temperature Range
- -65℃~+150℃
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 100V
- Voltage - Forward(Vf@If)
- 800mV@10A
- Reverse Leakage Current (Ir)
- 100uA@100V
- Non-Repetitive Peak Forward Surge Current
- 150A
- Current - Rectified
- 10A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 8,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.95 g
Overview
Applications
- For use in high frequency rectifier of switching mode power supplies, freewheeling diodes, DC/DC converters, or polarity protection application.
Key features
- Trench MOS Schottky technology
- Lower power losses, high efficiency
- Low forward voltage drop
- High forward surge capability
- High frequency operation
- Meets MSL level 1, per J-STD-020, LF maximum peak of 245℃
- Material categorization: for definitions of compliance please see www.vishay.com/doc?299912
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MBRB10100-E3/8W#C3009869VISHAY · TO-263AB(D2PAK) | VISHAY | TO-263AB(D2PAK) | 244 | ₹155.80 · 244 in stock | View |
 | VB30100S-E3/8W#C2983560VISHAY · TO-263AB(D2PAK) | VISHAY | TO-263AB(D2PAK) | 735 | ₹231.96 · 735 in stock | View |
 | STPS20M100SG-TR#C969989ST · D2PAK | ST | D2PAK | 450 | ₹119.40 · 450 in stock | View |
 | HBR30L150YD#C7428013NH · TO-263 | NH | TO-263 | 635 | ₹43.06 · 635 in stock | View |
 | VB20150S-E3/8W#C5989789VISHAY · TO-263AB(D2PAK) | VISHAY | TO-263AB(D2PAK) | 32 | ₹251.05 · 32 in stock | View |
