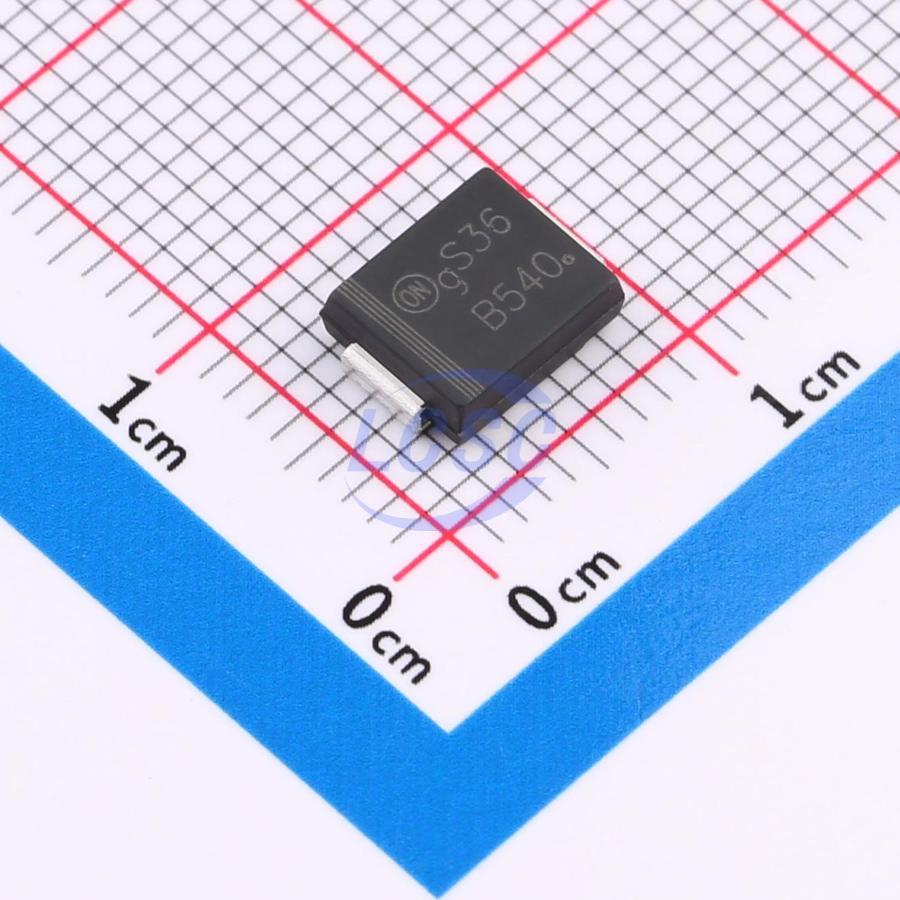

MBRS540T3G
Diode 40V 5A SMC(DO-214AB)
SMC(DO-214AB)ROHS3 CompliantActive
DIODE SCHOTTKY 40V SMC(DO-214AB)
- Manufacturer
- onsemi
- Manufacturer part #
- MBRS540T3G
- Store part #
- C31849
- Package / case
- SMC(DO-214AB)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
12,145 in stock
#C31849
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.04 | ₹165.20 |
| 50+ | ₹25.88 | ₹1,294.00 |
| 150+ | ₹21.62 | ₹3,243.00 |
| 500+ | ₹17.79 | ₹8,895.00 |
| 2,500+ | ₹16.09 | ₹40,225.00 |
| 5,000+ | ₹15.06 | ₹75,300.00 |
5 × ₹33.04
₹165.20
excl. GST
₹194.94 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MBRS540T3G
₹165.20 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 40V
- Voltage - Forward(Vf@If)
- 500mV@5A
- Reverse Leakage Current (Ir)
- 300uA@40V
- Non-Repetitive Peak Forward Surge Current
- 190A
- Current - Rectified
- 5A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.57 g
Overview
The MBRSS40T3 employs the Schottky Barrier principle in a large area metal- to- silicon power diode. State- of- the- art geometry features epitaxial construction with oxide passivation and metal overlay contact. Ideally suited for low voltage, high frequency rectification, or as free wheeling and polarity protection diodes in surface mount applications where compact size and weight are critical to the system.
Key features
- Small Compact Surface Mountable Package with J- Bend Leads
- Rectangular Package for Automated Handling
- Highly Stable Oxide Passivated Junction
- Excellent Ability to Withstand Reverse Avalanche Energy Transients
- Guard- Ring for Stress Protection
- NRVB Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC- Q101 Qualified and PPAP Capable
- These are PB- Free Packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | B540C-13-F#C72264DIODES · SMC(DO-214AB) | DIODES | SMC(DO-214AB) | 44,355 | ₹30.85 · 44,355 in stock | View |
 | MBRS540T3G(MS)#C22399265MSKSEMI · SMC | MSKSEMI | SMC | 1,590 | ₹22.13 · 1,590 in stock | View |
 | NRVBS540T3G#C462936onsemi · SMC | onsemi | SMC | 3,017 | ₹42.16 · 3,017 in stock | View |
 | SSC54-E3/57T#C222482VISHAY · SMC(DO-214AB) | VISHAY | SMC(DO-214AB) | 3,355 | ₹47.69 · 3,355 in stock | View |
 | SSC54HE3_A/H#C3757696VISHAY · DO-214AB(SMC) | VISHAY | DO-214AB(SMC) | 110 | ₹43.75 · 110 in stock | View |
