VISHAYDatasheet (PDF)

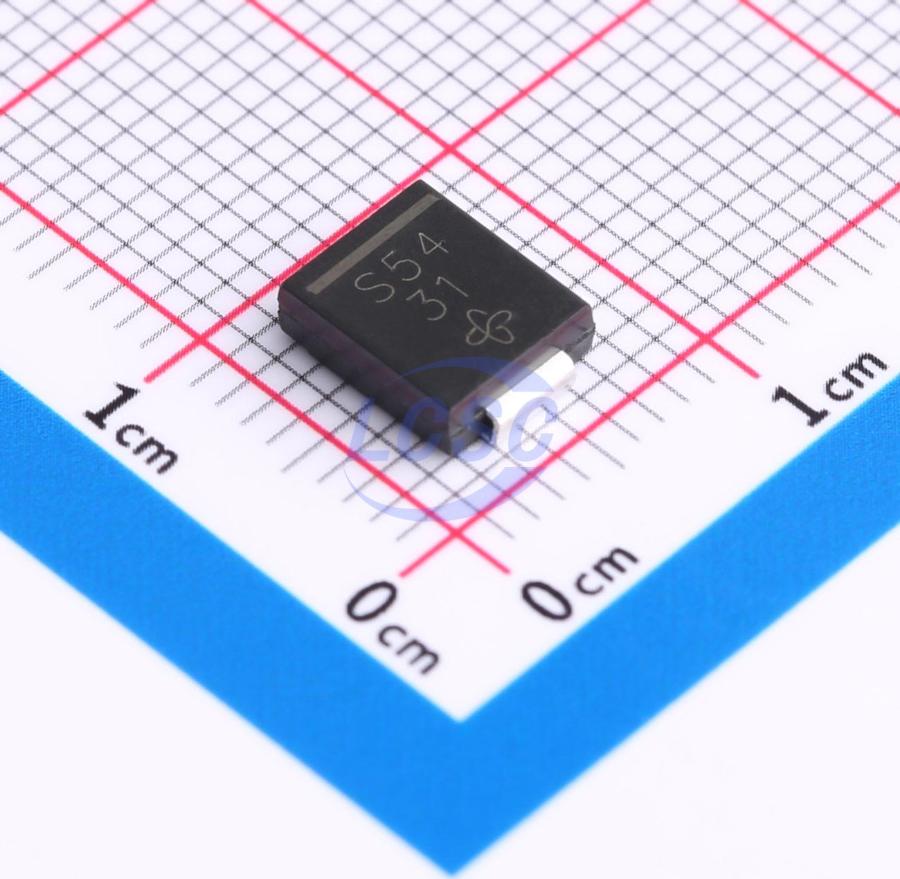

SSC54HE3_A/H
Diode 1 Independent 40V 5A Surface Mount DO-214AB(SMC)
DO-214AB(SMC)ROHS3 CompliantActive
DIODE SCHOTTKY 40V DO-214AB(SMC)
- Manufacturer
- VISHAY
- Manufacturer part #
- SSC54HE3_A/H
- Store part #
- C3757696
- Package / case
- DO-214AB(SMC)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
110 in stock
#C3757696
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹43.75 | ₹218.75 |
| 50+ | ₹34.82 | ₹1,741.00 |
| 150+ | ₹31.00 | ₹4,650.00 |
| 850+ | ₹26.22 | ₹22,287.00 |
| 2,550+ | ₹24.09 | ₹61,429.50 |
| 5,100+ | ₹22.82 | ₹1,16,382.00 |
5 × ₹43.75
₹218.75
excl. GST
₹258.13 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 850 per reel
SSC54HE3_A/H
₹218.75 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 40V
- Voltage - Forward(Vf@If)
- 490mV@5A
- Reverse Leakage Current (Ir)
- 500uA@40V
- Non-Repetitive Peak Forward Surge Current
- 175A
- Current - Rectified
- 5A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 850 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.37 g
Overview
Applications
- For use in low voltage high frequency inverters, freewheeling, DC/DC converters, and polarity protection applications.
Key features
- Low profile package
- Ideal for automated placement
- Guardring for overvoltage protection
- Low power losses, high efficiency
- Very low forward voltage drop
- High surge capability
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃
- AEC-Q101 qualified available
- Material categorization: for definitions of compliance please see www.vishay.com/doc?99912
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SSC54-E3/57T#C222482VISHAY · SMC(DO-214AB) | VISHAY | SMC(DO-214AB) | 3,355 | ₹47.69 · 3,355 in stock | View |
 | SSC54-M3/57T#C3758659VISHAY · DO-214AB(SMC) | VISHAY | DO-214AB(SMC) | 106 | ₹110.92 · 106 in stock | View |
 | B540C#C5338484SUNMATE Elec · SMC | SUNMATE Elec | SMC | 13,200 | ₹17.58 · 13,200 in stock | View |
 | SK56L_R1_00001#C294834PANJIT · DO-214AB(SMC) | PANJIT | DO-214AB(SMC) | 995 | ₹32.41 · 995 in stock | View |
 | SSL56#C5764114YFW · SMC | YFW | SMC | 2,960 | ₹24.79 · 2,960 in stock | View |
