VISHAYDatasheet (PDF)

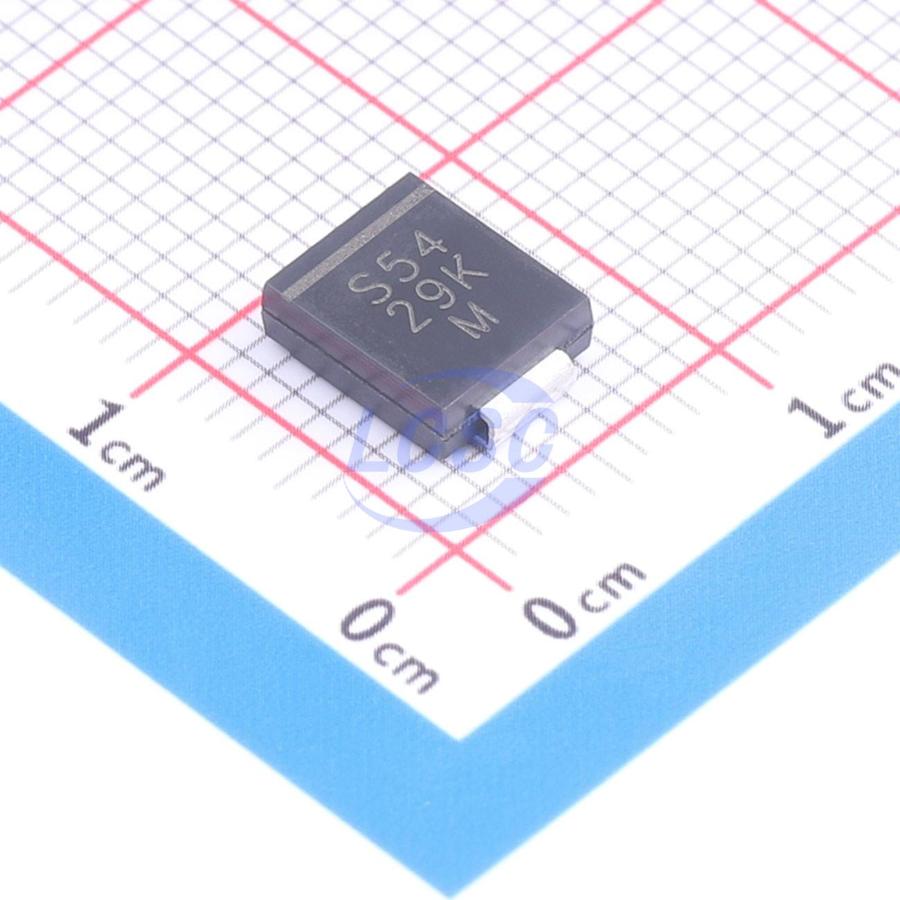

SSC54-M3/57T
1 Independent 40V 490mV@5A 5A DO-214AB(SMC) Single Diodes RoHS
DO-214AB(SMC)ROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- SSC54-M3/57T
- Store part #
- C3758659
- Package / case
- DO-214AB(SMC)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
106 in stock
#C3758659
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹110.92 | ₹110.92 |
| 10+ | ₹108.98 | ₹1,089.80 |
| 30+ | ₹107.69 | ₹3,230.70 |
| 100+ | ₹106.40 | ₹10,640.00 |
1 × ₹110.92
₹110.92
excl. GST
₹130.89 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 850 per reel
SSC54-M3/57T
₹110.92 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 40V
- Voltage - Forward(Vf@If)
- 490mV@5A
- Reverse Leakage Current (Ir)
- 500uA@40V
- Non-Repetitive Peak Forward Surge Current
- 175A
- Current - Rectified
- 5A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 850 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.315 g
Overview
Applications
- For use in low-voltage high-frequency inverters, freewheeling, DC/DC converters, and polarity protection applications.
Key features
- Low-profile package
- Suitable for automatic placement
- Guard ring for overvoltage protection
- Low power dissipation, high efficiency
- Extremely low forward voltage drop
- High surge capability
- MSL Level 1 per J-STD-020, LF max peak 260°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SSC54-E3/57T#C222482VISHAY · SMC(DO-214AB) | VISHAY | SMC(DO-214AB) | 3,355 | ₹47.69 · 3,355 in stock | View |
 | SSC54HE3_A/H#C3757696VISHAY · DO-214AB(SMC) | VISHAY | DO-214AB(SMC) | 110 | ₹43.75 · 110 in stock | View |
 | B540C#C5338484SUNMATE Elec · SMC | SUNMATE Elec | SMC | 13,200 | ₹17.58 · 13,200 in stock | View |
 | SK56L_R1_00001#C294834PANJIT · DO-214AB(SMC) | PANJIT | DO-214AB(SMC) | 995 | ₹32.41 · 995 in stock | View |
 | SSL56#C5764114YFW · SMC | YFW | SMC | 2,960 | ₹24.79 · 2,960 in stock | View |
