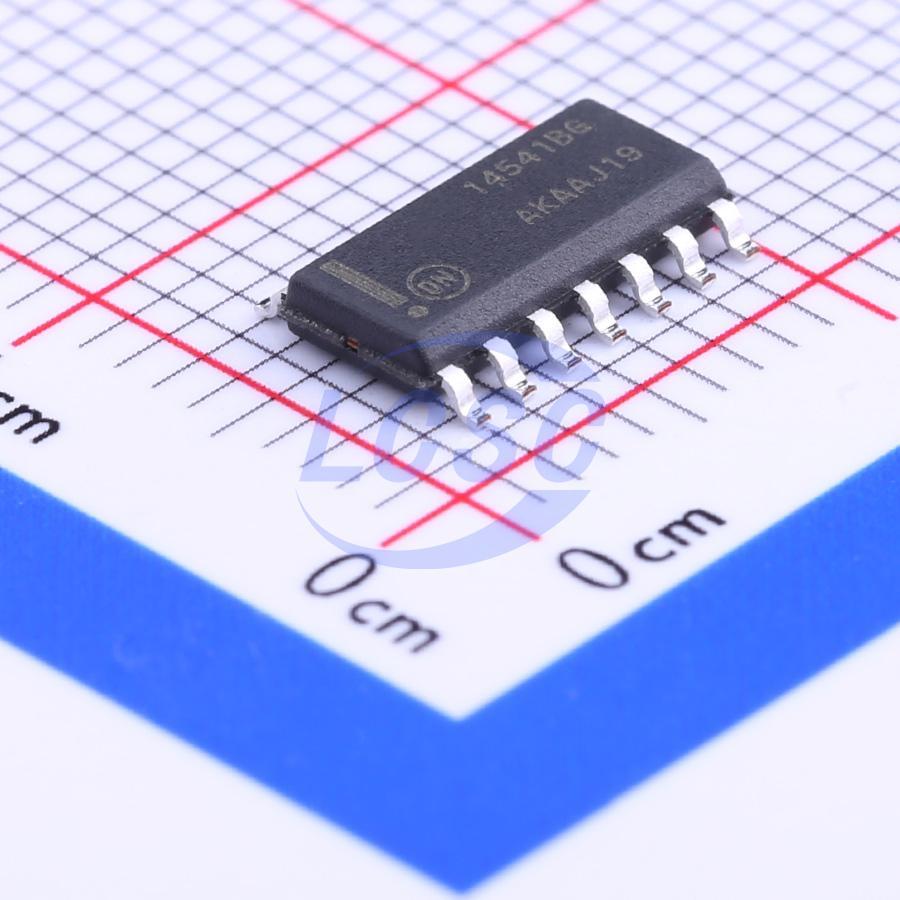

MC14541BDR2G

Key features

• Available outputs: 2⁸, 2¹⁰, 2¹³, or 2¹⁶
• Increments on positive-edge clock transitions
• Built-in low-power RC oscillator ±2
• Oscillator can be bypassed if an external clock is available (apply external clock to pin 3)
• External master reset fully independent of auto-reset operation; functions as a 2ⁿ frequency divider or single-shot conversion timer
• Q/Q̄ selection provides output logic level flexibility
• Reset (auto or master reset) disables oscillator during reset to provide zero active power dissipation
• Clock conditioning circuitry allows operation with very slow clock rise and fall times
• Auto-reset initializes all counters at power-up
• Supply voltage range: 3.0 Vdc to 18 Vdc with auto-reset disabled (pin 5 = VDD); 8.5 Vdc to 18 Vdc with auto-reset enabled (pin 5 = VSS)
• NLV prefix for automotive and other applications requiring unique site and control change requirements; AEC-Q100 qualified and PPAP capable
• These devices are lead-free and RoHS compliant
